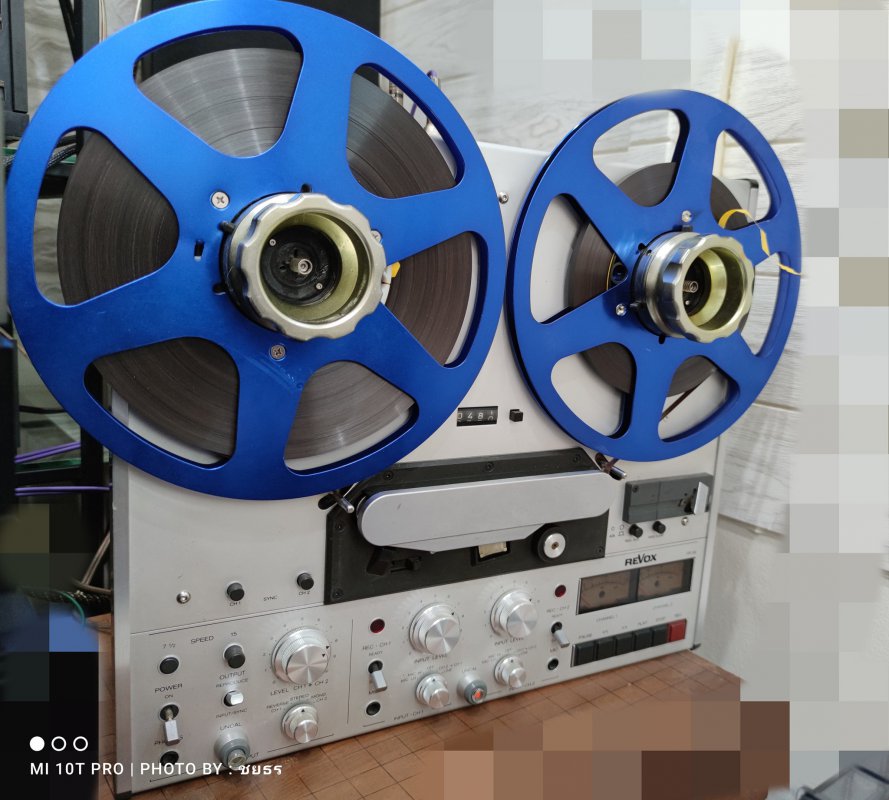

ขายเครื่องเล่นเทปรีล REVOX PR99 รุ่น Top สภาพสวย พร้อมใช้ Made in Germany
ขายเครื่องเล่นเทปรีล REVOX PR99 รุ่น Top สภาพสวย พร้อมใช้ Made in Germany
ข้อมูลเครื่องจากต่างประเทศ....

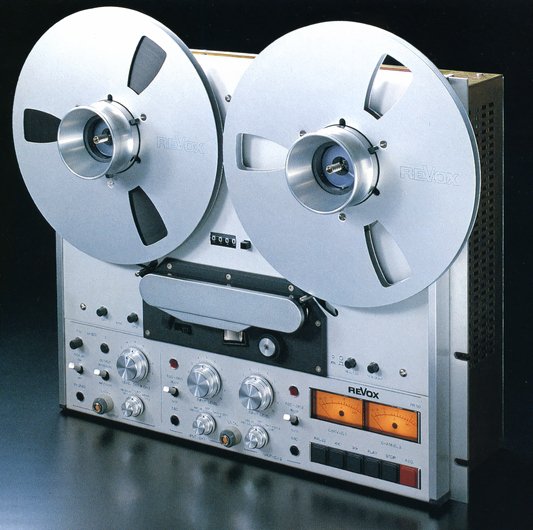

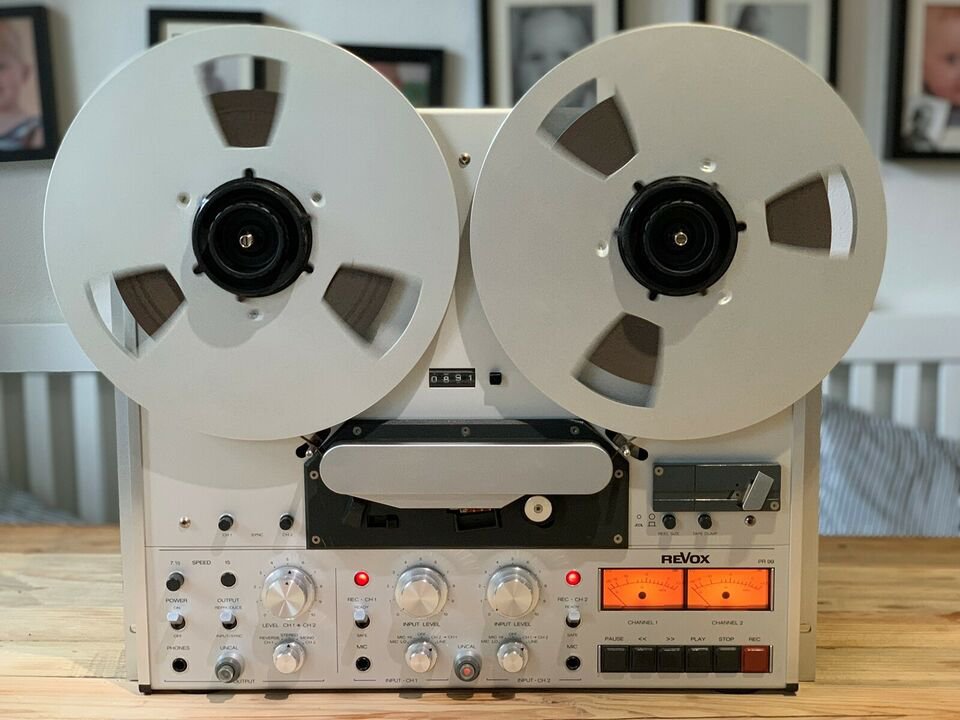

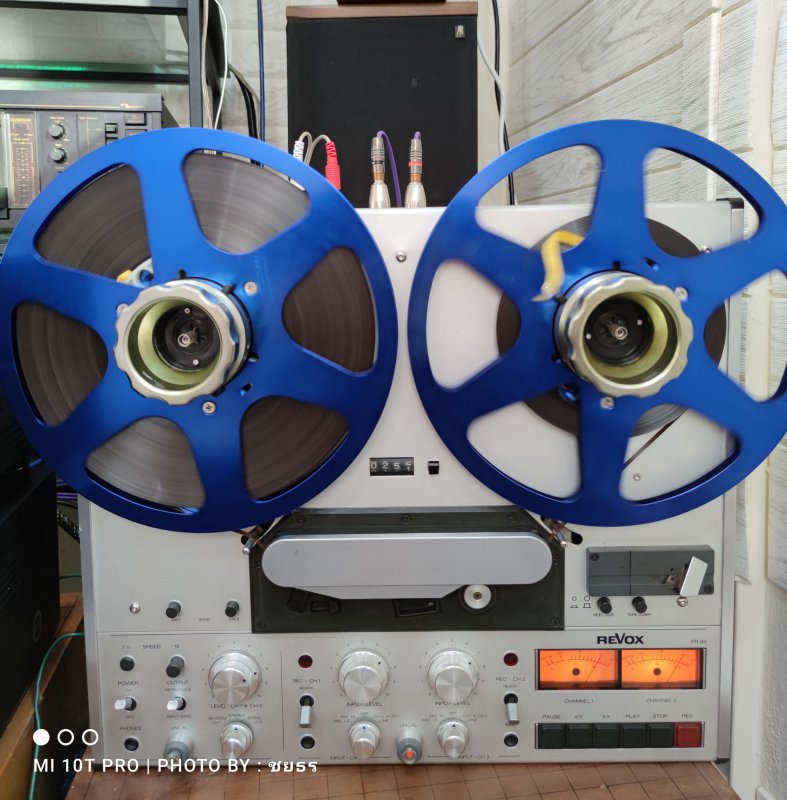

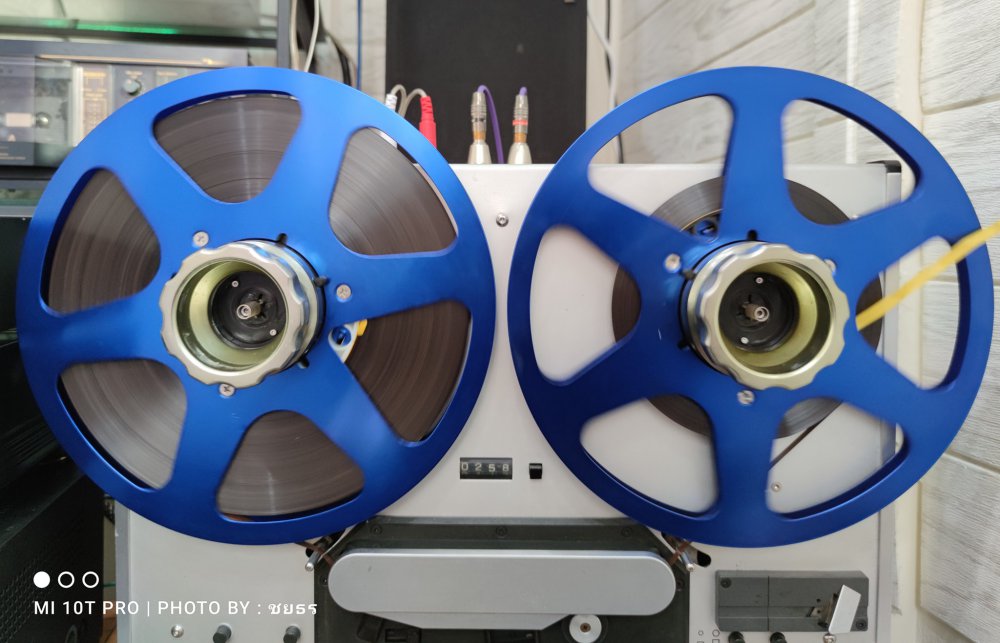

REVOX PR99
(late 1970)
Commentary
An open reel deck developed by putting all the technology of the Studer box into it.
The 3 motor system which used the FG servo outer rotor type DD motor for a capstan is
adopted as a mechanism part.
In addition, the chassis is made of die-cast with excellent durability.

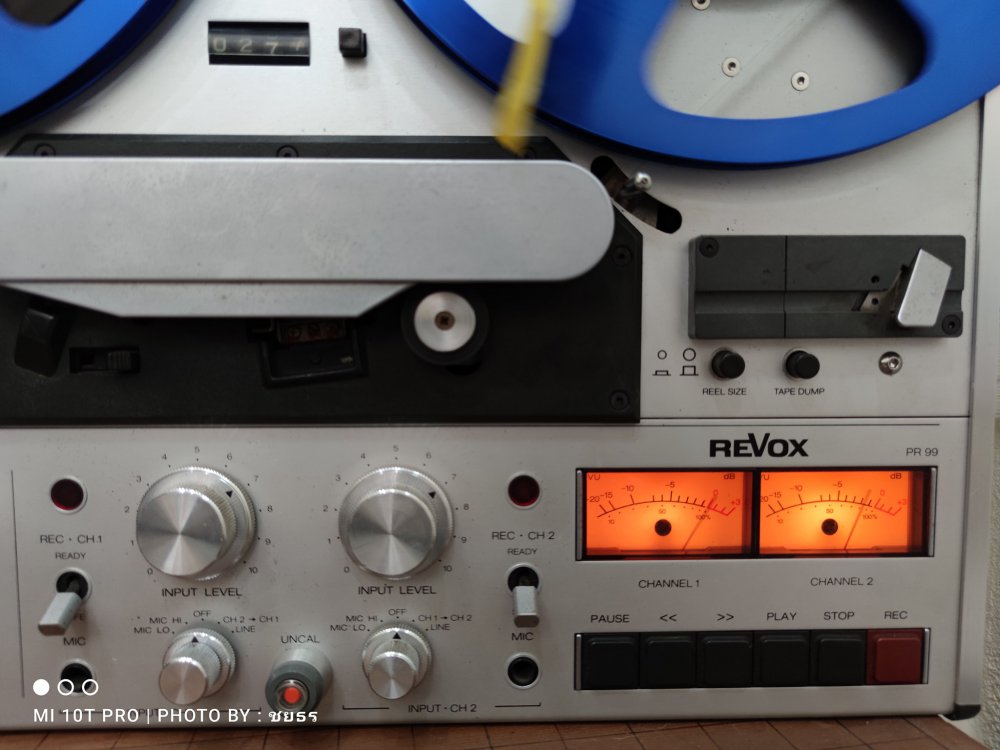

The full logic control by the push button of a light touch is adopted as an operation system.
Designed with well-timed electromagnetic brakes and air-dumped tension arms, it reliably
supports quick mode switching.
The head assembly with 3 heads is made of a large integrated cast, and is designed with
an emphasis on high accuracy and durability.

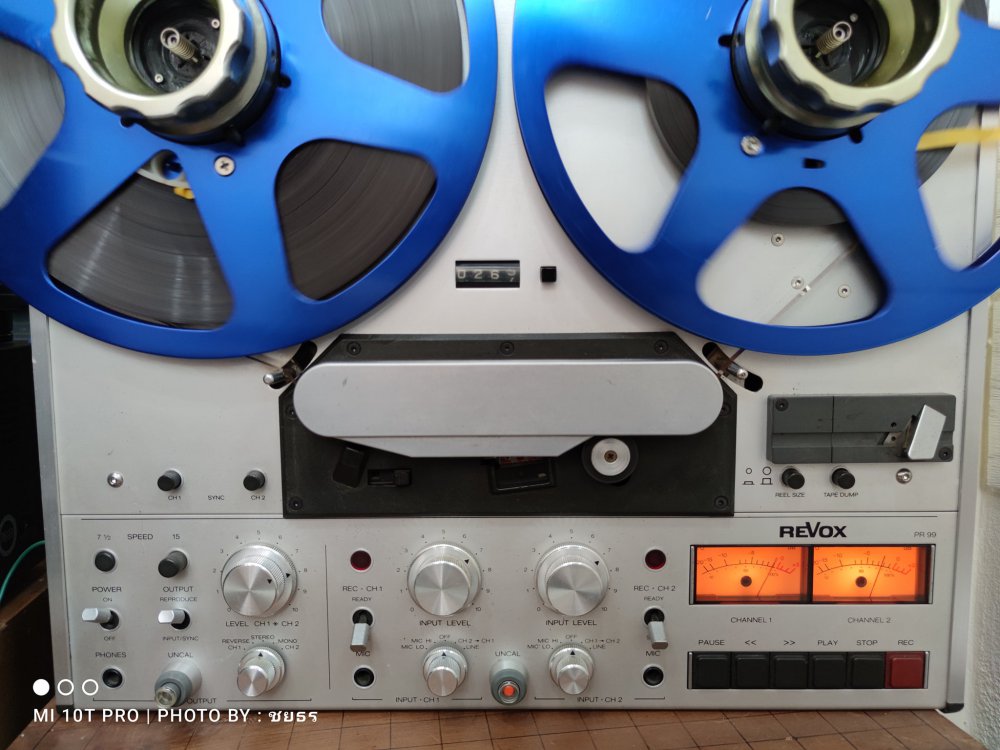

Designed for ease of editing, the thick aluminum front plate has a flat shape.
It is also equipped with a take-up reel stop used when editing tapes and a cue button.

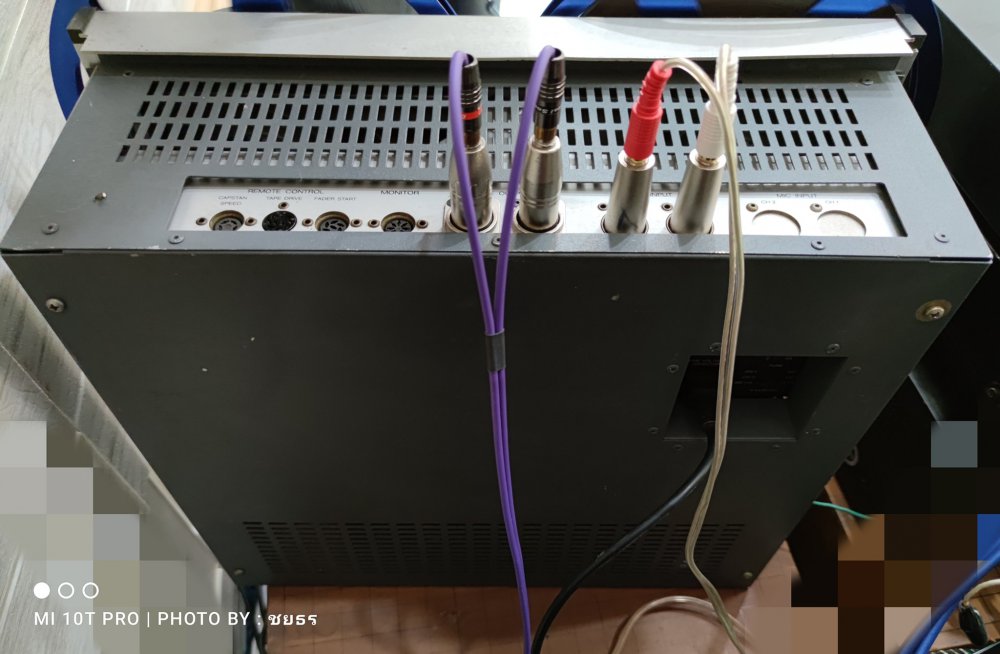

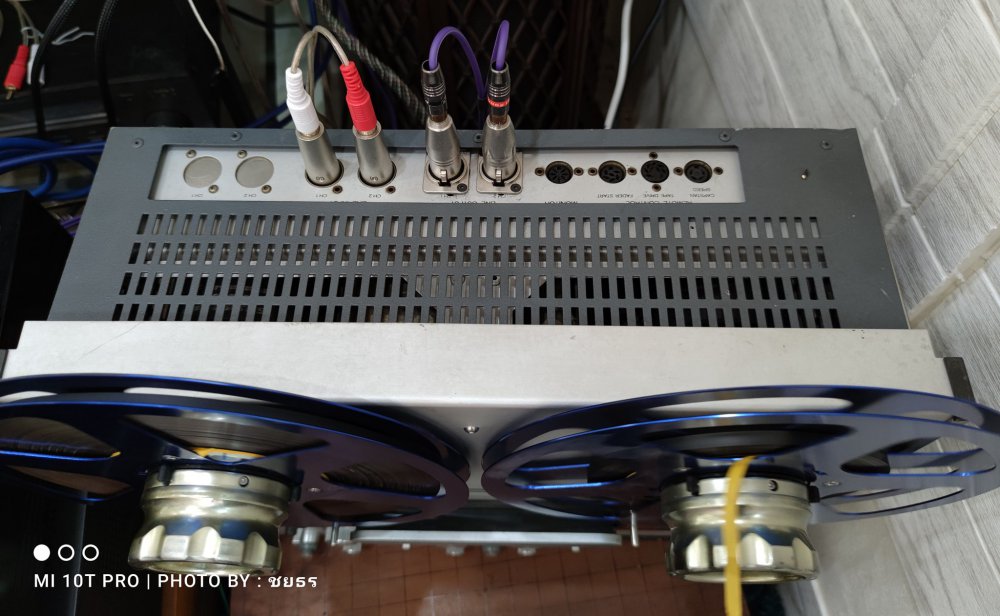

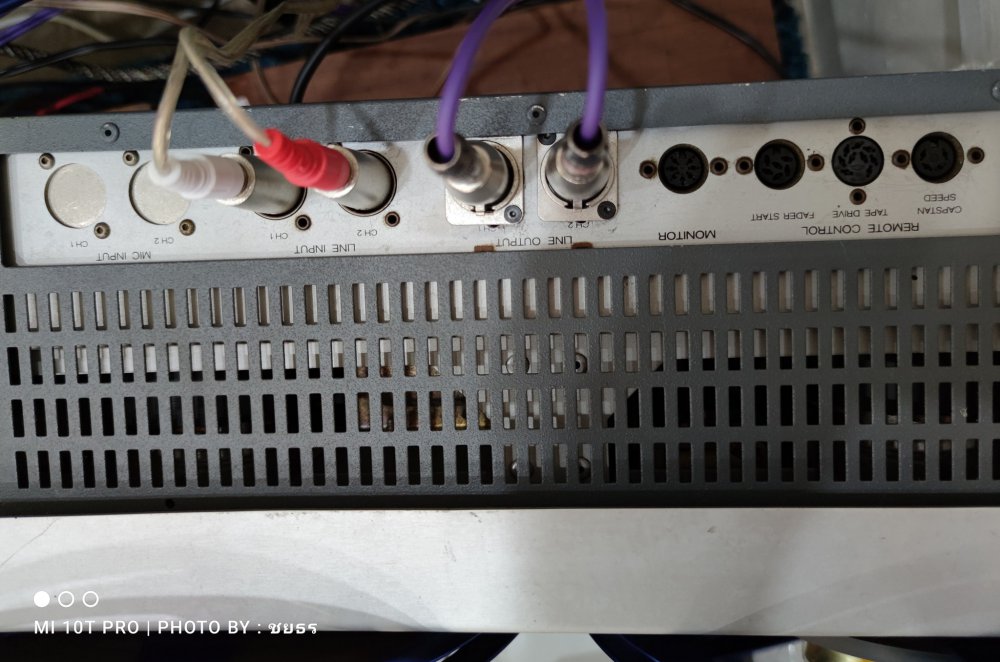

The input / output of the signal system is a balanced type. However, only the microphone input
on the front panel is unbalanced and can be changed to balanced as an option.

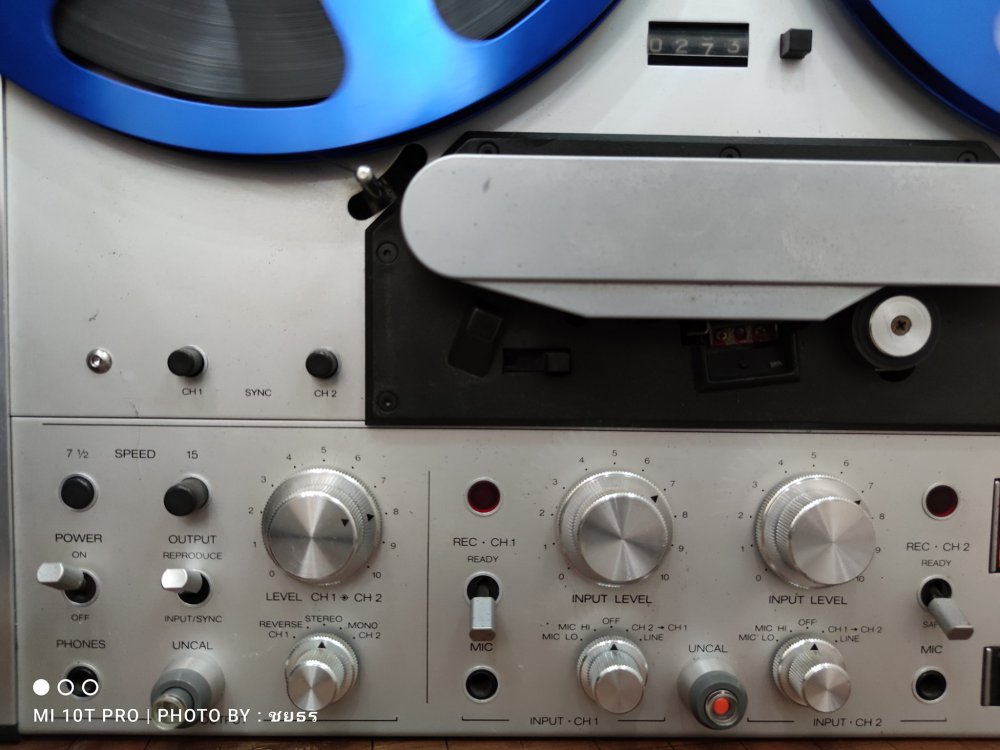

The input and output can be controlled independently by LR, but when the calibration position
is set, the gain of the input / output amplifier is fixed at 0 dB, and it can be used in
combination with other output amplifiers. Even in this state, only the headphone output can
be controlled.
Sound on sound, sound with sound, monaural recording / re-recording, echo recording, etc.
are possible.
Variable speed variable and remote control are possible by adding an optional unit.
Model rating
Model Tape deck
Truck method 2 tracks / 2 channels
Tape speed 19 / 38cm / sec
Head configuration Recording x1
Playback x1
Erase x1
motor For capstan: FG servo AC / DD motor
For reel: AC motor x2
Maximum used reel No. 10
Input (0dB = 0.775V)
Line:
Mic Low:
Mic High: 5kΩ + 4dBm (calibrated)
10dB up (uncalibrated)
(variable maximum +22dBm, 40Hz or more)
100Ω-70dBm (maximum -36dBm)
100Ω-54dBm (maximum +4dBm)
Output (0dB = 0.775V)
Line:
Headphone: 50Ω + 4dBm (calibrated, load 600Ω)
10dB up (uncalibrated)
(variable maximum: + 22dBm 600Ω / + 20dBm 200Ω)
maximum 5.6V
Equalization NAB 50/3180 μs (19 cm 38 cm)
Fast forward time Approximately 120 seconds (No. 10, 830m tape)
Frequency characteristic 30Hz-20kHz +2 -3dB (19cm)
30Hz-22kHz +2 -3dB (38cm)
Wow and flutter 0.08% or less (19 cm)
0.06% or less (38 cm)
Distortion rate 0.6% or less (19cm / 38cm, 0VU)
1.5% or less (+ 6dB)
SN ratio 66dB or more (19cm / 38cm)

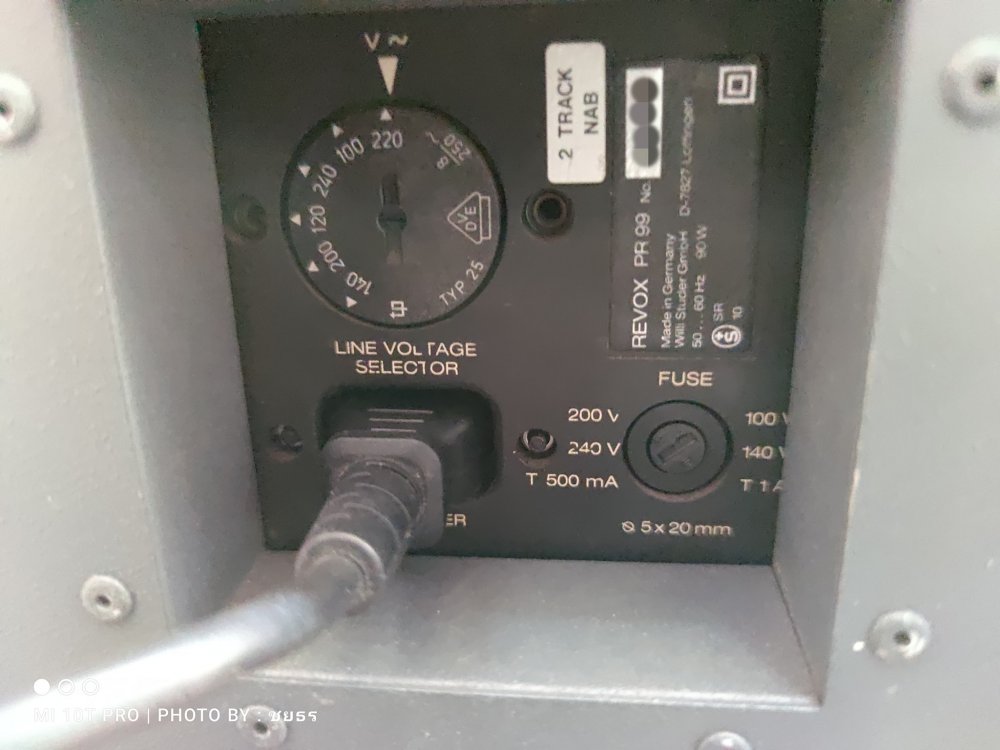

Power supply AC100V, 50Hz / 60Hz
External dimensions ――――
weight 18.5 kg.
