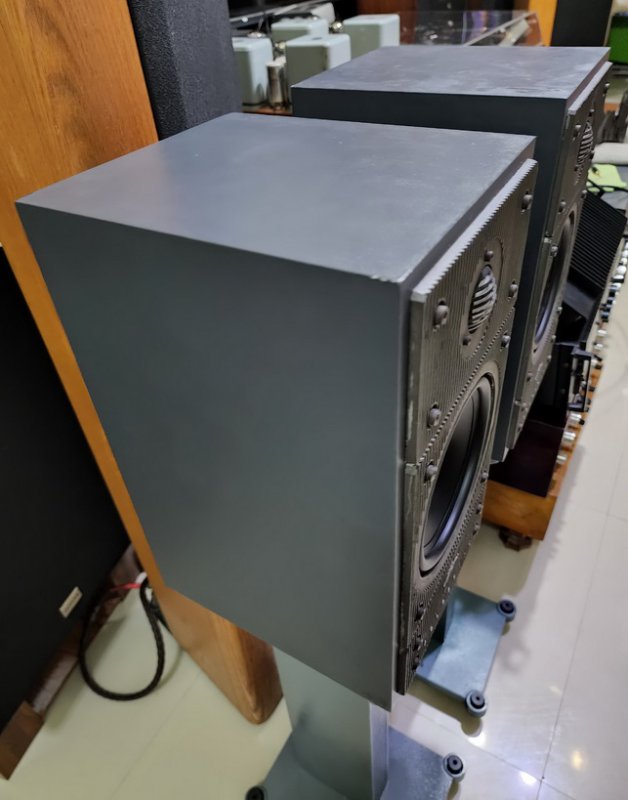

ขายลำโพง Celestion SL-700 พร้อมขาตั้งแท้ ตรงรุ่น Made in England.
ขายลำโพง Celestion SL-700 พร้อมขาตั้งแท้ ตรงรุ่น Made in England.
เสปค-รีวิวร์จากต่างประเทศครับ....
Celestion 700
¥ 590,000
(1 set of 2 units, released in 1990)
Commentary
A speaker system that has been improved based on the SL-700 to improve its perfection.

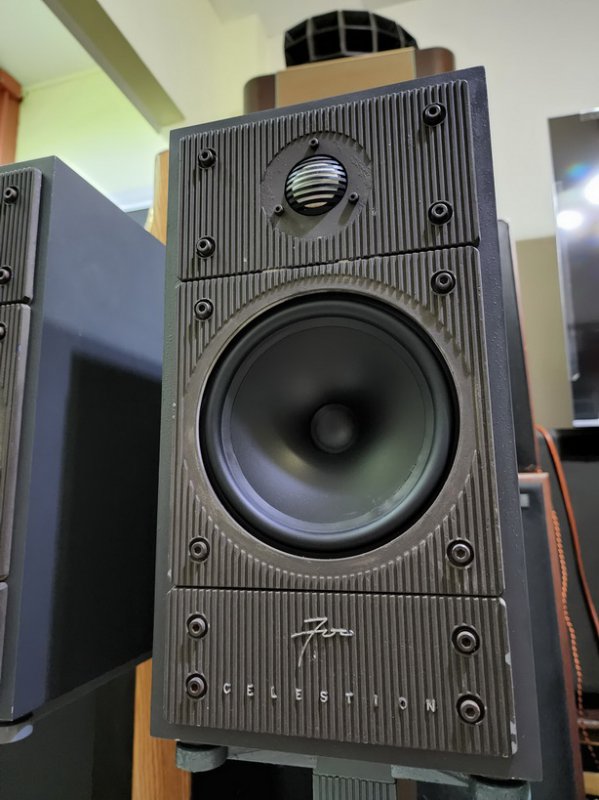

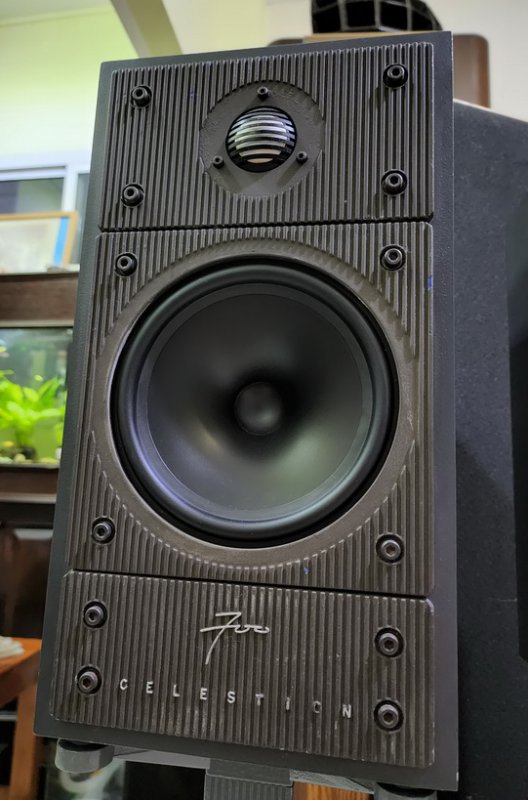

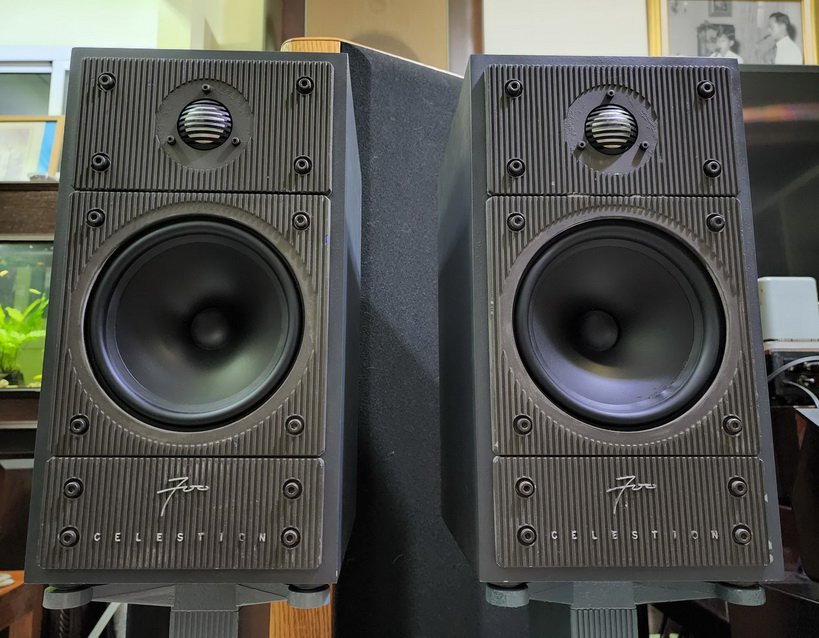

The 15cm cone type Woofer is carried in the low-pass.
This unit adopts a complete one-piece cone system without a dust cap, and the cone material is
a special scientific material based on Celestion's unique know-how. Moreover, the low-pass
response is expanded by the double suspension, and the traveling wave on a cone is cut at
an edge, and the performance of a Woofer is improved.
The 3.5cm dome shape tweeter is carried in the high region.
It is a self-cooling unit with a voice coil wound directly on a 3.5 cm diameter aluminum dome,
improving the growth of the high range.

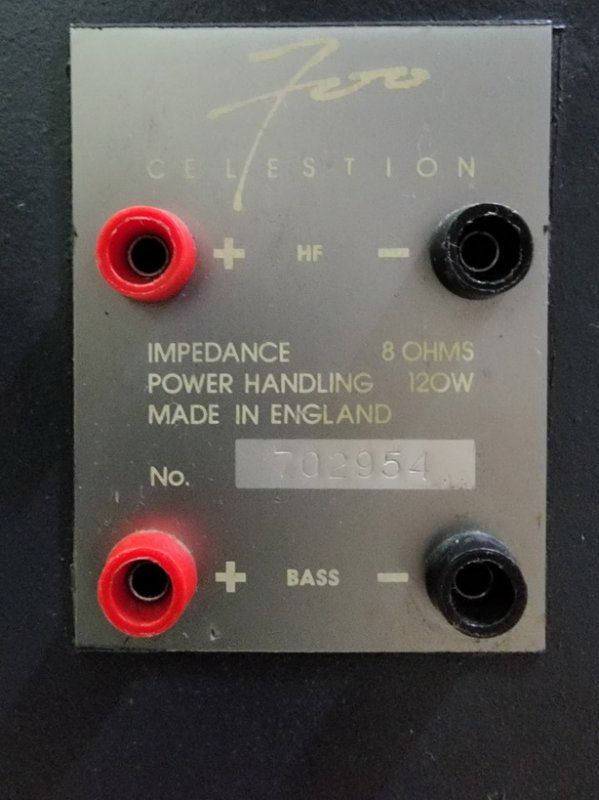

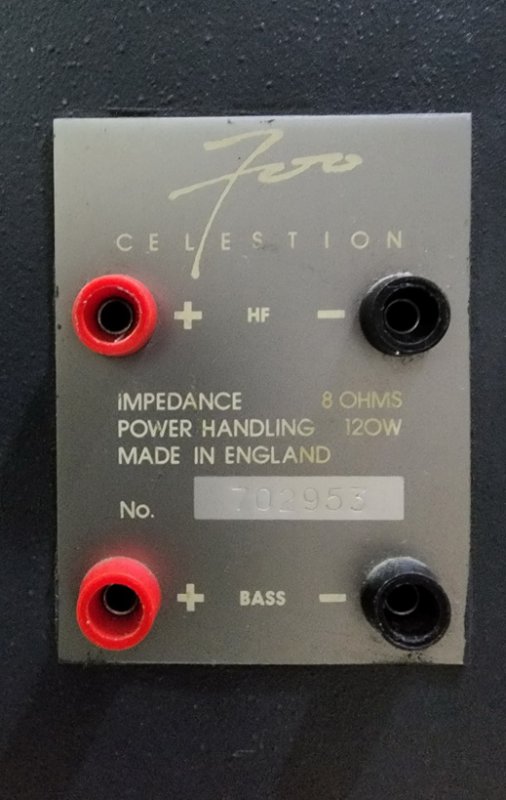

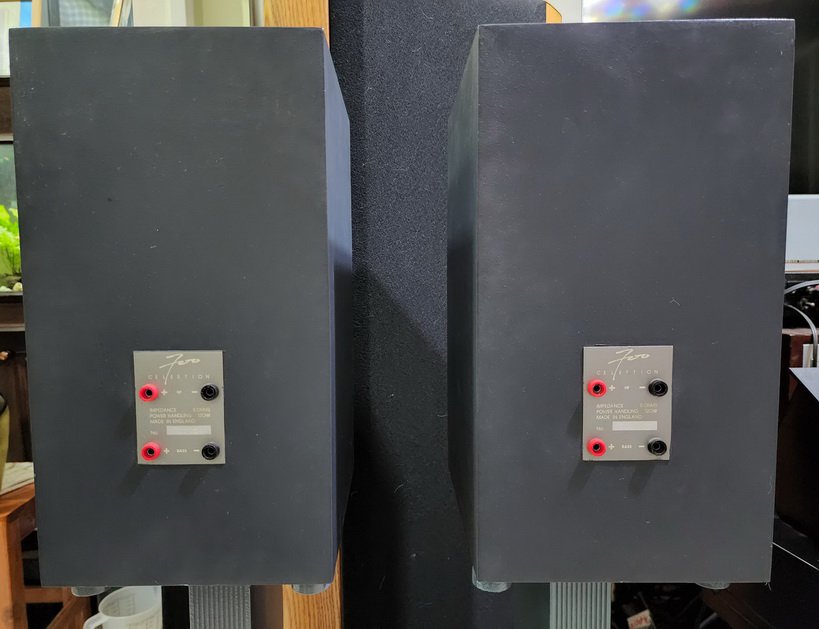

The input terminal has adopted the biwiring system independent for HF and LF.
Moreover, the network part is designed to separate the low-pass / high-pass filter into
two completely independently at 3kHz. Furthermore, the laminated core which wound the
linear crystal copper wire around the square bobbin is used for a choke coil, and the
low-loss Solen capacitor is adopted as a capacitor.
The newly designed air loam cabinet is adopted as an enclosure.
This enclosure has a vertical 8-shaped honeycomb brace to stiffen the side plates
without increasing weight. This has eliminated the resonance and the knock-on effect of
a cabinet.
The crossover board, which is normally mounted on the back panel of a cabinet, is also
floating mounted to reduce resonance.

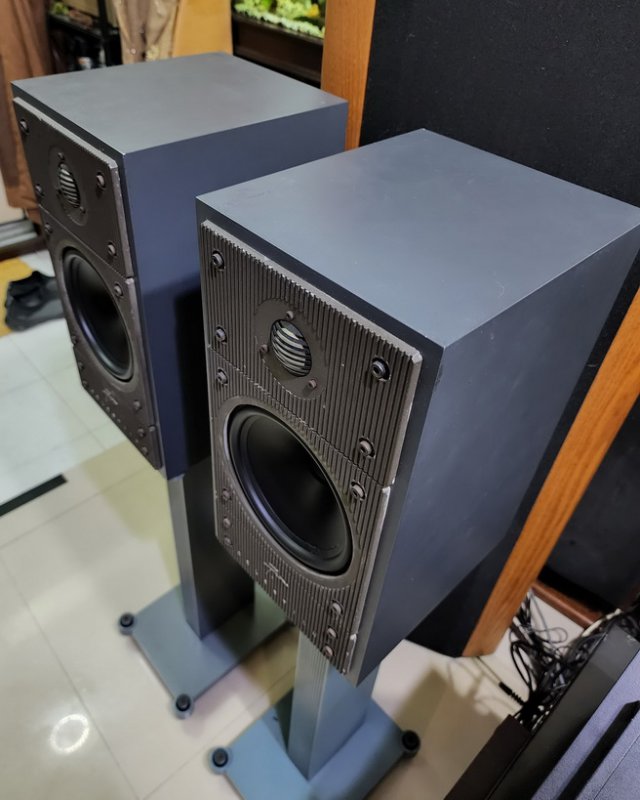

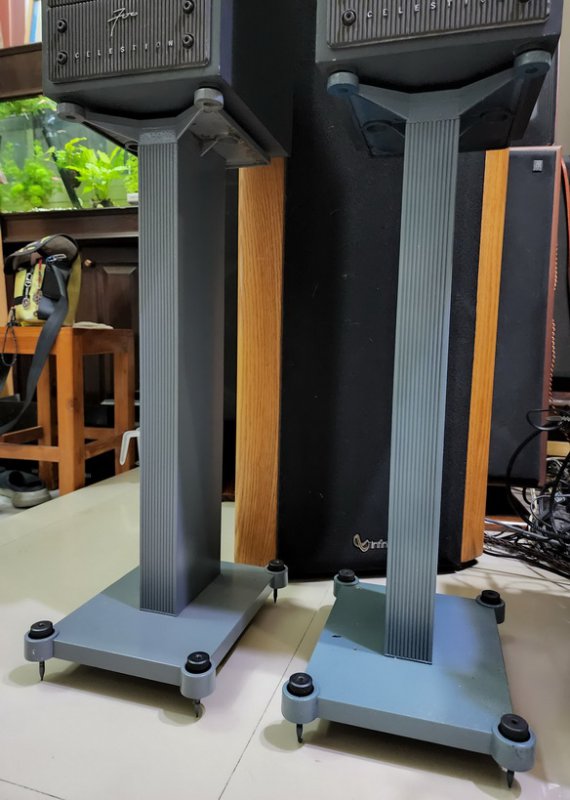

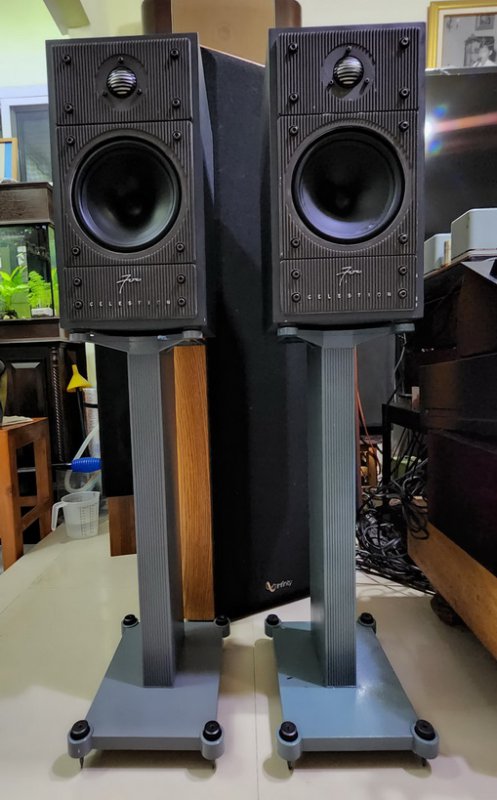

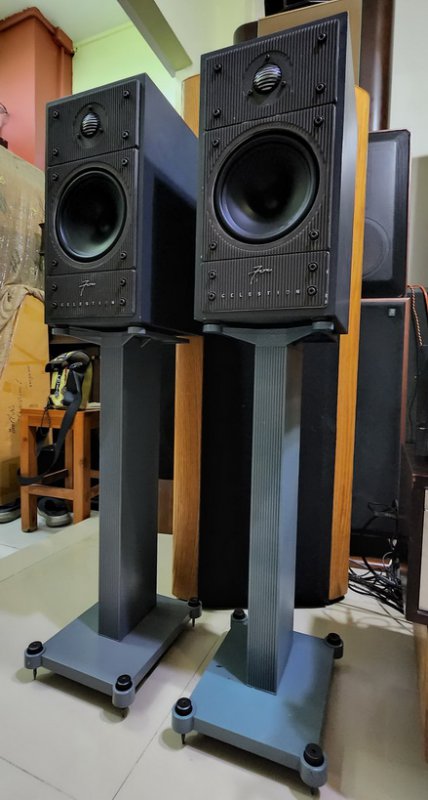

An integrated stand is included as part of the speaker configuration.

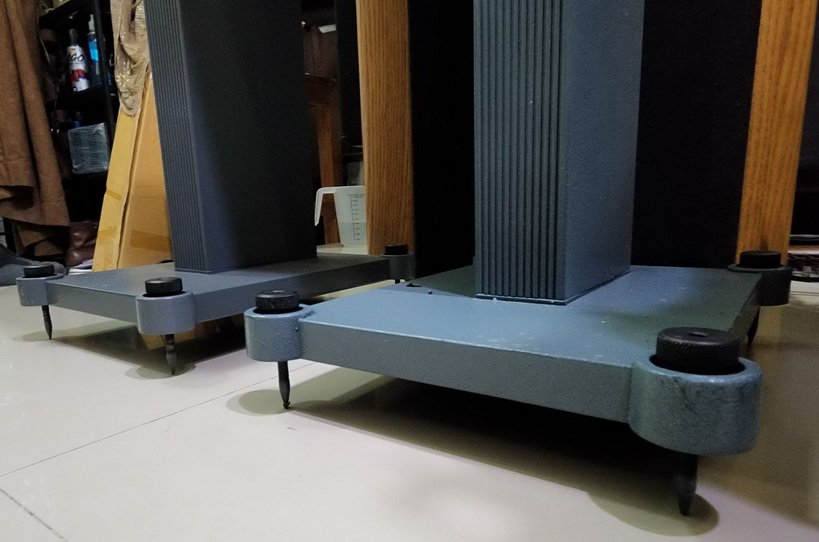

This stand is made of all aluminum and the centerpole uses a drawing material with
a special cross-sectional structure to prevent resonance. In addition, the inside of the pole

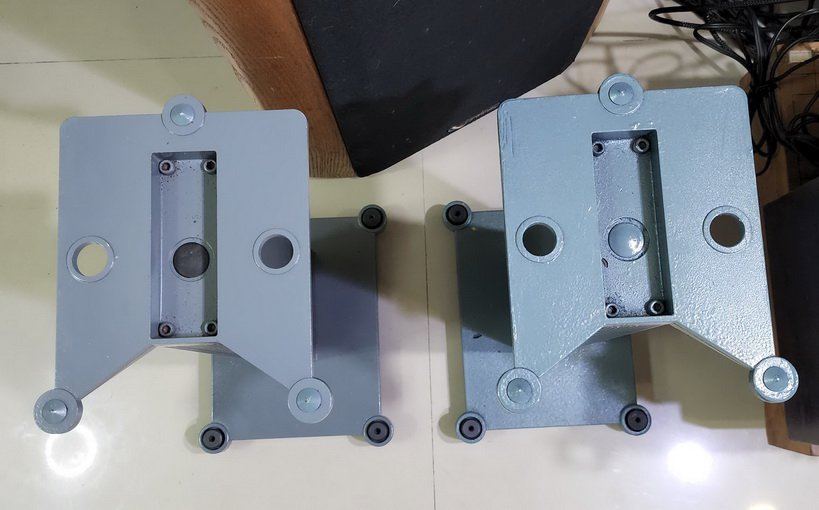

is filled with metal grains and fine stones, and aluminum cast is used for the base and top
plate.
For the coupling between the stand and 700SE, the improvement of the low range is realized
by adopting the three-point instruction by the conical pin. In addition, the stand can be firmly
fixed to the floor with four spikes.
There was a dedicated speaker grill as an option.
Model rating
method 2-way, 2-speaker, sealed system, bookshelf type
Unit used For low frequencies: 15 cm cone type
For high frequencies: 3.5 cm dome type
Frequency characteristic 63Hz-20kHz ± 2dB
Output sound pressure level 82dB SPL / W / m
Impedance 8Ω
Maximum allowable input 200W (peak)
Crossover frequency 3kHz
Cabinet internal volume 12L
External dimensions Width 200 x Height 375 x Depth 235 mm
weight 6.3kg
Sold separately Dedicated speaker grill
Attachment: Dedicated speaker stand
700SE support method With 3-point support conical pin and speaker fall prevention device
Fixed method 4 spikes
External dimensions Width 230 x Height 610 x Depth 290 mm
weight 18kg.
