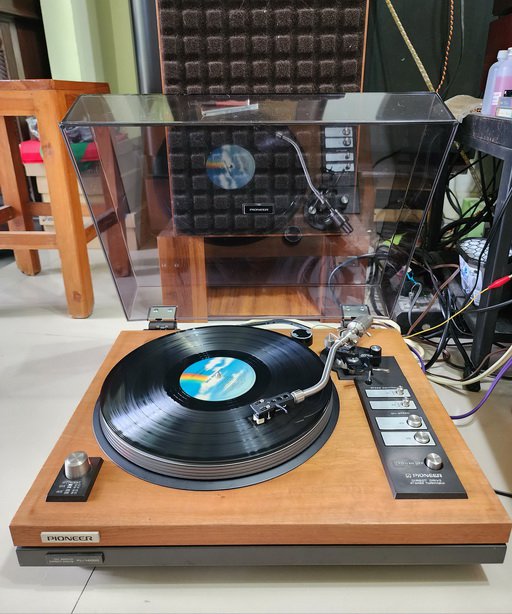

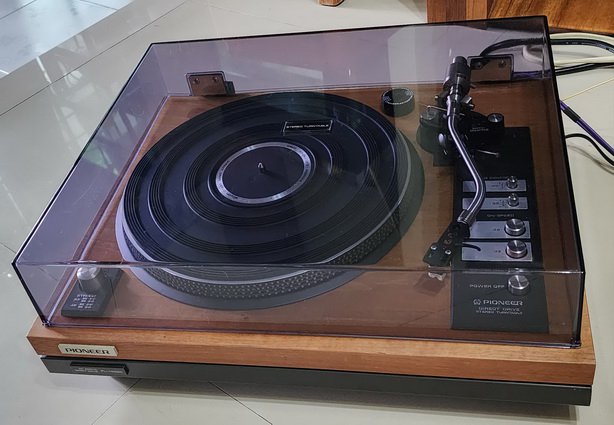

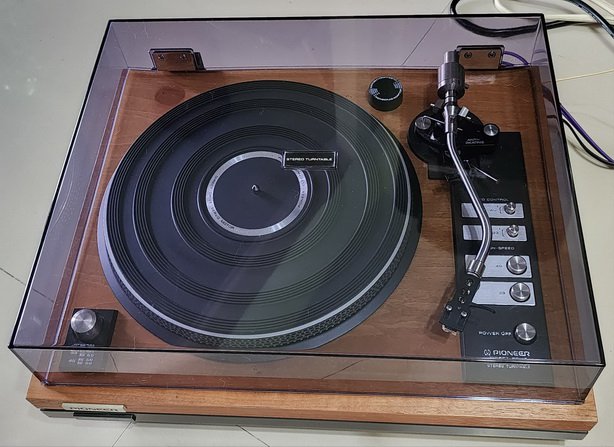

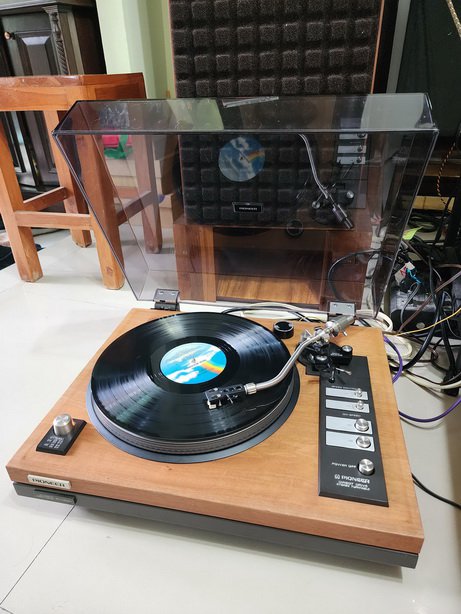

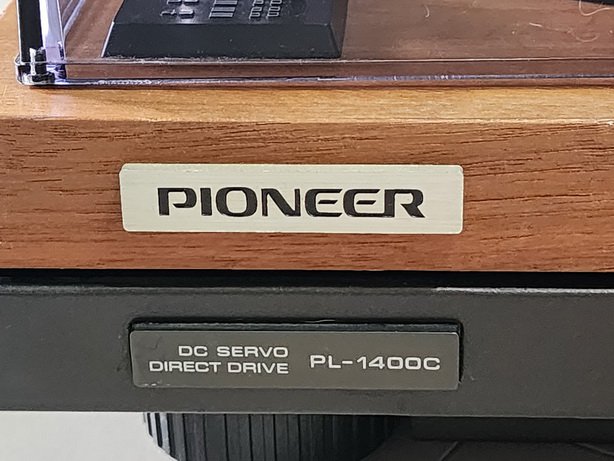

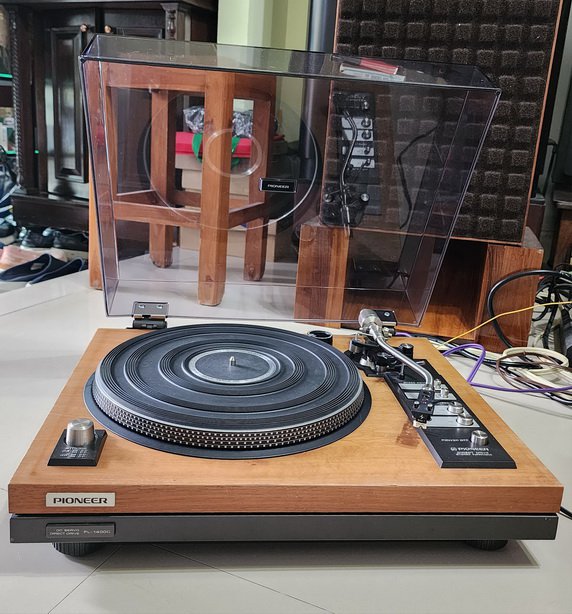

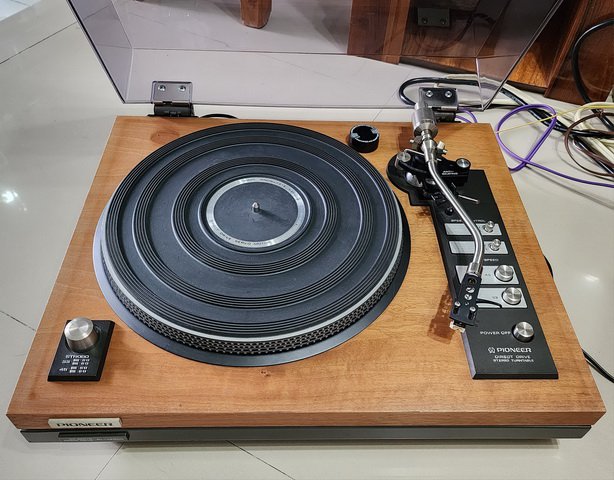

ขาย เครื่องเล่นแผ่นเสียงรุ่นใหญ่ Pioneer PL-1400C สวยมาก ทำงานสมบูรณ์ Made in Japan
ขาย เครื่องเล่นแผ่นเสียงรุ่นใหญ่ Pioneer PL-1400C สวยมาก ทำงานสมบูรณ์ Made in Japan
เสปคเครื่อง และรีวิวร์จากต่างประเทศครับ...
Pioneer PL-1400/PL-1400C ¥67,000 (released in 1974)
explanation
Record player using DC servo DD motor and high-sensitivity S-shaped pipe arm.
There were two types: the PL-1400 with a cartridge and the PL-1400C without a cartridge.
The drive unit adopts a direct drive system, and the motor uses an ultra-low-speed brushless
DC servo motor to drive a heavyweight turntable with a high flywheel effect.
The control circuit uses a pure electronic control circuit composed of transistors and diodes.
As a result, the rotation speed once set is automatically controlled (servo) and a constant
rotation is obtained regardless of fluctuations in ambient temperature and power supply voltage.

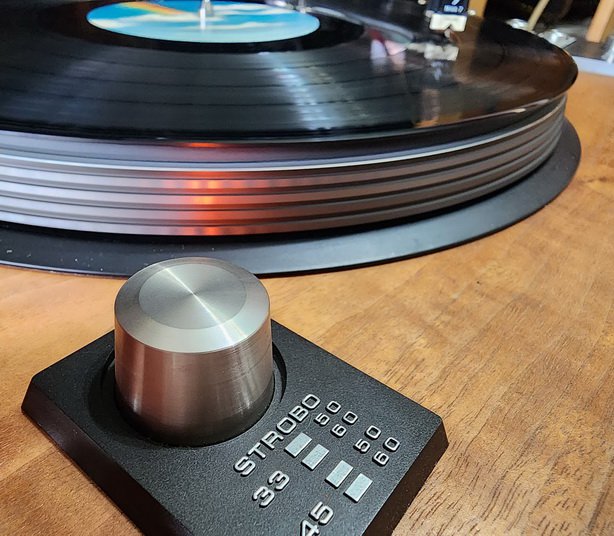

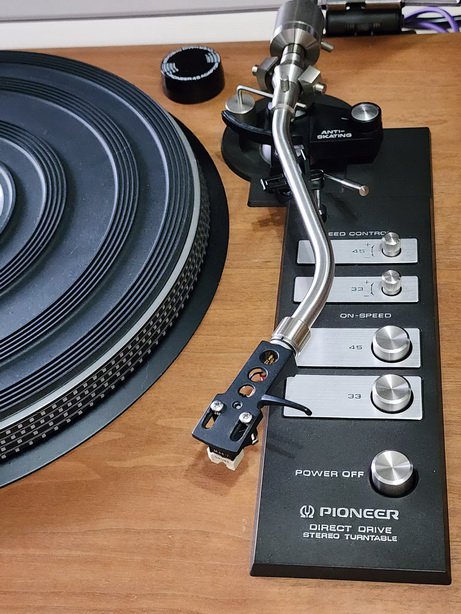

The speed can be switched by a constant electronic type of electronic circuit, and the speed can
be fine-tuned independently within the range of ±2% while looking at the stroboscope engraved
on the turntable. In addition, since the motor is driven by converting the AC power supply to DC
by a constant voltage circuit, there is no need to change the pulley for each power frequency.

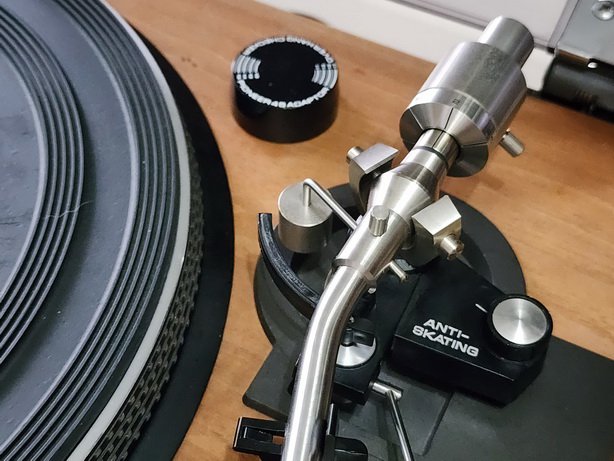

The tonearm uses a newly designed S-shaped tonearm.
Cartridges with a dead weight of up to 33g~1g can be attached without subweights, and it is
possible to trace 3.45g ultra-light needle pressure performance and discrete 2ch differential
signal components.
In addition, the headshell is specially cushioned with rubber cushions to reduce resonance and
modulation distortion.
The cabinet is a reinforced anti-vibration cabinet with a double structure that combines a metal
base and natural wood. This reduces external vibrations and vibrations from the floor,
and suppresses feedback.

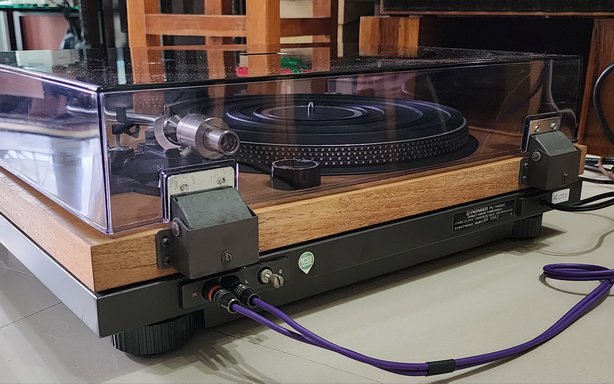

It also uses a large insulator that allows you to adjust the level of the player body.
The PL-4 comes with the PC-32E, an MM-type cartridge.
The tip of the needle uses a 0.5x4.2 mil elliptical contact diamond needle, which reduces
the weight of the vibration system (effective mass 1400.330 mg) to improve sound quality.
In addition, the vertical amplitude of matrix 0ch records can be traced with equal vertical
and horizontal compliance.
Insulator part Cartridge included (PC-330E)
Model rating
Model Record Player
motor Brushless DC servomotor
Drive system Direct drive
turntable 31cm diameter aluminum alloy die-cast
Rpm 33・1/3, 45rpm (fine-tuned)
Speed switching electronic
Speed fine adjustment range ±2% (for each rotational speed)
Uneven rotation 0.05% or less (WRMS)
S/N 60dB or more
Tonearm format Static balance S-shaped (plug-in shell)
Arm effective length 224mm
overhang 14.5mm
Mounting cartridge self-weight range Min 4g ~ Max 32g
Included cartridge MM Type (PC-330E)
Needle 0.2x0.7mil Elliptical Contact Diamond Needle (PN-330E)
Effective mass 0.55mg
Output voltage 2.5mV(1kHz、50mm/s)
Frequency response 10Hz～30kHz
Needle pressure 1.0g~2.0g(1.5g)
prudence 5.1g
Ancillary mechanisms Anti-skating mechanism
Independent oil dump arm elevation
Needle pressure direct reading counterweight
Lateral balance (variable center of gravity)
Arm leveling adjustment mechanism
Strobe lighting
Semiconductors used Transistors: 12 pcs
Diodes: 20 pcs
Power supply voltage AC100V、50Hz/60Hz
Power consumption 5.2W (Max)
External dimensions W480xH175xD415mm
weight 11.0kg
