Explanation

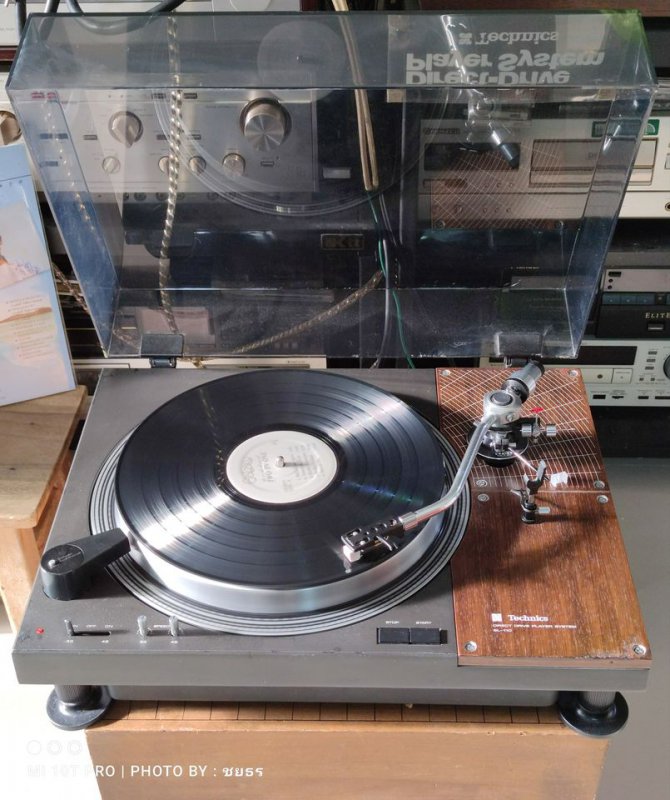

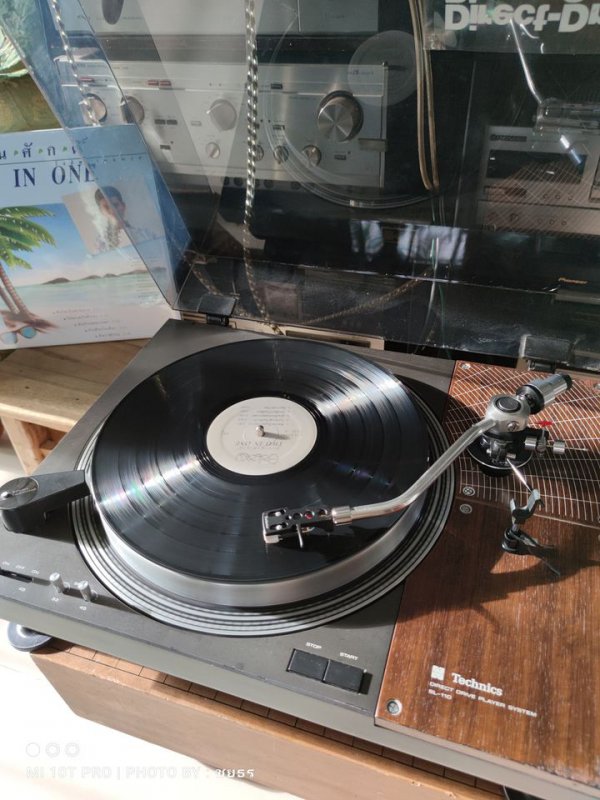

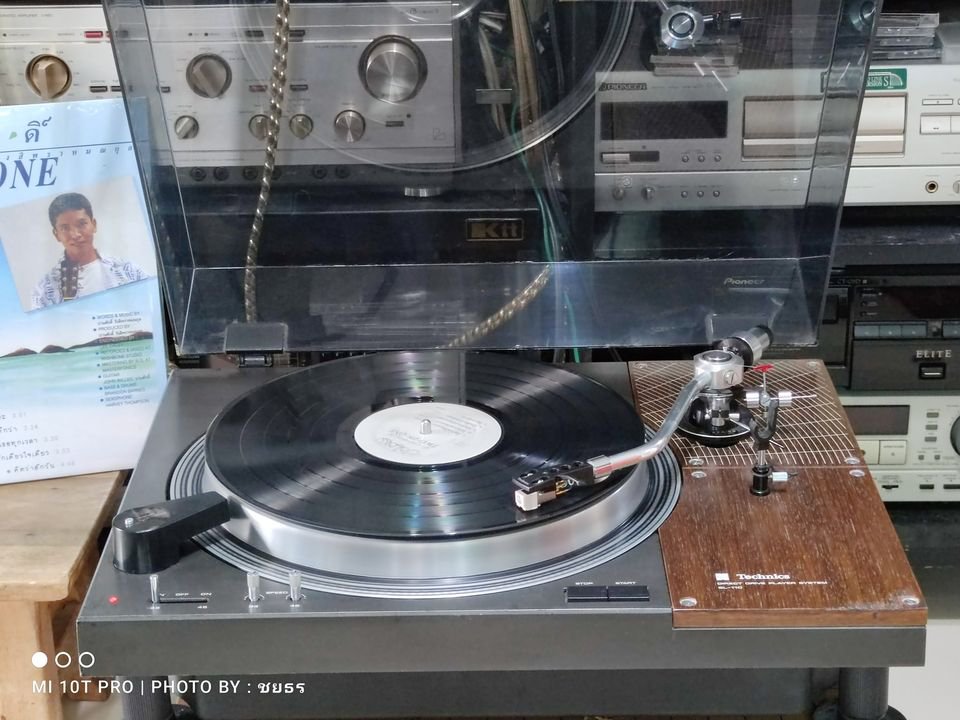

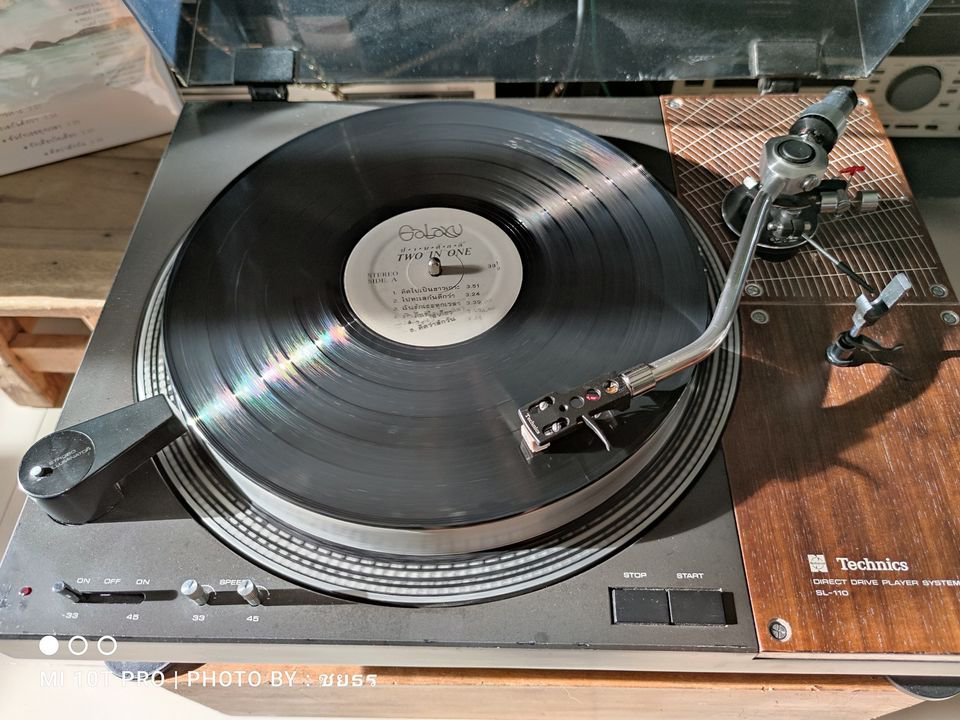

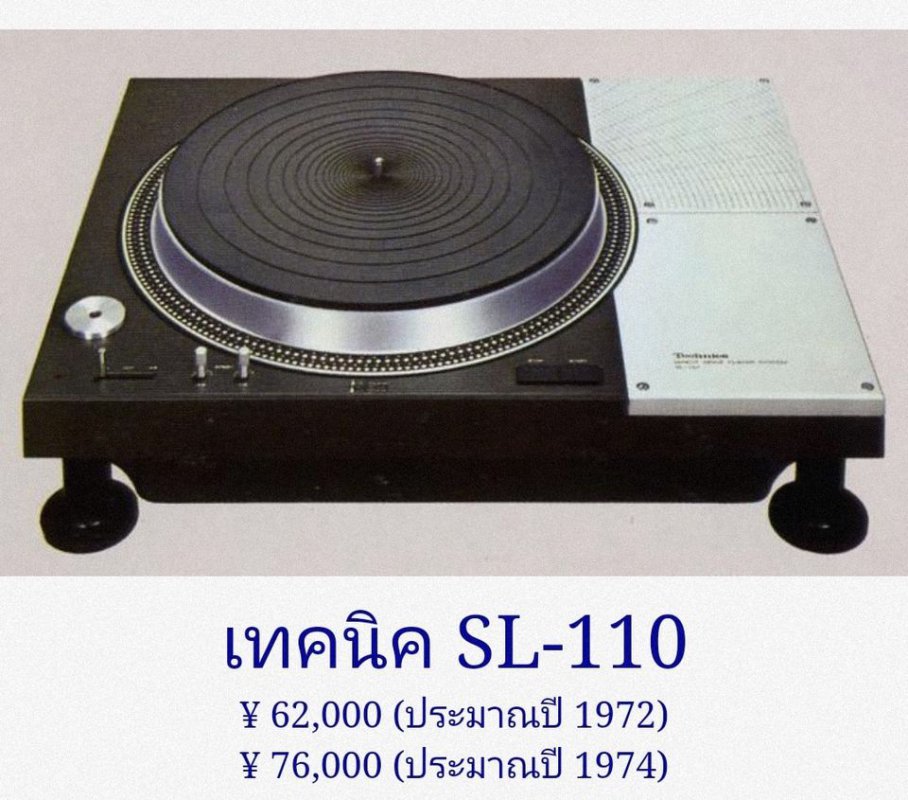

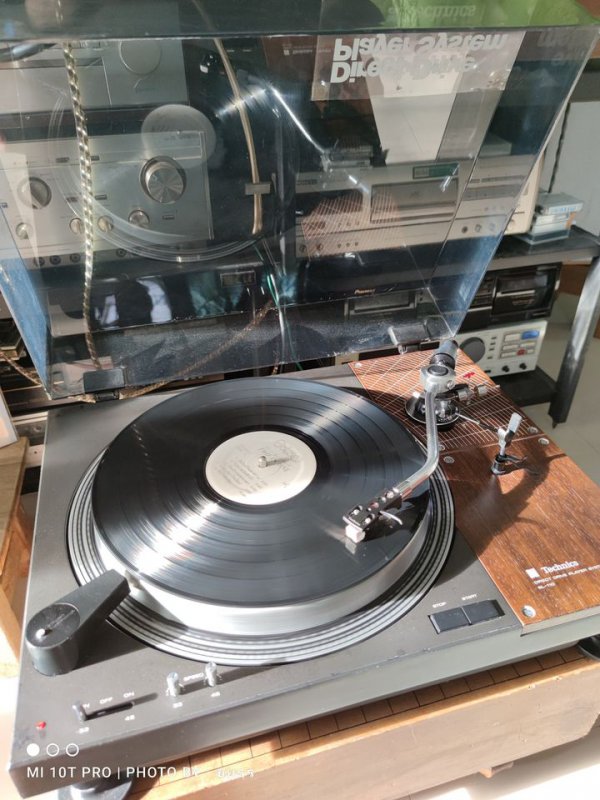

An armless player system with the tone arm part removed from the SL-1100.
The direct current motor by the super-low speed electronic control is adopted as a motor,
there is no influence of the fluctuation of the power supply voltage and the power supply frequency, and a big torque is obtained with a little electric power. With this motor,
the turntable with an inertial mass of 320 kg·cm 2 reaches the regular speed in 1/2 turn,
and quick start is also possible.
The turntable is made of aluminum die-casting with a diameter of 35 cm and a weight of 2.0 kg, and the strict dynamic balance is adjusted for each item. In addition, a strobe is engraved
around it, allowing fine adjustment of speed.
The motor, turntable, and player case are made of aluminum die casting, and the total
weight reaches 13.5kg.
Since the arm base is screwed, it can be attached and detached.

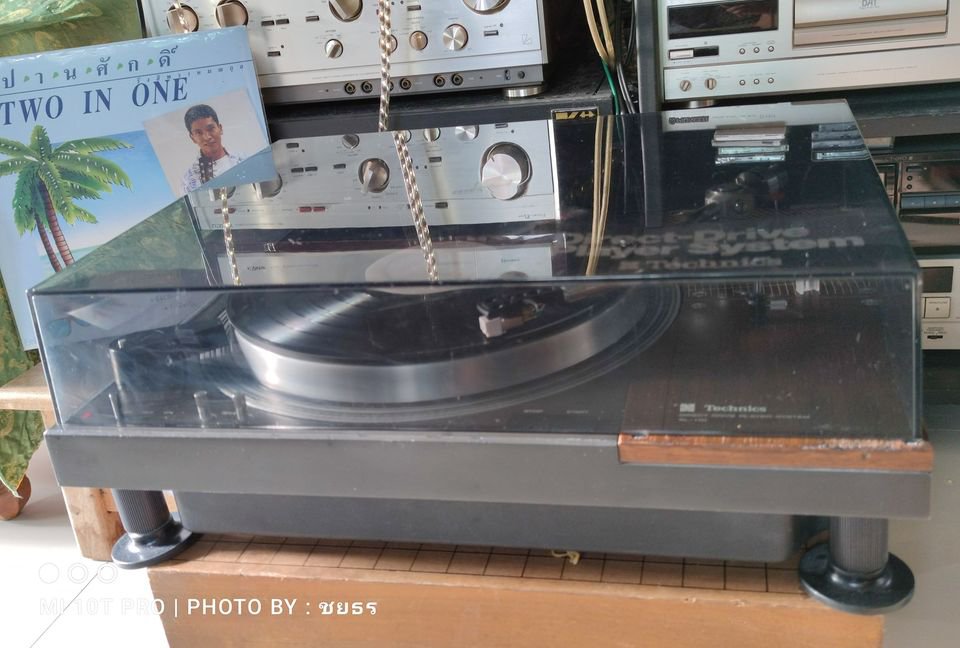

The main body is supported by four legs with built-in insulators that block external vibration,
and the height can be adjusted by turning these legs.
The output terminal has adopted the pin jack type.

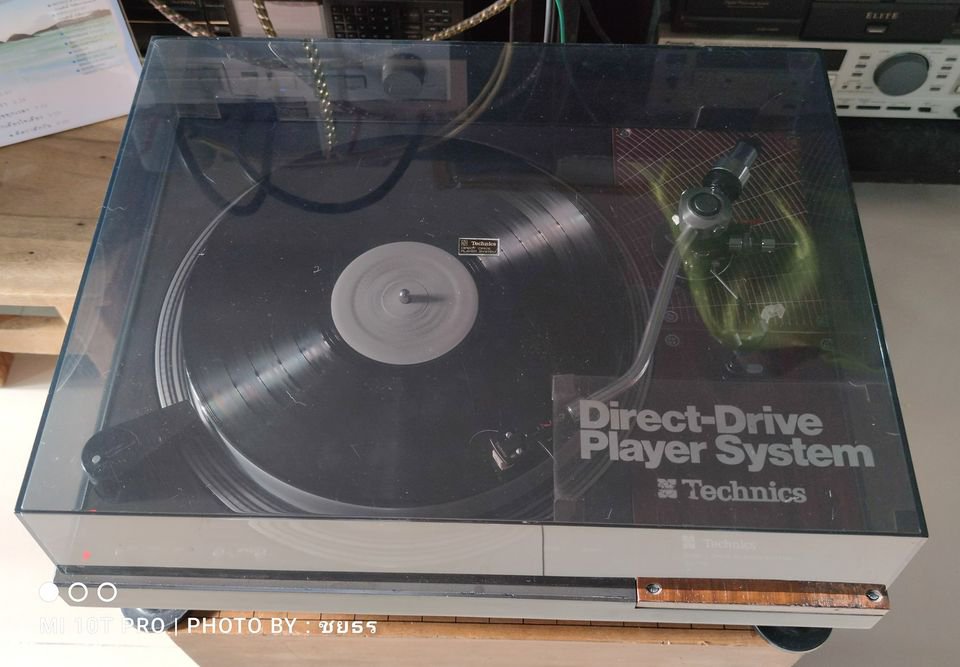

A dust cover is included.
As an option option, there was an arm panel (die cast/wood), strobe lighting, and wood base.

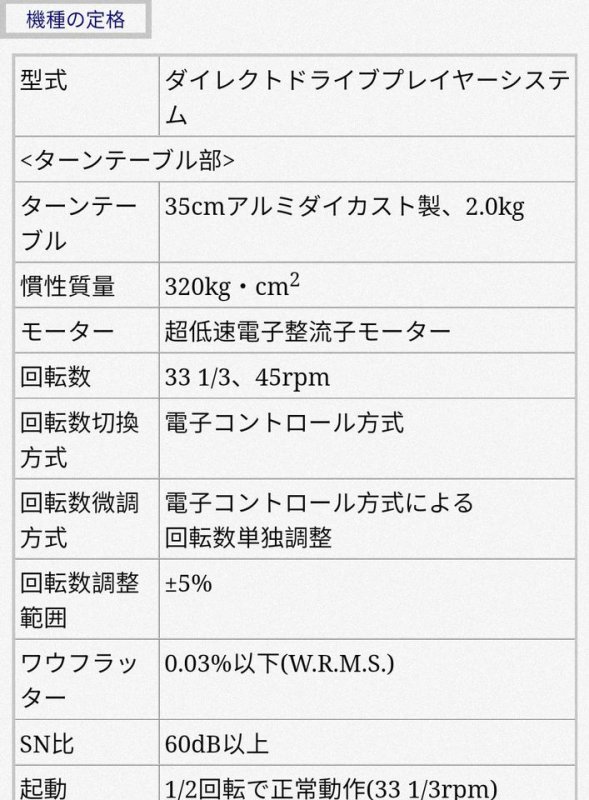

Model rating
Type Direct drive player system
<Turntable part>
Turntable Made of 35cm aluminum die cast, 2.0kg
Inertial mass 320kg・cm2
motor Ultra low speed electronic commutator motor
Number of rotations 33 1 / 3、45rpm
Switching mode Electronic control method
Fine adjustment method

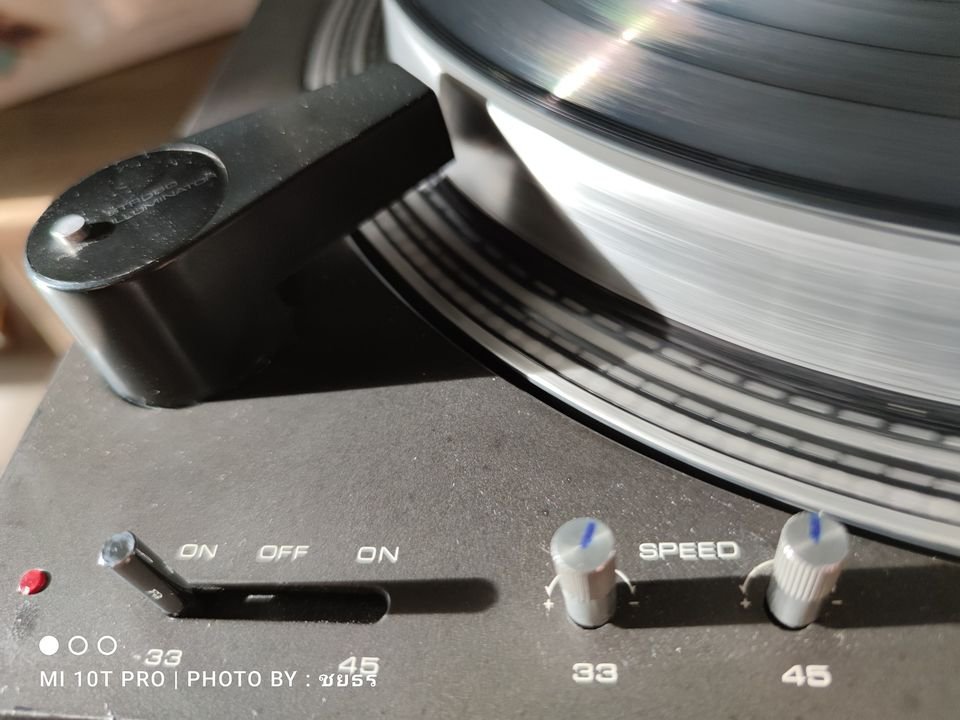

Rotation speed independent adjustment by electronic control method
Speed adjustment range ±5%
Wow and flutter 0.03% or less (WRMS)
SN ratio 60dB or more
Start-up Normal operation at 1/2 rotation (33 1/3 rpm)

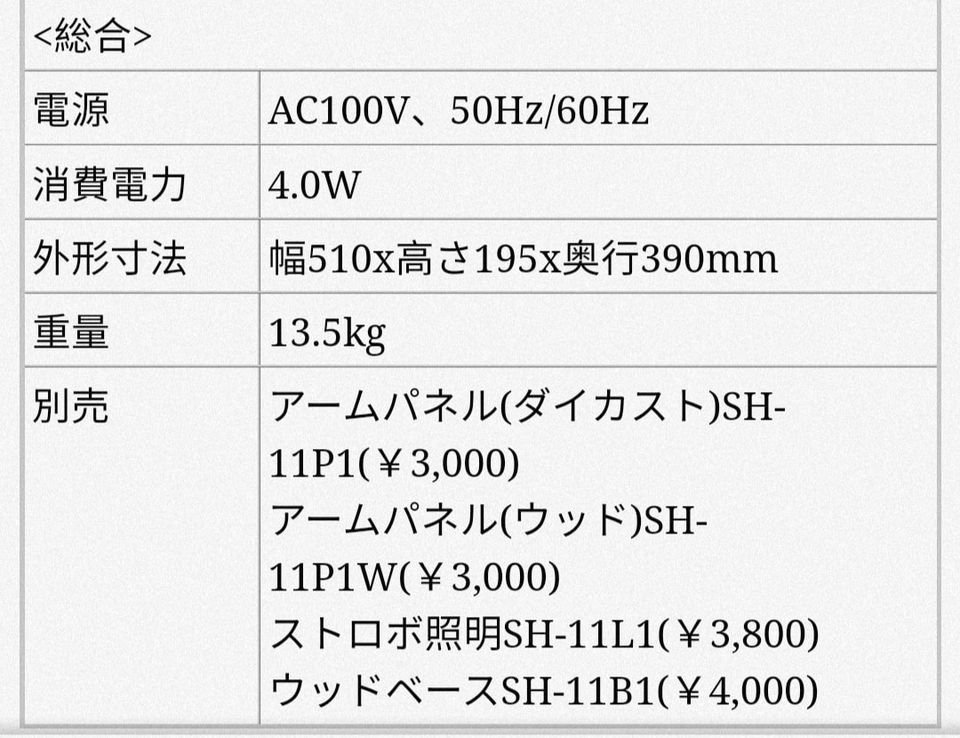

<Comprehensive>
power supply AC100V、50Hz/60Hz
Power consumption 4.0W
External dimensions Width 510x height 195x depth of 390mm
weight 13.5kg

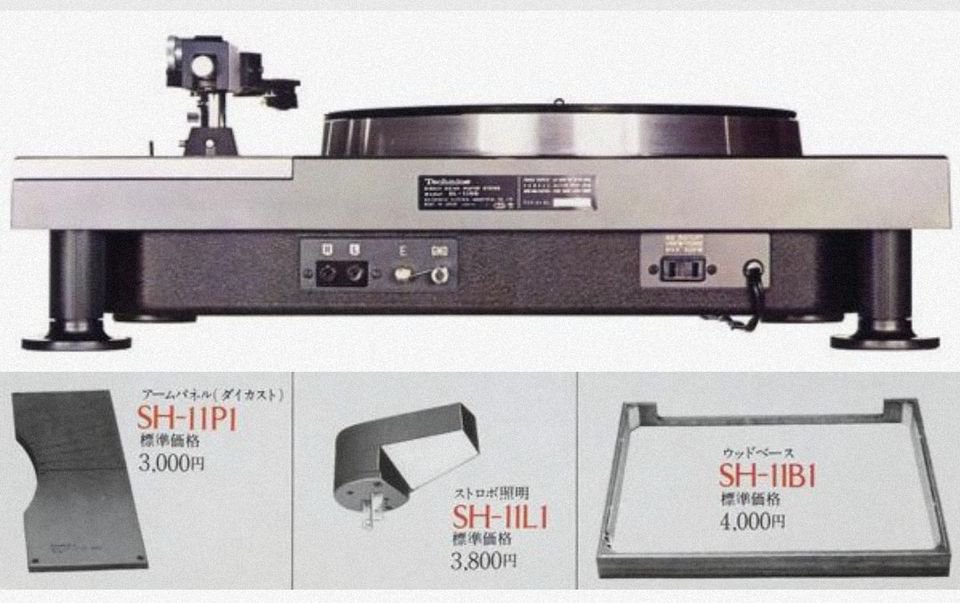

Sold separately Arm panel (die cast) SH-11P1 (¥3,000)
Arm panel (wood) SH-11P1W (¥3,000)

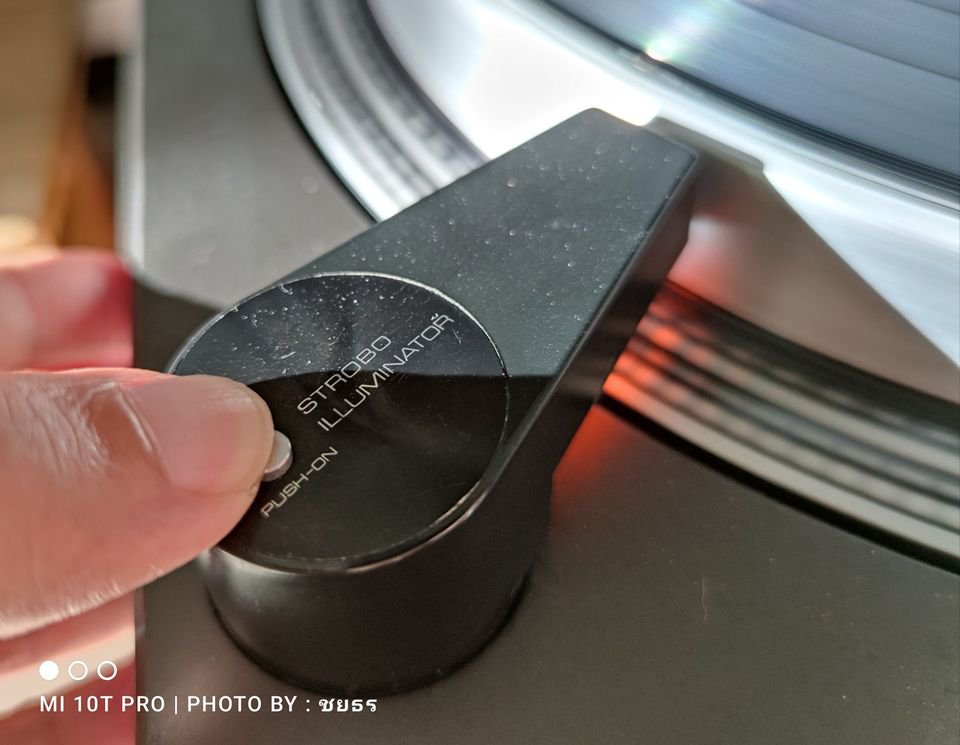

Strobe lighting SH-11L1 (¥3,800)
Wood base SH-11B1 (¥4,000)

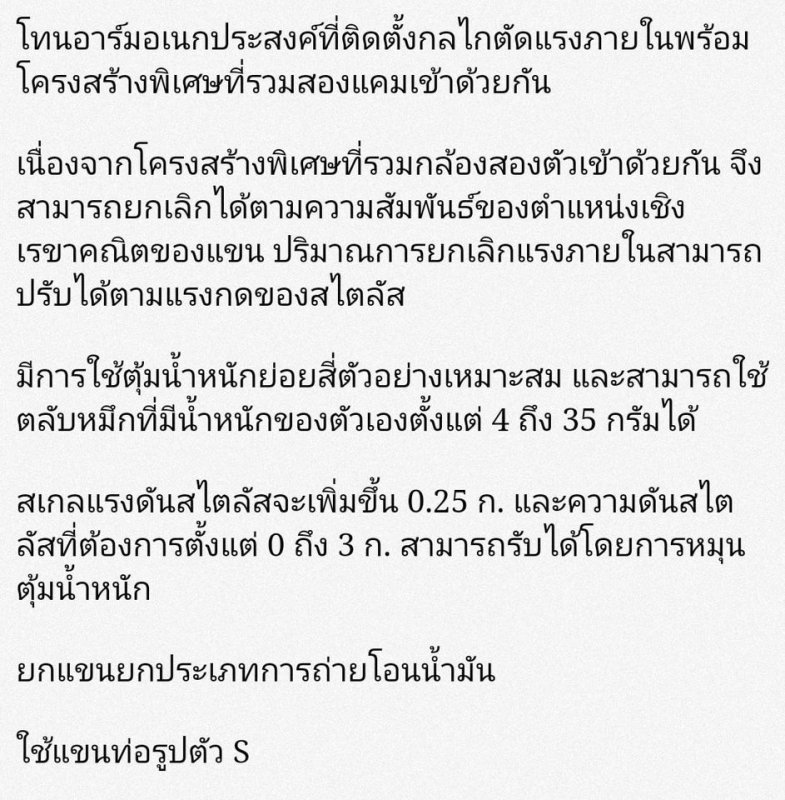

Explanation

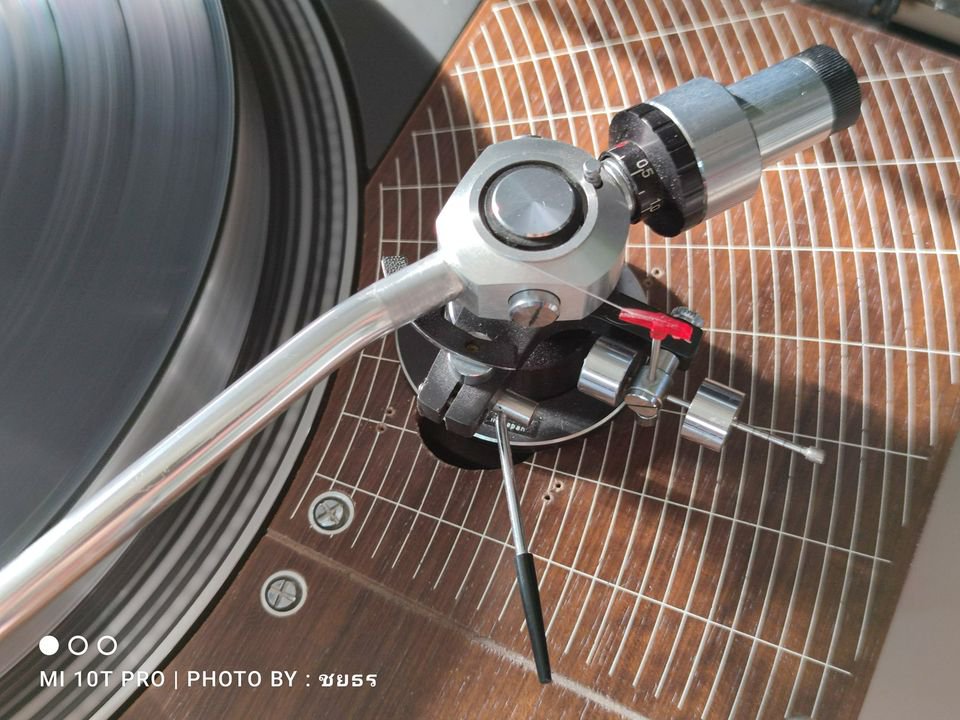

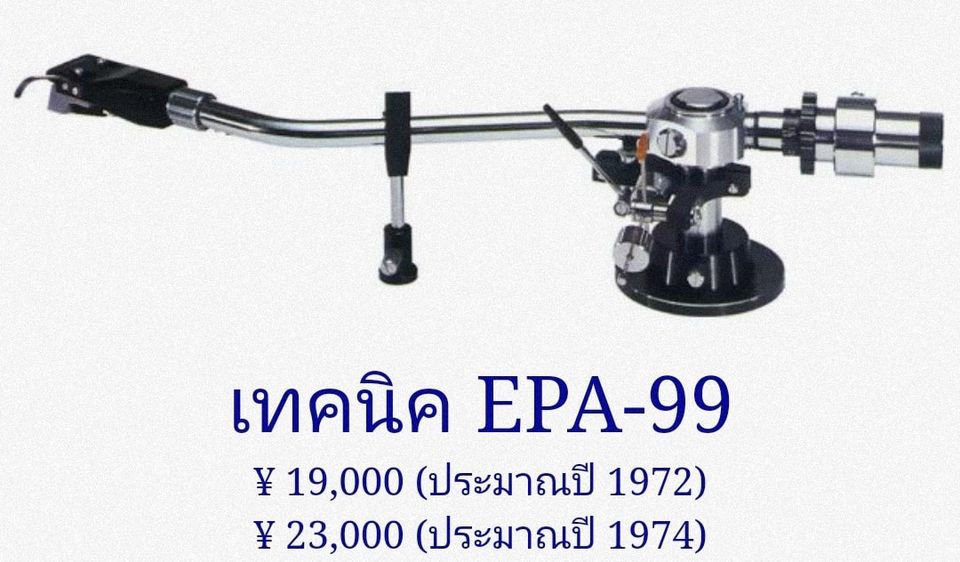

A universal tone arm equipped with a special structure inside force canceling mechanism
that combines two cams.
Due to the special structure that combines two cams, it is possible to cancel according to
the geometrical positional relationship of the arm. The amount of inside force cancellation
can be adjusted according to the stylus pressure.
Four sub-weights are used, and cartridges with a weight of 4g to 35g can be used.
The needle pressure scale is in 0.25g increments, and you can obtain the desired needle
pressure from 0 to 3g simply by turning the balance weight.
Equipped with an oil dumper type arm lifter.

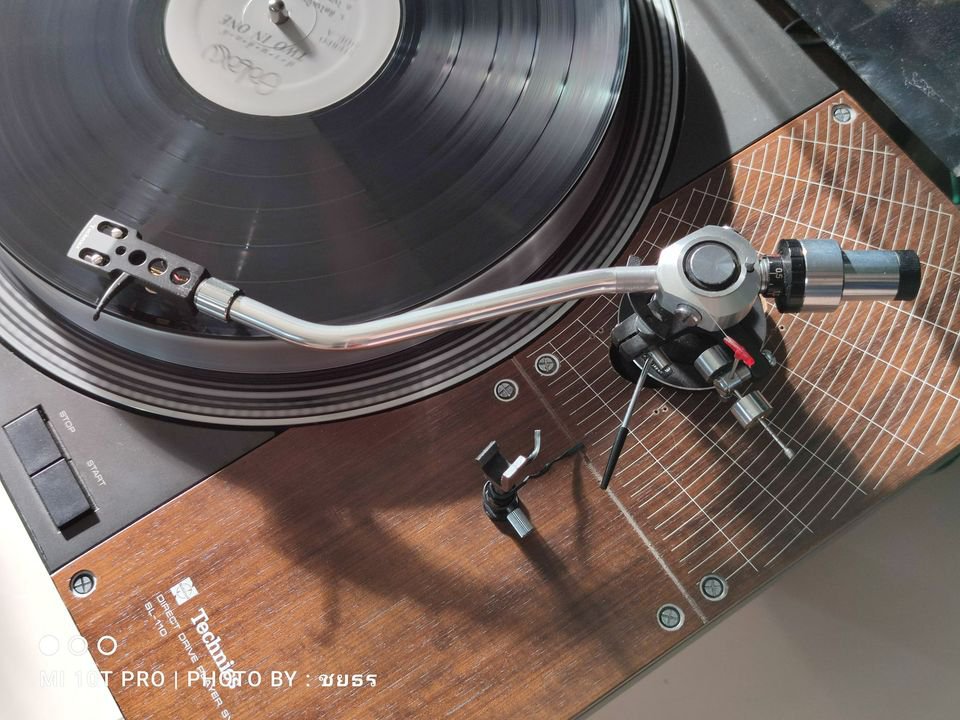

Uses S-shaped pipe arm.

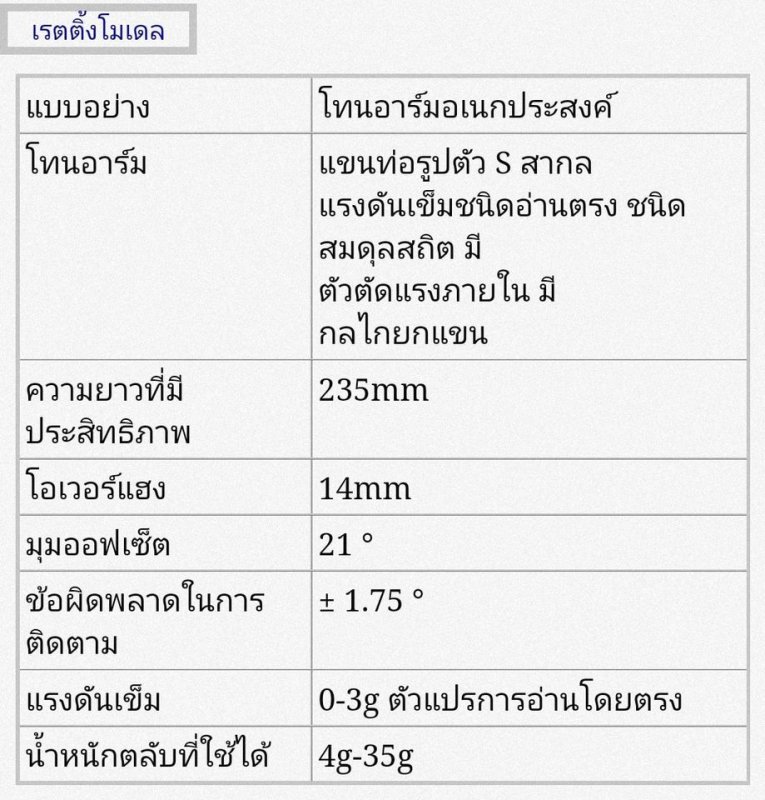

Model rating
Type Universal tone arm
Tone arm Universal S-shaped pipe arm
Direct reading of stylus pressure Static balance type
Inside force canceller with
arm elevation mechanism
Effective length 235mm
Overhang 14mm
Offset angle 21゜
Tracking error ±1.75゜
Stylus pressure 0-3g Direct reading variable

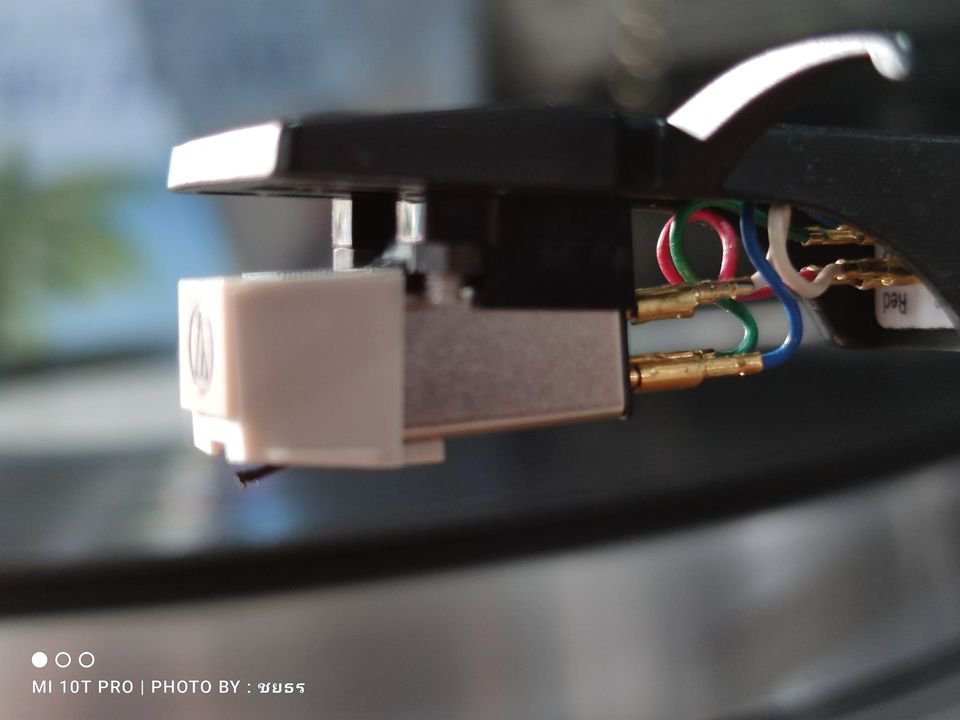

Applicable cartridge weight 4g ～ 35g.
