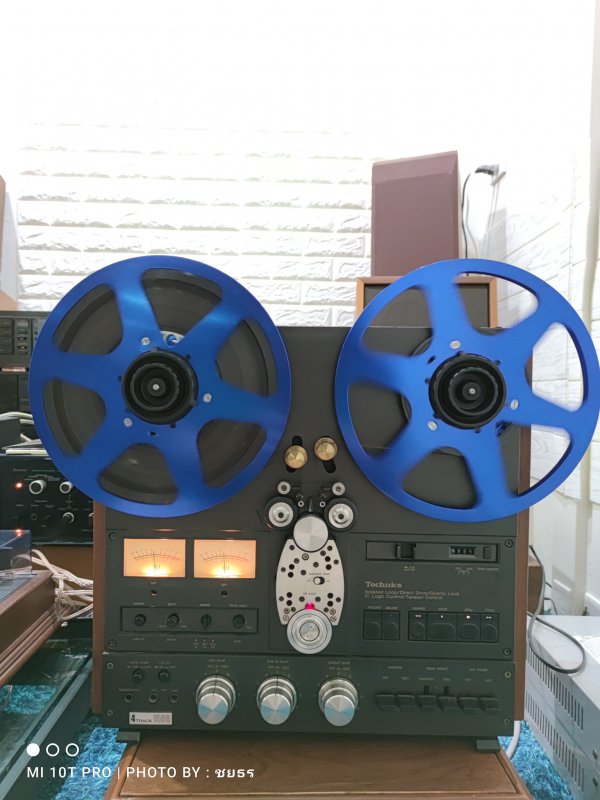

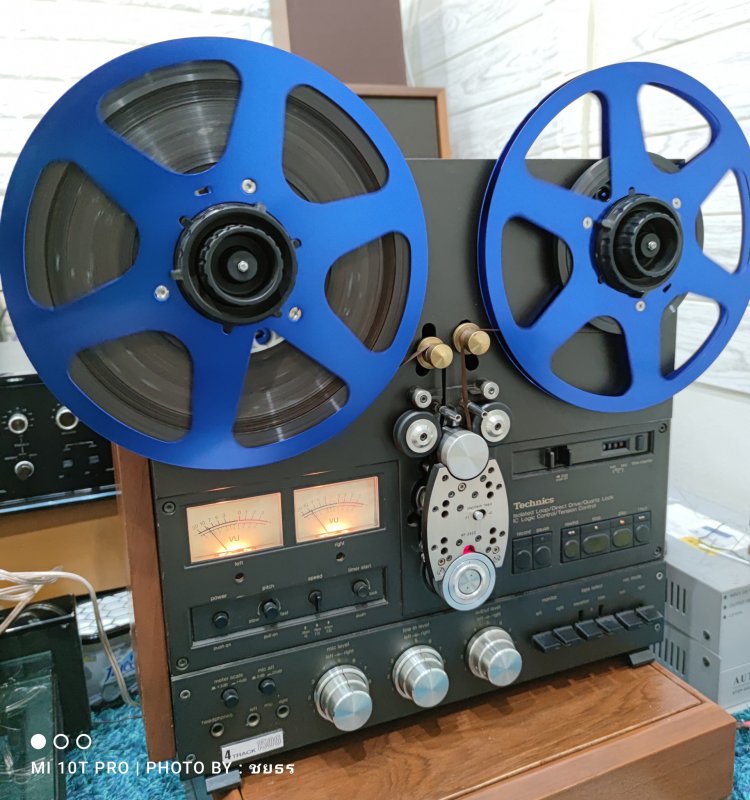

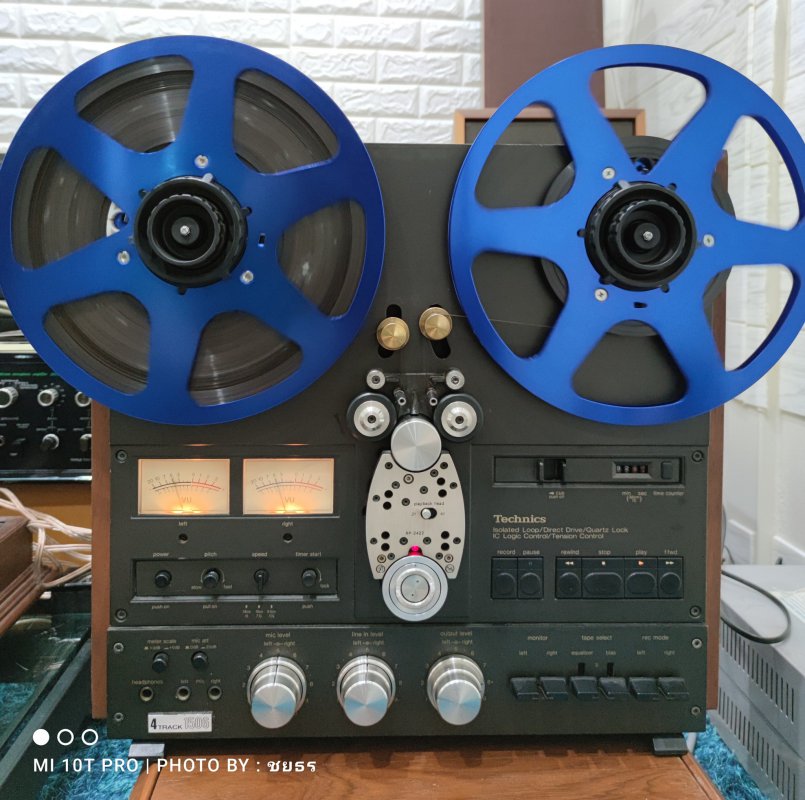

Stereo tape deck announced as a 4-track type of RS-1500U.

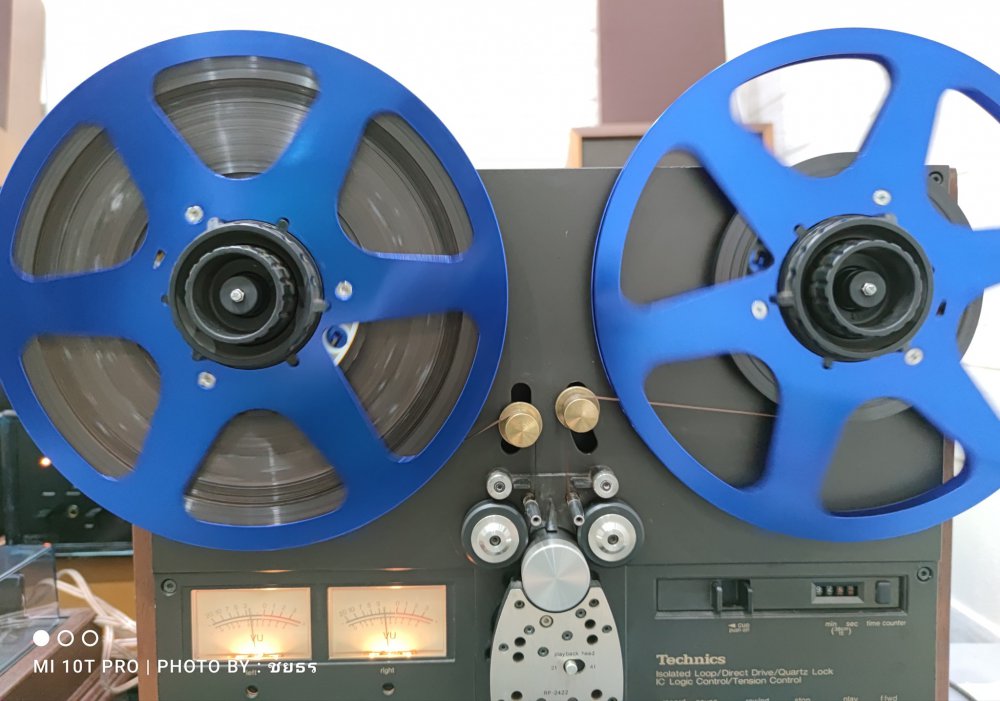

The isolated loop system by 1 capstan and 2 pinch rollers is adopted as a mechanism part.
In this system, the closed loop system is realized, the contact path of a head is isolated from
the rotation of a reel stand, and the bad influence by a fluctuation of a tape tension is cut off.
The direct drive system by the quartz lock control is adopted as a capstan. In addition,
the capstan has a diameter of 34 mm, and the pursuit of accuracy is thoroughly pursued.
The strobe by LED lighting is adopted, and the speed deviation in seconds can be
visually checked.
The changeover switch of 3 steps of a bias and 3 steps of an equalizer is carried.
The head part has a 4-head configuration, and is arranged in the order of tape path for
4-track playback, 2-track erasure, 2-track recording, and 2-track playback.
The reel stand direct drive which can fast forward and rewind at almost constant speed is
adopted from the beginning to the end.
The cue lever is carried.
The double scale system is adopted as a level meter.
The tape pitch control is carried and the adjustment can be performed in the range of ± 6%.
The timer standby mechanism is carried.

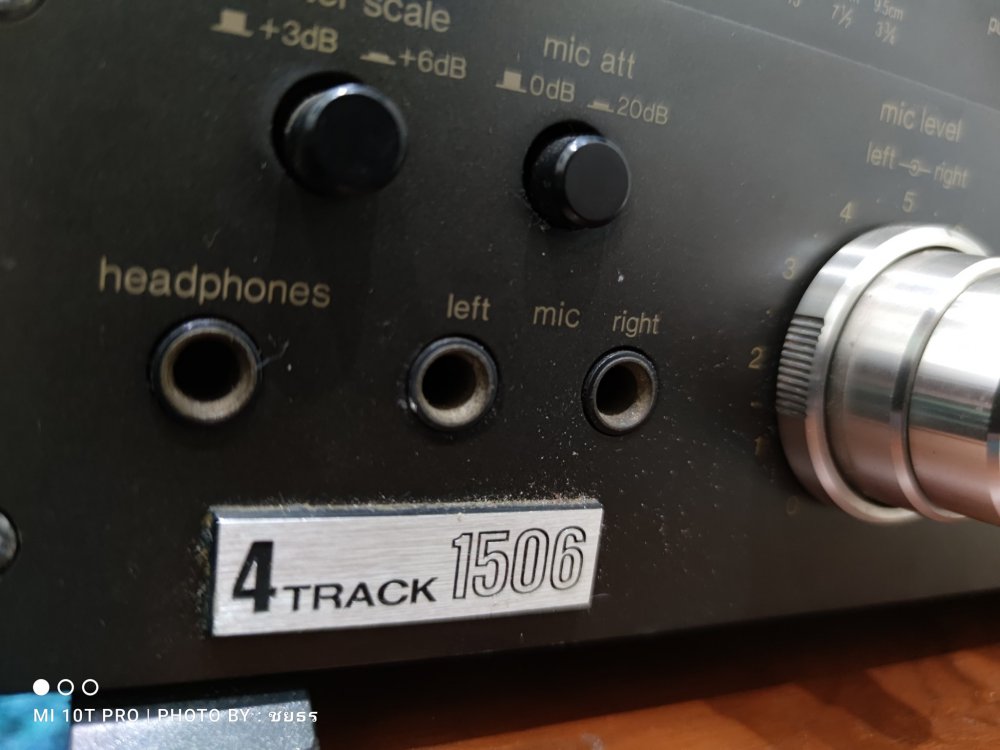

The microphone amplifier which has a dynamic margin of 77dB is carried on the assumption of
a full-scale live recording.

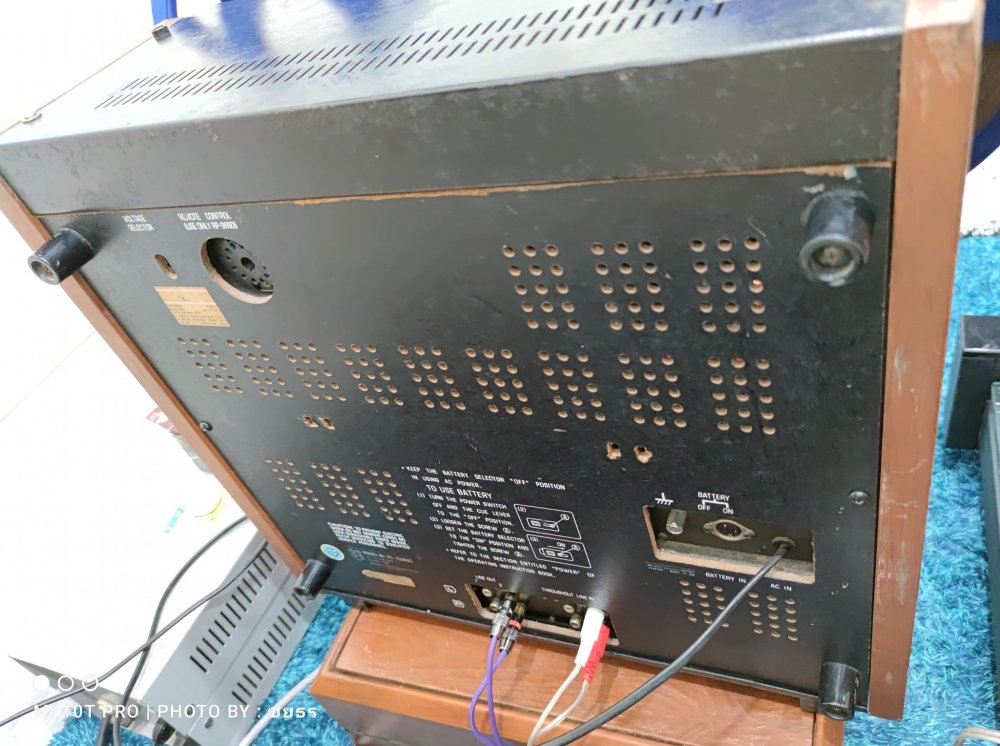

DC drive is possible with an optional battery case and 40 single batteries. When using
Neo High Top batteries, continuous recording for about 2 hours is possible.
There were rack joints for 19inch standard racks, dust covers, wood cases, portable cases, etc.
as options.
Model rating
Model Stereo tape deck
Track format 4-track 2-channel recording / playback
2-track 2-channel playback
Head configuration For recording: High hardness permalloy For
playback: High hardness permalloy x2 For
erasing: Double gap ferrite
Motor used Quartz Lock Electronic Commutator DD Motor x1
Electronic Commutator DD Motor x2
Tape speed 38cm / s, 19cm / s, 9.5cm / s
Frequency characteristic 38cm / s: 30Hz ～ 30kHz ± 3dB
SN ratio 57dB (JIS)
Wow and flutter 38cm / s: 0.018% (WRMS)
Power supply AC100V, 50Hz / 60Hz
DC24V
power consumption 55W
External dimensions Width 456 x Height 443 x Depth 257 mm
weight About 23 kg
Sold separately Head block RP-2224 (¥ 38,000)
Head block RP-2422 (¥ 38,000)
Head block RP-2224SX (¥ 58,000)
Head block RP-2422SX (¥ 58,000)
Portable case RP-9100 (¥ 35,000)
Dust cover RP-9110 (¥ 5,000)
Wood case RP-9120 (1 set of 2 pieces, ¥ 5,000)
Rack joint RP-9130 (1 set of 2 pieces, ¥ 2,000)
Battery case RP-099 (¥ 30,000)
Battery adapter RP-086 (¥ 30,000)
Remote control box RP-9690 (¥ 13,000)
Remote control box RP-9170 (¥ 18,000)
Wireless remote control unit RP-070 (¥ 30,000)
