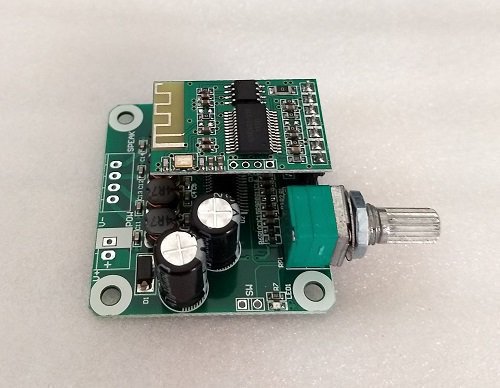

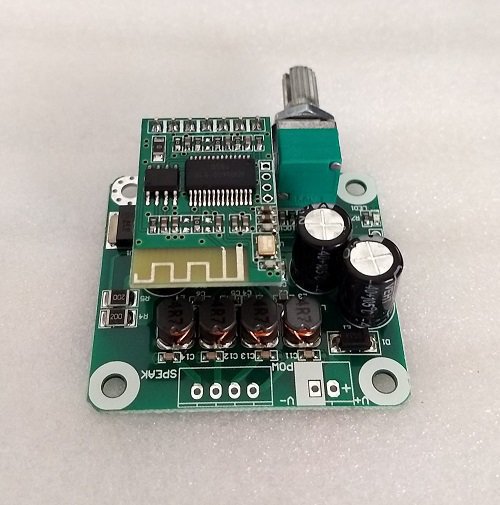

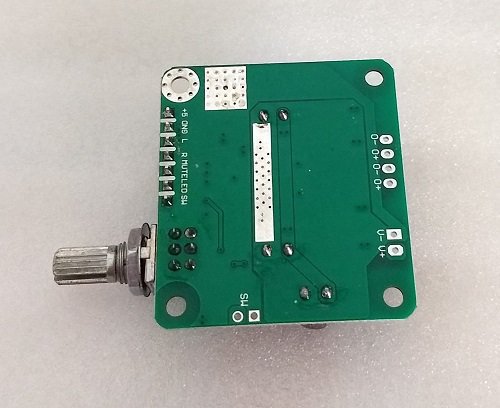

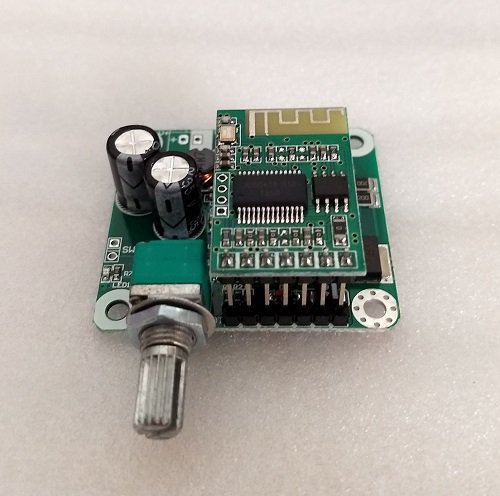

Digital Amplifier Board Audio Stereo Bluetooth 4.2 Output Power 15Wx2
Features:
The board adopts the typical circuit of TPA3110 and adopts the single power supply with anti-reverse connection. It is convenient to use the general adapter and switch power supply for its power supply.
Special interface is designed for bluetooth audio receiving module, with built-in 5V voltage stabilizing circuit, which can easily DIY bluetooth speaker.
The output power is 15W X 2 (@16v), which can be connected with 8 ohms and 4 ohms.
Application: USB Speaker, Portable Speaker, TV, DVD, Satellite Finder, Navigator.
Specification:
Chip: TPA3110
Power supply: 8V-26V
Current: > 2A
Output power: 2 x 15W
Output match: 4-8 Ohm
Channel type: Dual Channel
Dimensions: 4x4.3cm/1.57x1.69inch
ขาย 270- ส่ง 40-
Tel.081-4094600
|
