เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้

1.ครื่องเล่นเทป 3 หัวเทปรุ่นทอป AIWA - EXCELIA รุ่น Top XK-009

เสปค-รีวิวร์จากต่างประเทศ....

AIWA / EXCELIA XK-009
¥ 89,900 (around 1988)
Commentary

 A reference model cassette deck that pursues the ultimate in analog decks and aims for
master numbers.

The A, M, T, S (Amti Modulation Tape Stabilizer) is carried in order to reduce the vibration of
a cassette half.
In A, M, T, S, the cassette box has a two-layer structure of a non-magnetic aluminum plate and
a non-repulsive special rubber that has been carefully examined for sound quality, and the half
 body is precisely and securely crimped and fixed with a pressure of about 1 kg. doing. Thereby,
the modulation noise and the tape running noise are reduced sharply.

The super stabilized tension dual capstan mechanism is carried in the mechanism part.
In this mechanism, two capstans maintain a constant tape tension from the beginning to the
 end of winding. In addition, Aiwa's original micro-grain processing is used for the capstan
on the take-up side, and fine granular processing is performed on the surface of the capstan
to prevent tape slip and prevent deterioration of the tape and capstan itself. It is mitigating.
Moreover, the frequency-separated type dual-p element tongue which changed the shaft
diameter of two capstans is adopted, the overlap of frequency is eliminated, and the resonance
 is prevented.

The three motor composition is adopted, one for FF / REW, one for the capstan, and one
for winding at the time of recording and rewinding, each equipped with a dedicated motor.
Furthermore, the take-up motor adopts a belt drive drive to improve the sound quality, and it is
 free from the cogging that occurred in the method of educating FF / REW.
In addition, high-precision processing is applied to the zinc die-cast heavy-duty flywheel, and
each one is dynamically balanced before mounting to achieve excellent characteristics.

The heavy-weight zinc die-cast head block of 30g is adopted as a head block. Thereby, the
 modulation noise is reduced by suppressing the minute head vibration. Furthermore, the bias
shield is set in the head block, and the bias leakage and the signal leakage from the sound-
recording head wire to the play head wire are suppressed.

The amorphous head which was excellent in the saturation magnetic flux density, magnetic
permeability, wear resistance, etc. is adopted as a sound-recording-play head. Furthermore,
PC-OCC with a purity of 99.997% and an oxygen content of 5ppm or less is adopted as
a winding of a head.
Furthermore, the head shape has adopted Aiwa's original design which paid attention to
the contour effect, and has suppressed the low-pass exposure.

Compared to the single capstan, the dual capstan mechanism applies a constant higher
 tape tension, which improves the adhesion between the tape and the head. Therefore, if
a normal ferrite material is used for the erasing head, the spontaneous magnetization of the
ferrite material due to the coercive force = Hc (0.1 to 0.15) causes high-frequency deterioration
of the tape signal. For this reason, a sendust head with a low Hc of 0.007 to 0.02 is used for
the erase head.

As a noise reduction system, Dolby B / C type is installed in dual, and dbx is also installed.

The Dolby HX pro which improves the dynamic range and the frequency characteristic of
a high region is carried.
In Dolby HX Pro, the characteristic is improved by changing a bias amount to the optimum
state in 1/1000 second unit and recording according to a high region signal.
Moreover, by making the circuit of Dolby HX Pro a discrete composition, the optimum circuit
constant is selected one by one according to the head to be used, and the sound quality is
further improved.

The playback head and playback amplifier that use the PC-OCC winding are directly connected
by the PC-OCC wire, and the peaking capacitor that causes a phase shift in the high
frequency range is included, including the connector and coupling capacitor that cause deterioration of sound quality. It is completely eliminated.
Furthermore, the low noise, low distortion, high withstand voltage, high slew rate DC
configuration amplifier developed exclusively for the amplification element is adopted.
 Combined with a high-precision equalizer element, the dynamic range is expanded and the
sound quality is improved.

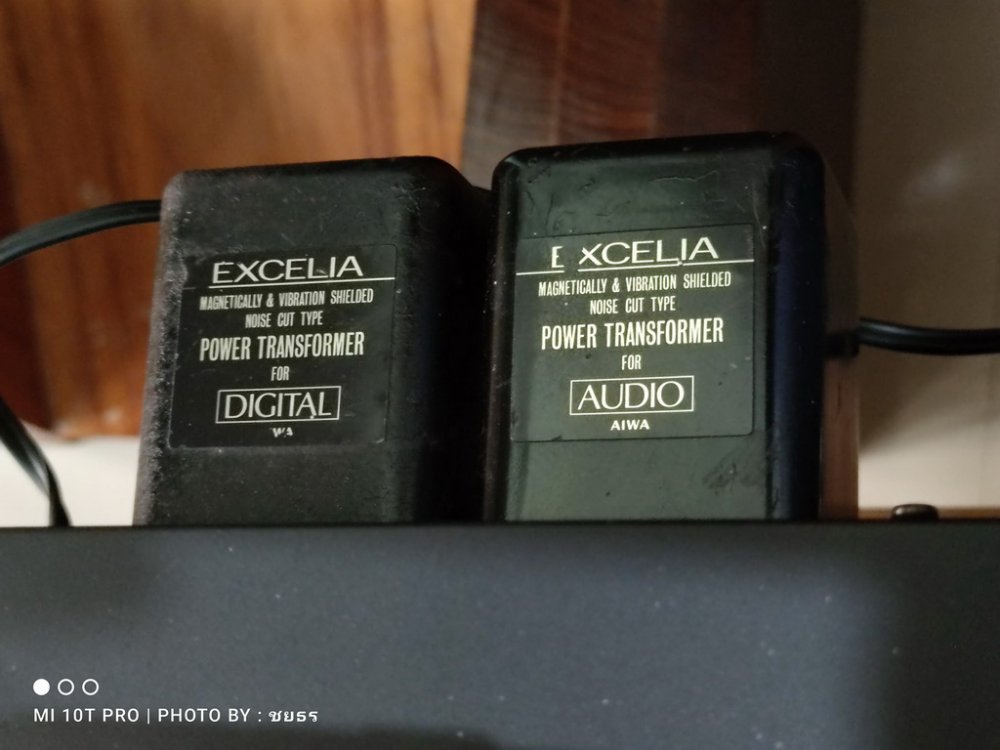

The large capacity power transformer which became independent for a logic system and
a signal system is adopted as a power-source part. The digital signal of the logic system and
 the analog signal of the signal system are completely separated, and the signal leakage and
the adverse effect from the digital system to the analog system are suppressed.
In addition, the transformer itself has a vibration-proof design that is hardened with an
epoxy-based filler, and by setting the transformer outside the main body, the adverse effects
of flux and micro-vibration generated by the power transformer on the tape head and signal
system are eliminated. increase.

 The printed circuit boards of the mechanical logic system, the display system, and the
signal system are made independent, and the independent separation structure installed
with sufficient space is adopted.
The mechanical logic system and the display system are separated by the internal
chassis respectively, and the interference to the signal system is eliminated. Furthermore,
the recording system and the reproduction system are also completely separated, and the influence to the reproduction system from the recording system signal and the high frequency
 bias at the time of recording is prevented.

By eliminating as much as possible the routing of electronic switches, changeover circuits,
connectors, and print patterns that cause sound quality deterioration, simple and straight
signal transmission is achieved.
Moreover, the transmission mechanism which does not cause the deterioration of sound quality
at the time of OFF, such as the MPX circuit with a through position and the open type
muting circuit at the time of a performance, is carried.

The bottom of the main body is equipped with an insulator with a unique structure, and the
side wood is equipped on the side to prevent resonance.
In addition, anti-vibration material is used for the top plate and bottom plate, and the
recycled board is firmly fixed with two special holders and six special screws with flanges.

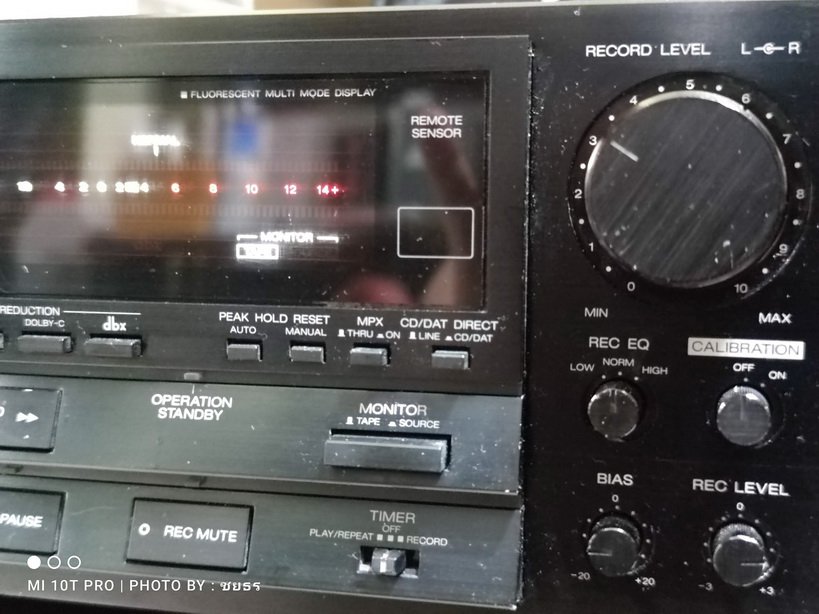

The manual calibration is carried. In addition, the built-in oscillator is set to 400Hz and
10kHz, allowing for a wider range of frequency response adjustments.
In addition, the level meter is expanded to 0.5 dB steps during calibration, enabling
highly accurate calibration.

It is possible to set a three-stage recording equalizer according to the type of recording source
and tape.
High emphasizes low frequency MOL (Maximum Output Level), Norm emphasizes
standard setting, and Low emphasizes high frequency MOL.

The linear counter is carried and the pulse from the left and right reel stands can be calculated
at high speed, and both tape running can be digitally displayed in minutes and seconds. It can
be displayed in all driving modes.
At the time of sound-recording, the pre-end turn signal which blinks from 3 minutes before the
tape end (when using C-60) is carried.

The MPX filter and the bias trap filter which used the PC-OCC winding and the low distortion
 core are adopted.

The peak hold with a peak hold of 24 segments x 2ch is carried.
This meter can be Auto / Manual Reset.

The detent type sound-recording volume which is excellent in separation and crosstalk characteristics, and has little left-right interlocking error and sound quality deterioration is
adopted.

The 70 micron copper foil printed circuit board is adopted.

The AC cord with polarity display using OFC material is adopted.

Gold-plated terminals are used for the input / output terminals and headphone terminals.

The metallized polyester film capacitor which reduced the auditory distortion by the
 special three-layer structure is adopted.

The OFC heat sink is adopted.

Comes with a wireless remote control.

 Internal structure Mechanism part Head block Damping structure Flywheel Power
transformer dbxIC PC-OCC winding trap coil and PC-OCC winding MPX filter Metallized
 polyester film capacitor and low contact resistance type gold-plated jack Magnetically
shielded peaking coil and detent type volume

Model rating
Model Stereo cassette deck
head Playback: PC-OCC Winding Pure Amorphous Head
Recording: PC-OCC Winding Pure Amorphous Head
Erase: Double Gap Sendust Head
motor For capstan: System servo motor For
playback / recording winding: DC motor
FF / RWD only: DC motor
Wow and flutter 0.018% (W ・ Peak)
± 0.035% (WRMS)
Frequency characteristics
(-20dB recording / 0dB recording) Normal: 20Hz-20kHz ± 3dB / 20Hz-12kHz ± 3dB
CrO2: 20Hz-21kHz ± 3dB / 20Hz-15kHz ± 3dB
Metal: 20Hz-22kHz ± 3dB / 20Hz-18kHz ± 3dB
Signal-to-noise ratio (peak level) 75dB (Dolby C type on, metal tape)
95dB (dbx-NR on, metal tape)
External dimensions Width 469 x Height 136 x Depth 432.7 mm
weight 10.2kg
Attached LC-OFC gold-plated pin cord x2
remote controller

//////////////////////////////////////////////////////////////////////////////////////////////////////////

2. เครื่องเล่นเทป Dat Aiwa รุ่น XD-S1100

เสปค-จากต่างประเทศ....

Specifications
Type: digital audio tape deck
Track System: 2-channel stereo
Tape Speed: 8.15, 12.225 mm/s
Recording Time: 120 minutes
Heads: 2000rpm, rotary
D/A Converter: 16 bit linear
A/D Converter: 16 bit linear
Sampling Frequency: 48, 44.1, 32kHz
Frequency Response: 2Hz to 22kHz
Signal to Noise Ratio: 90dB
Dynamic Range: 90dB
Total Harmonic Distortion: 0.005%
Analogue Inputs: 200mV (line)
Analogue Outputs: 2V (line)
Digital Inputs: coaxial, optical
Digital Outputs: coaxial, optical
Dimensions: 466 x 116 x 367.5mm
Weight: 7.5kg
chayatorn (เข้าชม 2884 | โพสต์ 18 | ตอบ 0 ) (15/04/2565 10:36:03)
โพสต์ที่ 2

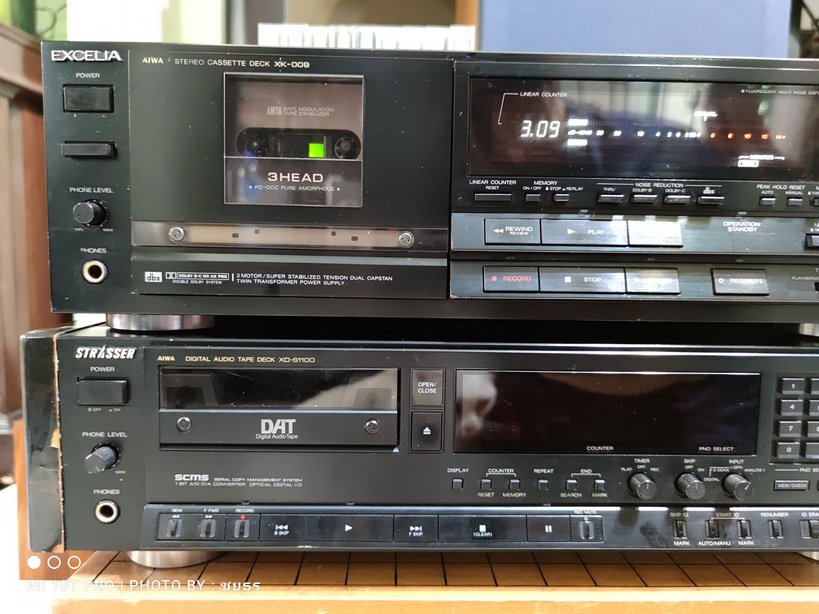

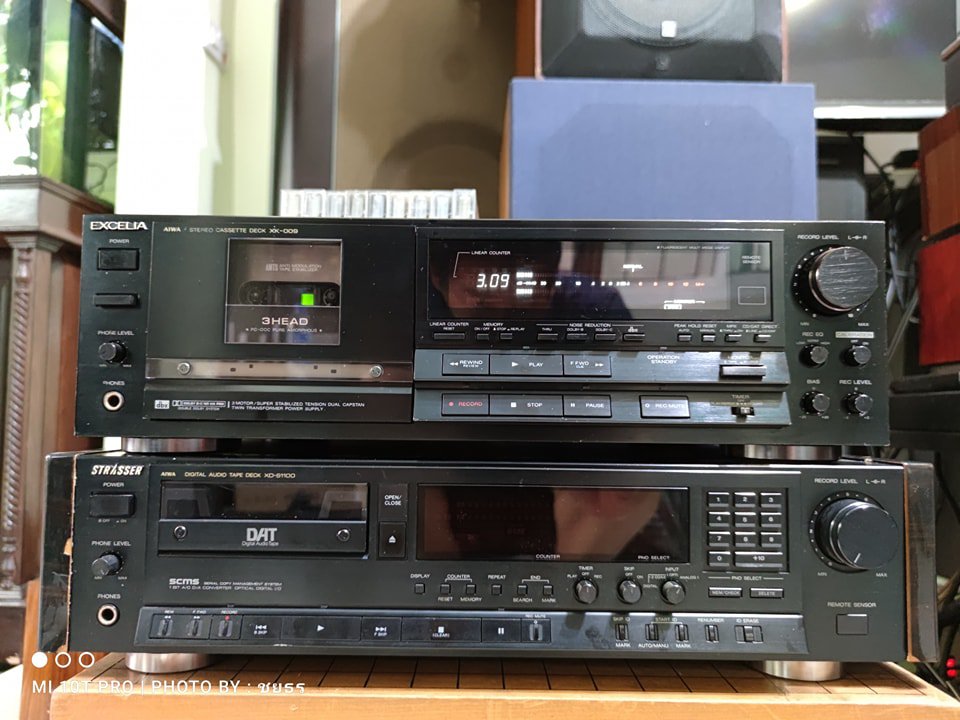

มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้

คู่นี้ อย่างแจ่ม สวย เสียงดี หายากระดับ Rare Item ✌️

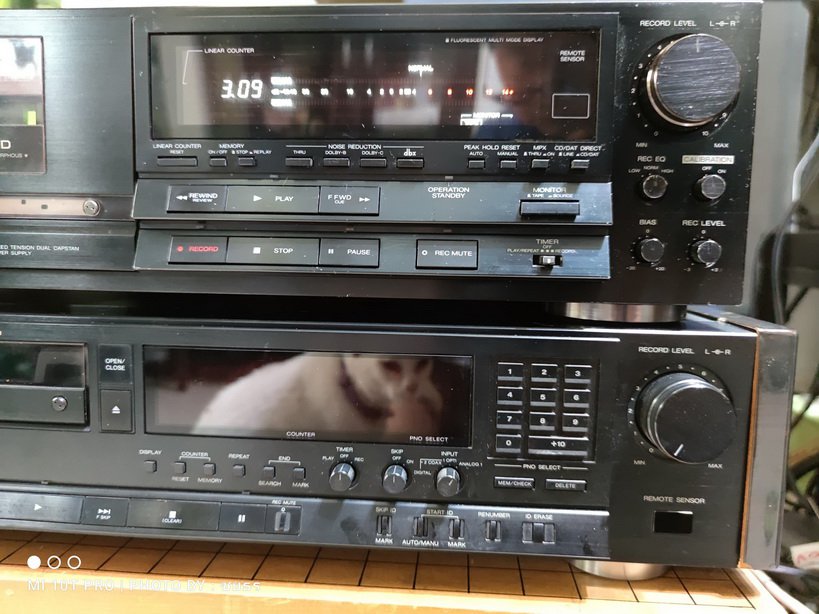

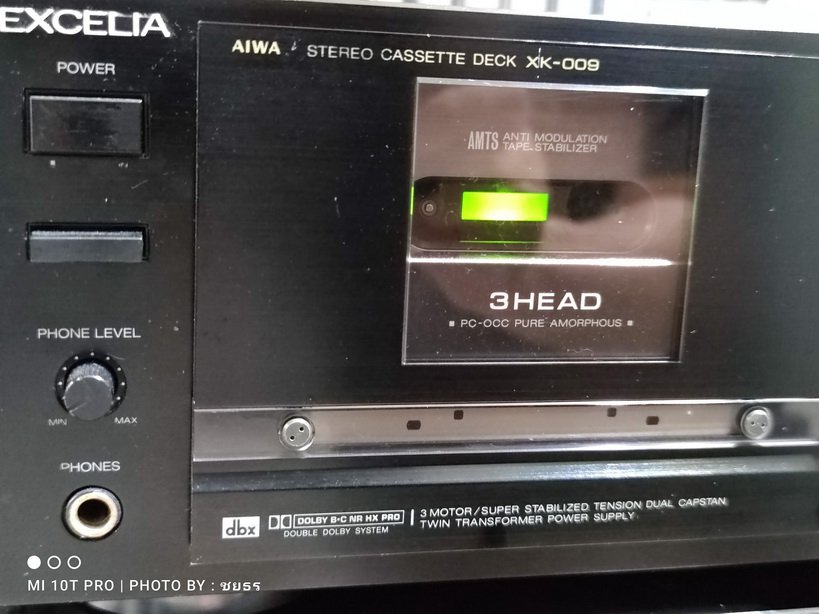

1.ครื่องเล่นเทป 3 หัวเทปรุ่นทอป AIWA - EXCELIA รุ่น Top XK-009
ระบบสามหัวเทป  ฟังก์ชั่น Manual Bias Tuning Record 3 ย่านเสียง  มือเดียวจากต่างประเทศ

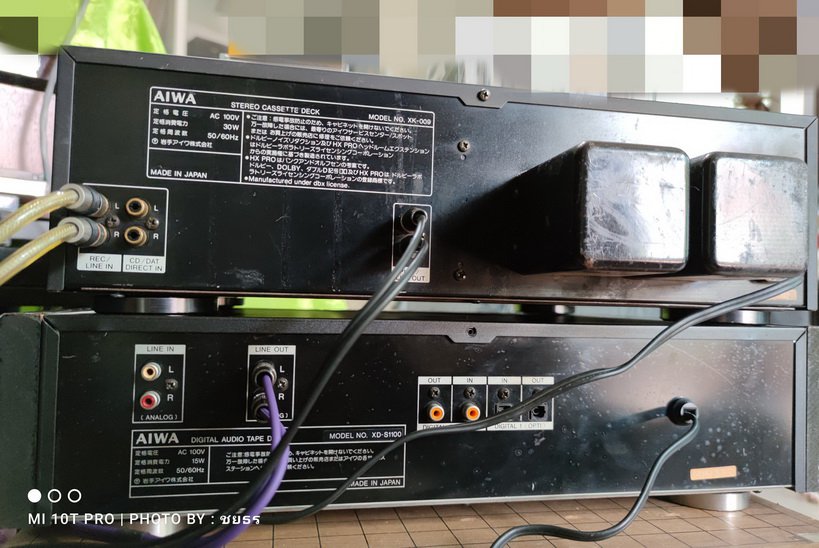

ภาค Transformer Out Put แยกภาค ดิจิทัล อนาลอค จากกันทำให้เสียงดีขึ้น ลดสัญญาณรบกวนระหว่างกัน
ไฟ 220V. เล่น กรอ อัดเสียงปกติ  เสียงดี อบอุ่น  มีภาค Out Put Rca. และ  In put Rca 2 ชุด
(Line in - Cd & Dat Direct in) หน้าปัดสวย ปุ่มทุกปุ่มทำงานดี ไม่มีรวน
รุ่นนี้หายากมากครับ ยิ่งการทำงานสมบูรณ์ๆด้วยแล้วยิ่งหายาก
ราคา 18,500 บ.

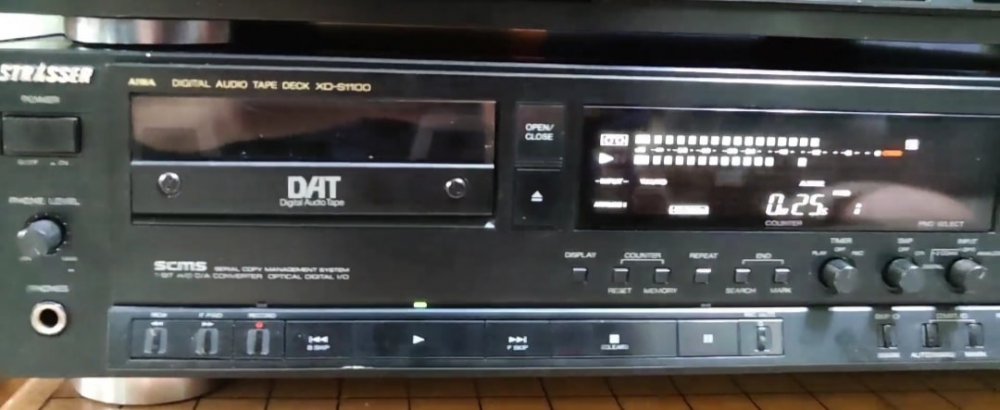

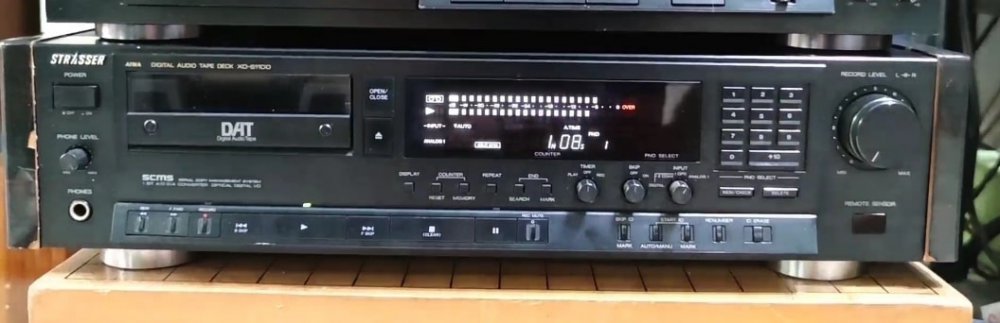

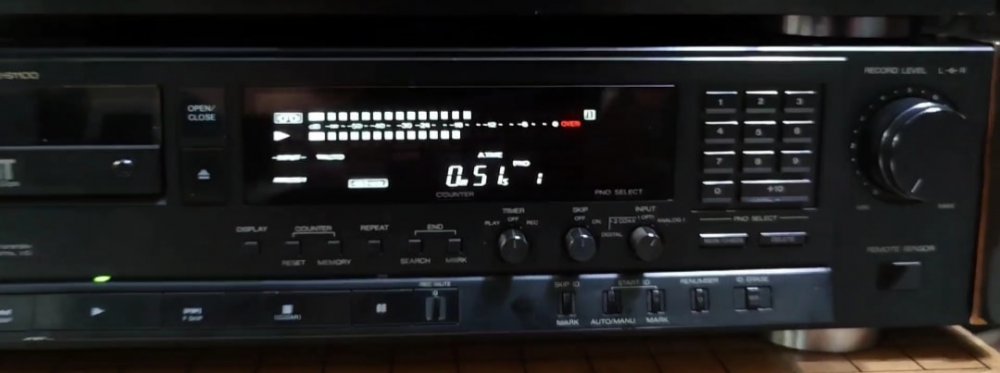

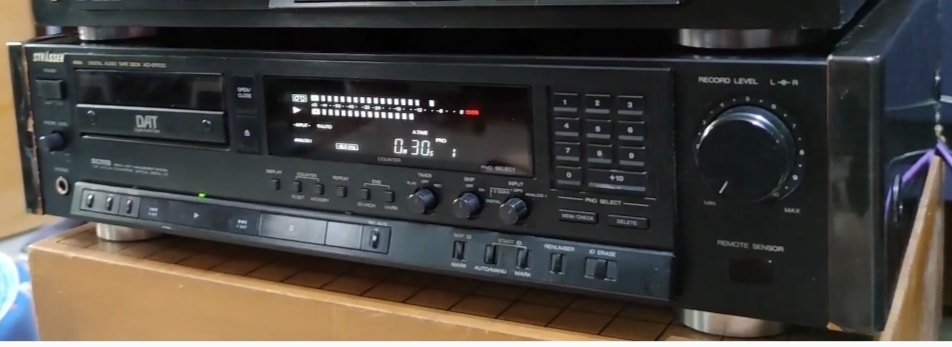

2.เครื่องเล่นเทป Dat รุ่นใหญ่ Aiwa รุ่น XD-S1100
เทปแดท รุ่นใหญ่ ข้างไม้ เสียงดีระดับมาสเตอร์ ให้เนื้อเสียงหนานุ่ม อบอุ่น ไฟสวย ใช้ไฟ 100V. เดิมจากญี่ปุ่น
เล่น กรอ อัด ปกติ ภาค Out Put มีทั้งแบบ Analog RCA.และ ดิจิทัล Optical - Coax
หน้าปัดสวย ปุ่มทุกปุ่มทำงานดีปกติ

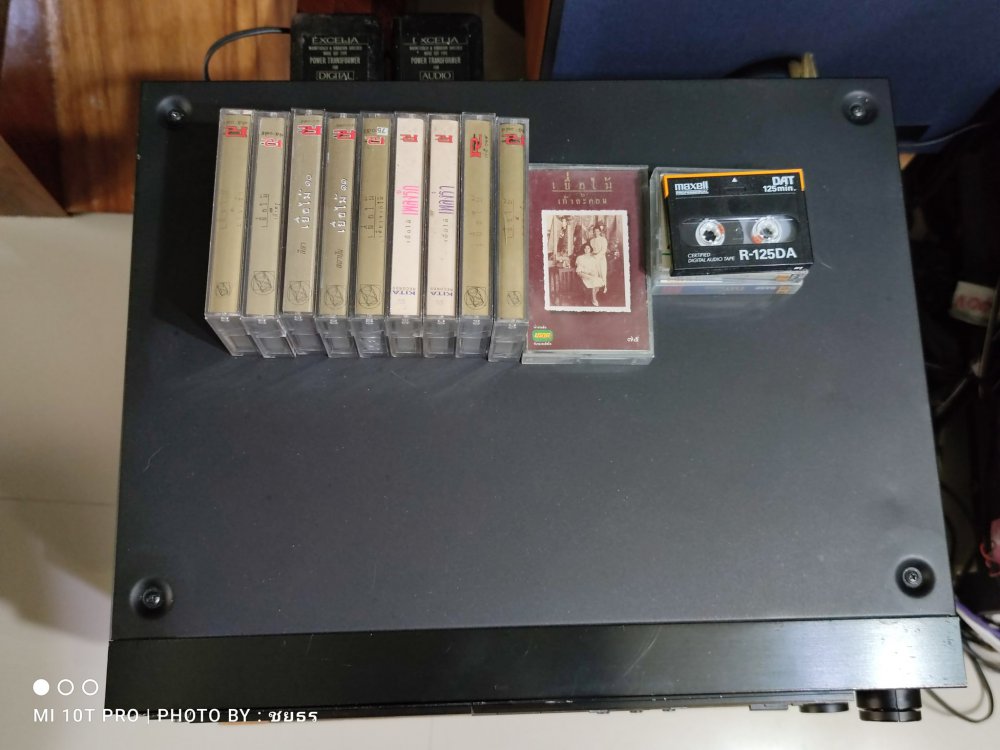

ราคา 12,500 บ. (แถมม้วน Dat ให้ 1 ม้วน มูลค่า 350.-)

สนใจ สอบถามรายละเอียดเพิ่มเติมที่ คุณชยธร
โทร.&Line :: 091-194-5555
เวลา 10.00 - 23.00 น. เท่านั้น

นอกเวลากรุณา SMS จองหน้าเว็บรบกวนโทร,ส่งข้อความบอกเพื่อรักษาสิทธิ์ (ไม่โอนจอง-ไม่มีสิทธิ์จอง)

การส่ง
โทรคุยตกลงกัน รับกับมือจะดีที่สุด ทดลองฟังเสียงที่บ้านได้ (ต้องนัดล่วงหน้า)
ตจว.ส่งให้ได้ ระบบขนส่งเอกชน (นิ่มฯ/เคอรี่  ส่งถึงบ้าน ค่าแพค+ส่ง 300 บาท)
แต่ผมไม่รับรองความเสียหายทุกกรณี เพราะอุบัติเหตุเกิดขึ้นได้เสมอ
ค่าส่งผู้ซื้อจ่ายเอง หากไม่แน่ใจให้หาทางมารับกับมือ
** ของที่ขายเป็นของ VINTAGE ไม่ใช่ของใหม่ "ไม่มีประกัน"**
***ไม่รับเปลี่ยน - คืนของ ***

การจอง โอนเงินซื้อ/จอง
- ธ.ไทยพาณิชย์ บัญชีออมทรัพย์ เลขที่ 2022174366
- ธ.กสิกรไทย บัญชีออมทรัพย์ เลขที่ 6972123666

ขอสงวนสิทธิ์ให้ท่านที่ซื้อสด / จองด้วยการโอนมัดจำ ก่อนจองด้วยวาจาทุกกรณีครับ
ไม่รับจองโดยวาจา ขายให้ผู้พร้อมซื้อ,โอนซื้อ - ไม่ยกไปให้ลอง อยากลองมาลองที่บ้านเท่านั้น
chayatorn (15/04/2565 11:16:00)
โพสต์ที่ 3
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:44:05)
โพสต์ที่ 4
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:47:08)
โพสต์ที่ 5
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:47:24)
โพสต์ที่ 6
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:47:37)
โพสต์ที่ 7
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:48:30)
โพสต์ที่ 8
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:48:41)
โพสต์ที่ 9
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:49:08)
โพสต์ที่ 10
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:49:19)
โพสต์ที่ 11
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:49:36)
โพสต์ที่ 12
มากันเป็น Set เครื่องเล่นเทป 3 หัวเทปรุ่นทอป และ เครื่องเล่นเทป DAT AIWA สวย พร้อมใช้
chayatorn (15/04/2565 11:50:09)
โพสต์ที่ 13
ขอขอบคุณทุกท่านที่ไว้วางใจ และสนับสนุนเสมอมา หากโหวตให้ด้วยก็ขอขอบคุณมากครับ

ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
https://www.facebook.com/SmartVintage

ของที่ขายทุกชิ้นชอบเป็นการส่วนตัว พยายามคัดเลือกรุ่น-สภาพที่ดีมาสะสม
ของบางรุ่นเป็นรุ่นที่คุ้มค่าเมื่อเทียบกับรุ่นอื่นในราคาเดียวกัน
บางรุ่นเป็นรุ่น Top ที่ท่านไม่ต้องลองผิดลองถูก ไม่ต้องซื้อๆ-ขายๆ Short Cut ในการเล่นได้เลย
ของที่ฝากขาย ส่วนมากผู้ฝากจะขายราคาต่ำกว่าที่ซื้อมา ผมได้เทสว่าสมบูรณ์แล้วจึงลงขายให้ครับ
สนใจติดต่อ ชยธร 091-194-5555 เฉพาะเวลา 10.00-23.00 น. เท่านั้น (นอกเวลารบกวน sms)
**ของทุกชิ้นไม่ได้บอกราคามากๆเพื่อมาลดเยอะๆ ดังนั้นหากท่านจะมารับของเองแล้วต่อราคาเยอะๆ กรุณาอย่ามา เพราะจะเสียเวลา - ของชิ้นไหนระบุว่าไม่ลด-งดต่อ ก็กรุณาอย่าต่อ **
***ภาพจริงทุกภาพ ไม่มีการตกแต่งภาพให้สวยเกินจริง ภาพไหนเป็นภาพแทนจะระบุไว้ให้ทราบ***
****สำหรับนักเล่นที่ซื้อของผมไปหากต้องการช่างผู้ชำนาญการในการบำรุงรักษายินดีแนะนำให้ครับ****
ของ Vintage อาจจุกจิกเรื่องการดูแลบ้าง แต่ทุกเครื่องหากรักษาและใช้แบบถนอมก็อยู่ได้ยาวนาน อาจมีต้องซ่อมบำรุงบ้างเป็นธรรมดาของใหม่ก็มีโอกาสเสีย
แต่สิ่งที่ท่านจะหาไม่ได้จากของใหม่ๆก็คือ "คุณค่า" ที่แม้ท่านมีเงินมากแค่ไหน ก็กำเงินเข้าร้านทั่วๆไปหาซื้อไม่ได้ "ถ้าไม่มีคนขาย"

*****ยินดีรับแลกเปลี่ยนเครื่องเสียง เพื่อแบ่งปันประสบการณ์ในการฟัง ตามตกลงครับ*****

เงื่อนไขการเทิร์น
- ของที่มาเทิร์นต้องสภาพสมบูรณ์ ไม่เสีย สภาพสวยจะดีมาก และมาส่งให้ที่บ้านผมเท่านั้น
- ของที่ซื้อไปเอามาเทิร์นได้โดยหักค่าเสื่อม 30% ของราคาที่ซื้อไป และคิดราคาของที่ท่านอยากมาเทิร์นในราคาเต็ม
- ทั้งหมดอยู่ที่ความพอใจ ขอสงวนสิทธิ์ไม่รับเทิร์นได้ทุกรณี
- ท่านที่เทิร์นของเปลี่ยนไปมา ขอความกรุณาอย่าทำ
chayatorn (15/04/2565 11:50:55)
โพสต์ที่ 14
ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
https://www.facebook.com/SmartVintage
chayatorn (15/04/2565 11:51:13)
โพสต์ที่ 15
พบเครื่องเสียงอีกหลายรายการครับ
http://www.hifi55.com/index.php?cat=2&id=20740
chayatorn (15/04/2565 11:51:26)
โพสต์ที่ 16
ตัวอย่างคลิป เทสระบบ ลองชมและฟังประกอบการตัดสินใจครับ
*คลิปจากมือถือ ไม่สามารถเก็บรายละเอียด-ความถี่เสียงได้ครบ สู้การฟังจากหูไม่ได้ครับ*

https://www.facebook.com/SmartVintage/videos/1204458050291521

https://www.facebook.com/SmartVintage/videos/520803786124593

https://www.facebook.com/SmartVintage/videos/3105243509793211

https://www.facebook.com/SmartVintage/videos/511486070485604

https://www.facebook.com/SmartVintage/videos/737176494112853

https://www.facebook.com/SmartVintage/videos/4889065081191027
chayatorn (15/04/2565 12:10:18)
โพสต์ที่ 17
DAT AIWA ขายแล้วครับ
chayatorn (18/06/2565 13:12:54)
โพสต์ที่ 18
tape AIWA ขายแล้วครับ
chayatorn (07/10/2565 21:52:51)
www.hifi55.com Copyright
