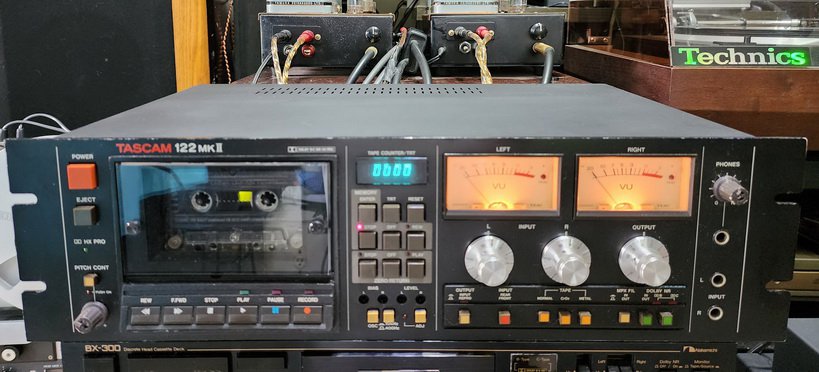

ขายเครื่องเล่นเทปรุ่นใหญ่ TASCAM 122 MarkII ระบบ 3 หัวเทป Made in Japan
ขายเครื่องเล่นเทปรุ่นใหญ่ TASCAM 122 MarkII ระบบ 3 หัวเทป Made in Japan
.... รีวิวร์จากต่างประเทศ และเสปคเครื่องครับ ...
This Tascam 122mkII is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction,
it was first sold by Tascam in 1987 with a list price of USD $1,100 and discontinued 6 years
later in 1993.
The main features of the Tascam 122mkII are: 3 heads and no off-tape monitoring to save
production cost, digital tape counter with 4 digits, manual tape type selection and capable
of handling normal, chrome and metal tapes, single capstan transport.

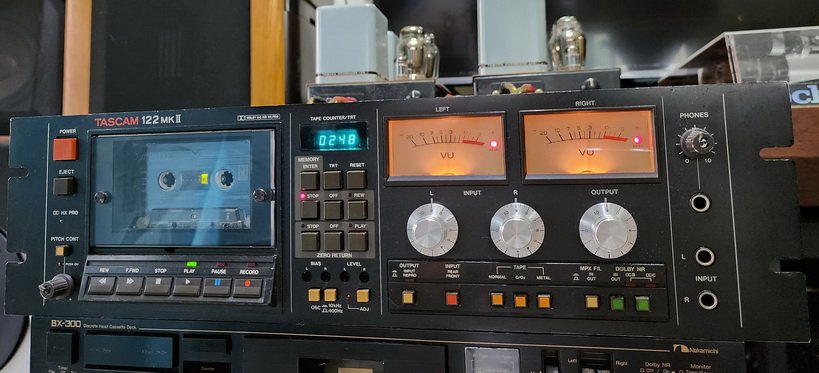

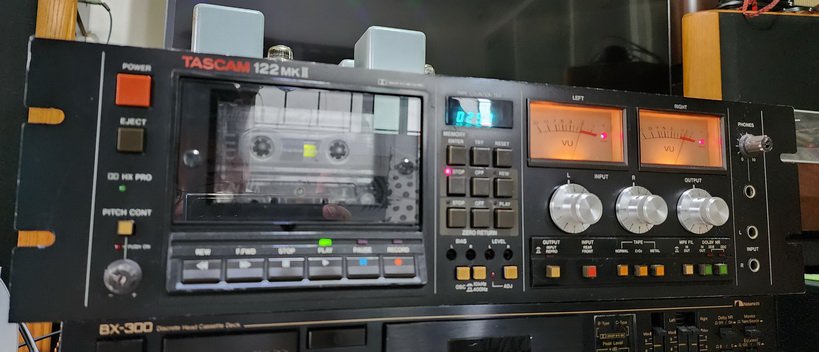

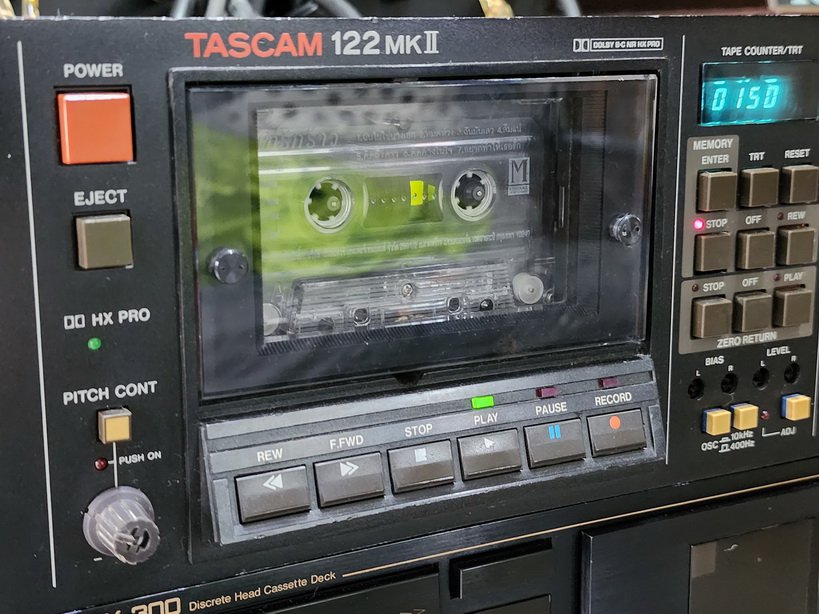

Typical front loading cassette deck with the cassette compartiment located on the left side of
the deck. Tape eject is operated mechanically and the cassette needs to be placed with the
side to be played facing forward in the cassette well.

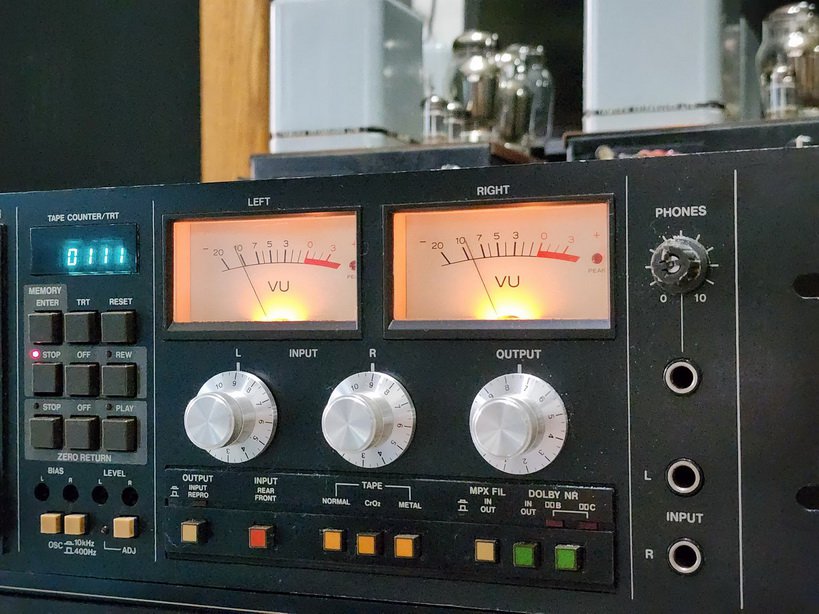

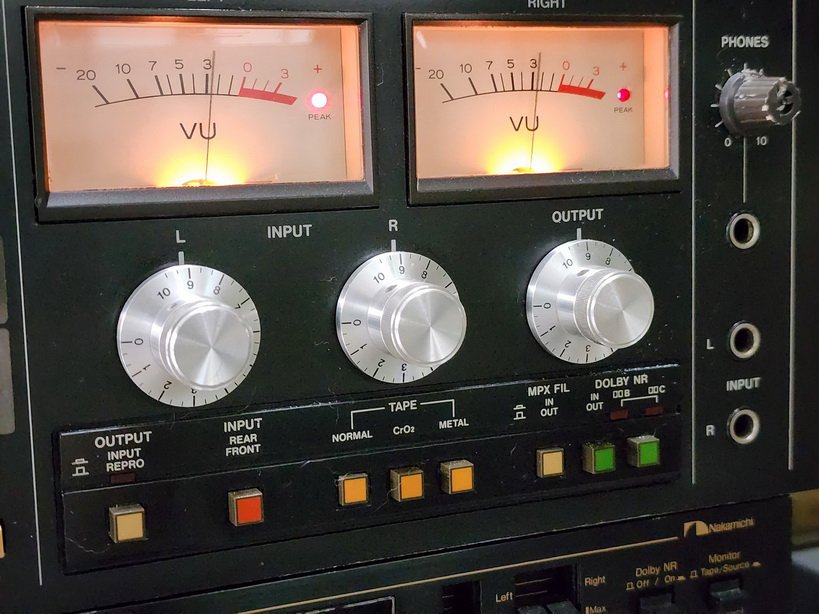

Level meters used on the 122mkII are analog needle VU reading meters with peak indicator
for easy adjustment of optimum recording level. Full-logic transport controls used on the
122mkII let it respond to the slightest finger contact for fast and effortless transport function selection.
Playback speed may be adjusted with pitch control.
To ensure the best response from the wide variety of tapes available adjustment of, bias
and sensitivity, to optimum levels can be performed prior to recording.
Dolby C-type used in the 122mkII provides 20 dB of noise reduction above about 1,000 Hz,
fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias
control during recording to reduce distortion and improve linearity in the high-frequency range,
the result is recorded sound that is highly faithful to the original. The 19kHz multiplex pilot slgnal
present in FM stereo broadcasts can cause false triggering of the noise reduction system.
The switchable MPX filter of the 122mkII filters out the pilot signal, and assuring proper Dolby
processing of FM stereo programs.
To make live recordings this deck has 2 microphone inputs to connect microphones with a
jack connector. For undisturbed listening a jack connector for a pair of stereo headphones

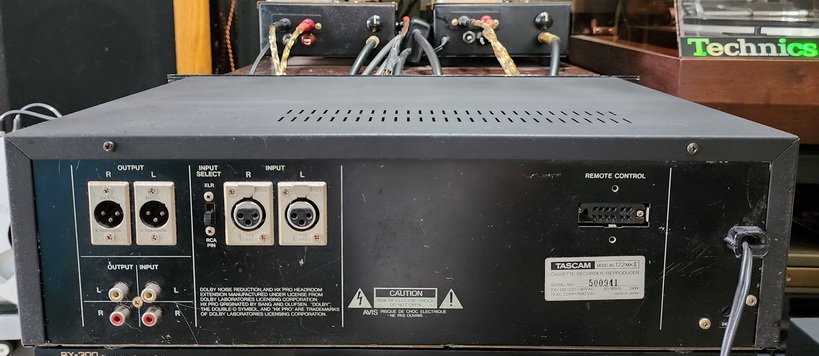

is supplied. Connection to other audio components for plaback can be achieved by a RCA or
XLR cable and recording from a source by a RCA or XLR cable. All main transport commands
can be issued remotely with a wired remote control.
Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: 1 x capstan, 1 x reel, 1 x ancillary
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 25Hz to 20kHz (Metal tape)
Signal to Noise Ratio: 78dB (dolby C)
Wow and Flutter: 0.08%
Total Harmonic Distortion: 1%
Input: 126mV (line)
Output: 0.3V (line)
Dimensions: 482 x 133 x 297mm
Weight: 7.7kg.
