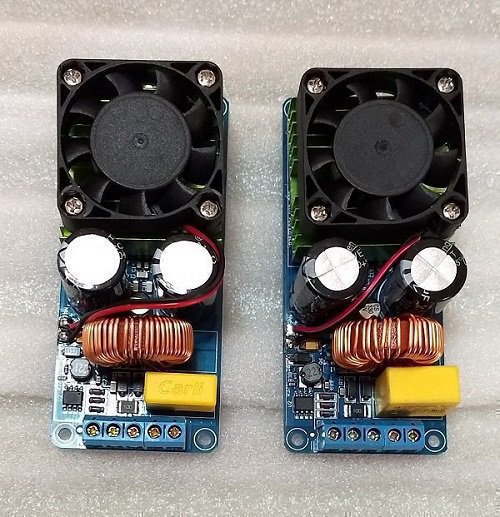

IRS2092S 500W Mono Channel Digital Class D
IRS2092S 500W Mono Channel Digital Class D

Parameters:
 1. Power supply: dual DC power supply ± 58 --- ± 70V
 2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)
 3. Efficiency:> = 90%
 4. SNR: 90dB
 5. The total harmonic distortion:
     -380W (± 65 power 4 ohm speaker, distortion <0.1%)
     -280W (± 65 power 8 ohm speaker, distortion <0.1%)
 6. Frequency range: 20Hz-20KHz
 7. Speaker: 4-8Ω
 8. Voltage Magnification: 36 times
 9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection: Yes
11. That output DC bias protection speaker protection: Yes
12. Over-temperature protection: radiator FET temperature higher than 100° C,turn off the output!
13. Amplifier board size: length x width x height = 98x43x30mm

เป็นของใหม่
ขาย 1 คู่ 1070 ส่ง 70-
Tel.081-4094600
chatch (เข้าชม 573 | โพสต์ 4 | ตอบ 0 ) (01/01/2566 15:16:06)
โพสต์ที่ 2

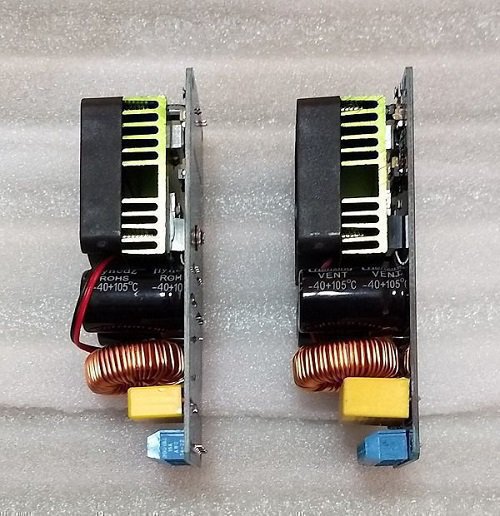

IRS2092S 500W Mono Channel Digital Class D
chatch (01/01/2566 15:19:19)
โพสต์ที่ 3

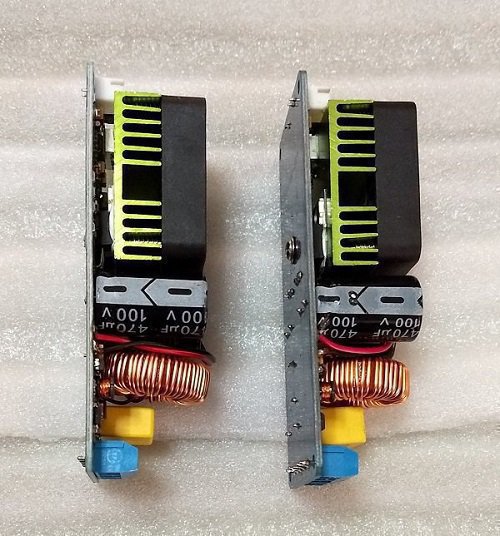

IRS2092S 500W Mono Channel Digital Class D
chatch (01/01/2566 15:19:55)
โพสต์ที่ 4

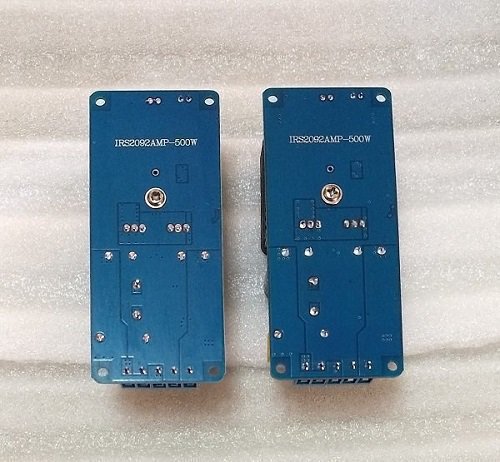

IRS2092S 500W Mono Channel Digital Class D
chatch (01/01/2566 15:20:36)
