เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan

ไปอ่านรีวิวร์จากต่างประเทศกันก่อนนะครับ ...

Pioneer D-HS5 ¥ 99,000 (released in late October 1996)
Explanation

DAT deck equipped with Hi-bit and Legato link conversion S.

The sampling frequency has been raised to 96 kHz, twice that of the conventional one, and it
 is equipped with high sampling (HS) mode which enables wide-band recording and playback of up to 44 kHz.
The rotation speed of the tape-speed drum has been increased to twice that of the conventional one, eliminating unnecessary ringing.

In order to achieve more faithful reproduction of the original sound, it is equipped with Hi-bit technology that focuses on minute level signals less than the number of quantization bits.
By re-quantizing 16-bit DAT data to 24-bit data, the dynamic range is theoretically expanded
and quantization distortion is proposed to reproduce smooth waveforms.

It is equipped with Legato link conversion S which can reproduce the component over 20 khz
even in the standard mode.
Based on the 1/f attenuation characteristics, the waveform of the original signal is estimated
and reproduced for the component of 20 kHz or higher. In addition, an independent harmonic generation circuit is added to reproduce the overtones, and the reproduction band is expanded
by adding them together with the time axis.

Equipped with DAC mode which can only use D/A converter function with Hi-bit Legato Link Conversion S.

An advanced 1-bit D/A converter is used for the D/A converter.

It is equipped with a character pack function that can record information such as song
 name, performer name and source title up to 60 characters in the start ID part of each
song. The recorded information is scrolled on the display at the start of each song.

It is equipped with a one day timer recording function. By inputting the current time, start time
and end time, it is possible to record without an external timer.

It is equipped with a CD-Q code synchronized start ID recording function. When recording
digital input from a CD, the start ID is automatically recorded, and even if there is no silence between songs, the start ID is recorded reliably, eliminating the recording error of the start ID.

Equipped with a TOC recording / playback function, the number of recorded songs and time
data of each song are recorded at the beginning of the tape, and the management, operation
and operation of recorded information like CD are possible.

Equipped with the last memory function, the settings of Auto ID, DAC mode and input
switching are memorized when the power is turned off.

Equipped with 96 kHz High Sampling (HS) mode, 48 kHz Standard (SP) mode, 32 kHz
Long Duration (LP) mode and 44.1 kHz Standard (SP) analog recording mode at the
same frequency as CD.

The head uses a high-output AT head, and the signal reading ability is improved by adopting
an all-track structure, improving abrasion resistance by glass welding, and ensuring stable
tape touch by special polishing processing of the gap.

It is equipped with anti-vibration and anti-vibration measures such as panel stabilizer
with protective rubber, honeycomb chassis, large insulator, bonnet anti-vibration structure,
etc.

Model Rating
Type Digital audio tape deck
Number of Heads 2
A/D converter 1-bit wide range linear
D/A converter Advanced 1 Bit
Tape Speed 8.15mm/s (SP), 4.075mm/s (LP), 16.3mm/s (HS)
Recording time (120 minutes when using tape) SP : up to 120 minutes
LP : up to 240 minutes
HS : up to 60 minutes
Number of quantization bits 16-bit linear
12-bit Nonlinear
Recording and re-frequency characteristics SP : 5 Hz to 22 kHz
LP : 5 Hz to 14.5 kHz
HS : 5 Hz to 44 kHz
Signal-to-noise ratio 92 dB or more
Dynamic range 92 dB or more
Total harmonic distortion factor 0.0045% or Less (1 kHz)
Wow flutter Measurement limit (± 0.001% W · Peak) or less
Analog input / output terminal Line input : RCA Pin, 1 line, 500 mv
Line output : RCA Pin, 1 line, 500 mv
Digital input / output terminal Coaxial input terminal : RCA Pin, one system, 0.5Vp-p
Coaxial output terminal : RCA Pin, one system, 0.5Vp-p
Optical input / output terminal : 1 system each
Power supply voltage 100 VAC, 50Hz/60Hz
Power consumption 17W
Maximum external dimensions Width 440x Height 147x Depth 383 mm
Weight 6.5kg
chayatorn (เข้าชม 1489 | โพสต์ 13 | ตอบ 0 ) (04/02/2566 19:29:02)
โพสต์ที่ 2
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan

เครื่องเล่นเทป DAT ซึ่งมีคุณภาพเสียงระดับสตูดิโอที่คุณไม่ควรพลาดในการเปิดประสบการณ์ในการฟังเพลง
ได้ความอนาลอคแบบเทป แต่ได้เรนจ์เสียงแบบดิจิทัลระดับ 48kHz  ช่วงกว้างเสียงกว้างถึง 5Hz~22kHz
และสามารถอัดเสียงและเล่นแบบ Analog ที่ระดับ 96kHz ได้เพื่อความอิ่มของเสียงและดีเทลที่มากขึ้น ตามการ
จดลิขสิทธิ์เฉพาะยี่ห้อ Pioneer ที่หาฟังจากยี่ห้ออื่นไม่ได้ การทำงานสมบูรณ์ทั้งฟังก์ชั่นเล่น และ อัดเทป
ระบบการค้นหาเพลงไวแบบซีดี ด้วยระบบ Auto ID เทปจะลงรหัสดิจิทัลระหว่างเพลงที่บันทึกเพื่อการค้นหาที่ไวมาก
รองรับสัญญาณเข้าแบบ อนาลอค (RCA In) และ Digital Coax + Optical In รวมถึงสัญาณออกทั้ง 3 Out Put
ปุ่มกดด้านหน้าทำงานดีปกติ หัวเทปยังใสปิ๋ง ทนทานมาก (เฉลี่ยการใช้งานระดับ 5,000 ชม.) ไฟ 100V. เดิมๆ

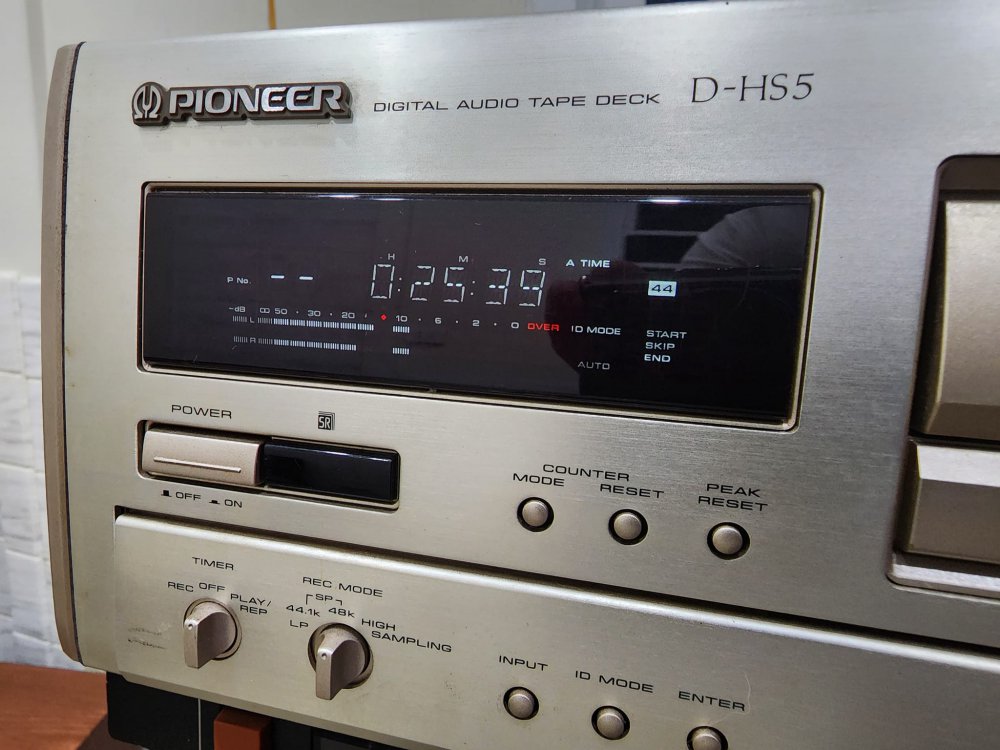

หน้าปัดสวย ไฟสวยมีเสกลระดับเสียงขณะเล่นและอัดเทป  ใครยังไม่เคยลองแนะนำให้ลองครับ
รุ่นนี้ยังพิเศษกว่ารุ่นอื่นที่ใช้การไวริ่ง สัญญาณภาค  DAC ด้วยสายคุณภาพสูงยี่ห้อ Legato ในระบบด้วยครับ
ออกขายใหม่ ๆ ราคาเครื่องเกือบแสนเยน หรือประมาณ 3 หมื่นกว่าบาท
แถมม้วนเทป DAT ให้ 1 ม้วน ไปฟังและไปอัดเล่นครับ  (ราคาม้วนมือสองประมาณ 300 บ.)
ราคา 12,500 บาท  (ราคาไม่รวมส่ง)

สะดวกให้มาฟัง เฉพาะ ส-อา. (จ.นนทบุรี)
สะดวกส่งของแค่วัน ส.,อา.,จันทร์ เท่านั้น

สนใจ สอบถามรายละเอียดเพิ่มเติมที่ คุณชยธร
โทร.&Line :: 0911945555

การส่ง
โทรคุยตกลงกัน รับกับมือจะดีที่สุด ทดลองฟังเสียงที่บ้านได้ (ต้องนัดล่วงหน้า)
ตจว.ส่งให้ได้ ระบบขนส่งเอกชน (นิ่มฯ/เคอรี่  ส่งถึงบ้าน ค่าแพค+ส่ง 300 บาท)
แต่ผมไม่รับรองความเสียหายทุกกรณี เพราะอุบัติเหตุเกิดขึ้นได้เสมอ
ค่าส่งผู้ซื้อจ่ายเอง หากไม่แน่ใจให้หาทางมารับกับมือ
** ของที่ขายเป็นของ VINTAGE ไม่ใช่ของใหม่ "ไม่มีประกัน"**
***ไม่รับเปลี่ยน - คืนของ ***

การจอง โอนเงินซื้อ/จอง
- ธ.ไทยพาณิชย์ บัญชีออมทรัพย์ เลขที่ 2022174366
- ธ.กสิกรไทย บัญชีออมทรัพย์ เลขที่ 6972123666

ขอสงวนสิทธิ์ให้ท่านที่ซื้อสด / จองด้วยการโอนมัดจำ ก่อนจองด้วยวาจาทุกกรณีครับ
ไม่รับจองโดยวาจา ขายให้ผู้พร้อมซื้อ,โอนซื้อ - ไม่ยกไปให้ลอง อยากลองมาลองที่บ้านเท่านั้น
chayatorn (04/02/2566 19:34:11)
โพสต์ที่ 3
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan

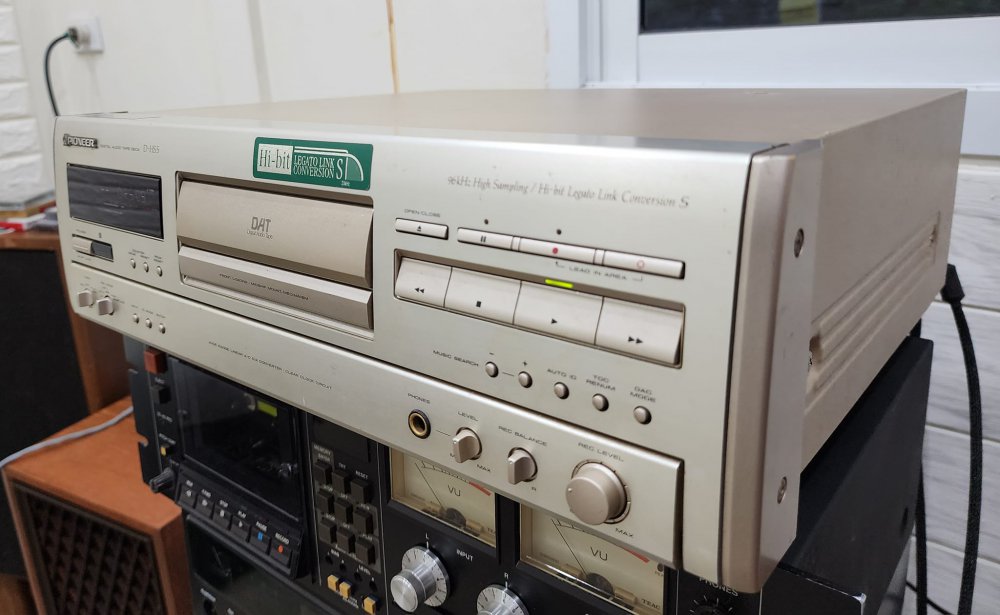

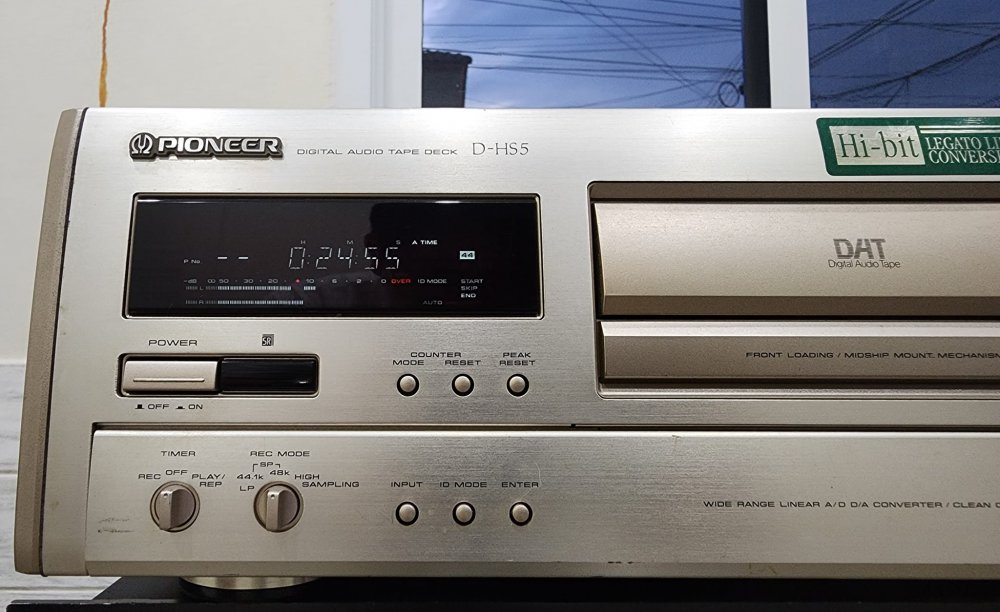

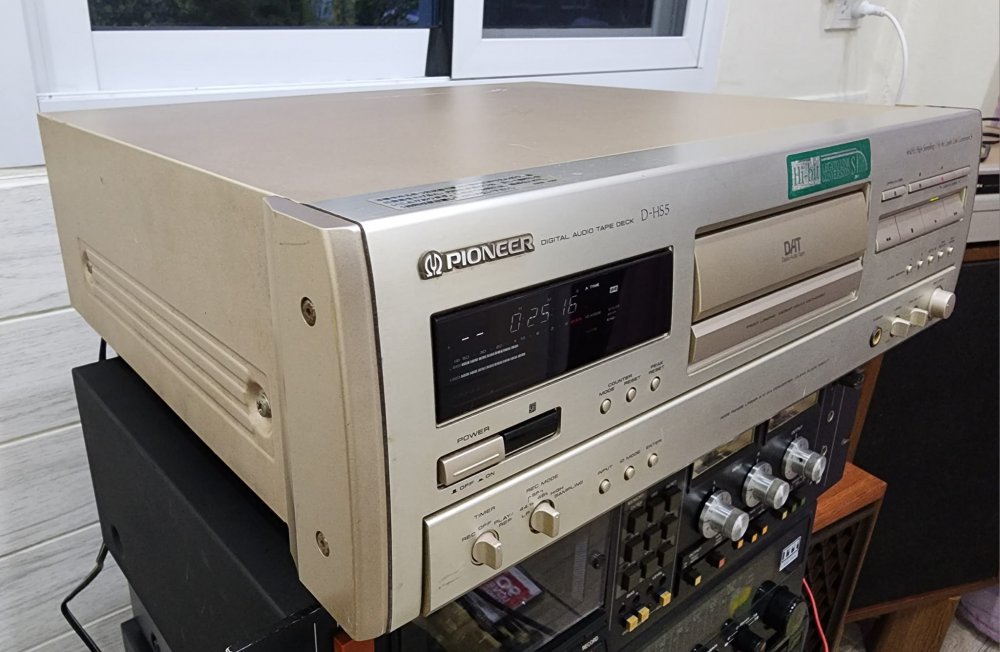

ตัวเครื่องสีทองแชมเปญสวยงาม หน้าปัดจอดิจิทัล สวย
chayatorn (04/02/2566 19:34:42)
โพสต์ที่ 4
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan
chayatorn (04/02/2566 19:35:07)
โพสต์ที่ 5
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan
chayatorn (04/02/2566 19:35:29)
โพสต์ที่ 6
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan

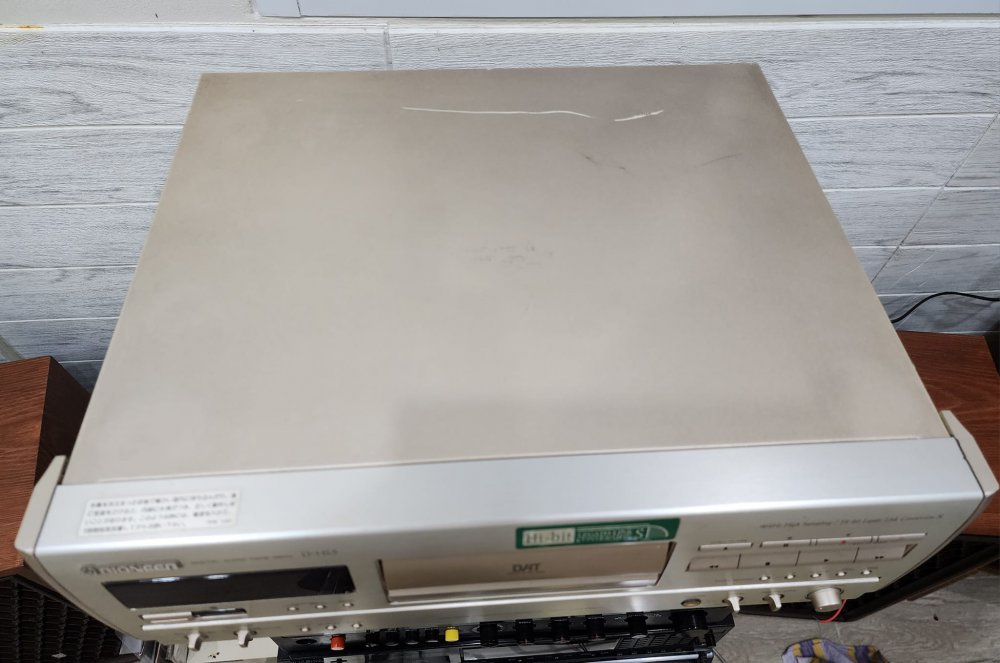

บอดี้โดยรวมสวยครับ มีริ้วรอยการใช้งานบ้าง
chayatorn (04/02/2566 19:36:11)
โพสต์ที่ 7
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan
chayatorn (04/02/2566 19:36:26)
โพสต์ที่ 8
เครื่องเล่นเทป DAT : PIONEER D-HS5 เสียงดีมาก สวย สมบูรณ์ Made in Japan

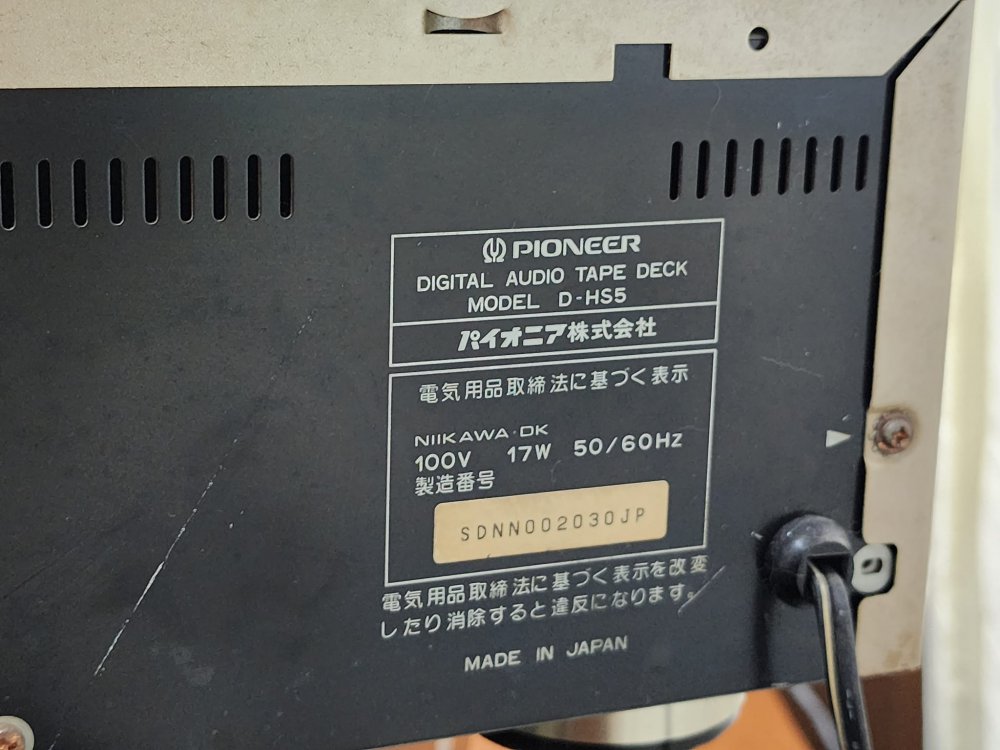

Made in Japan
chayatorn (04/02/2566 19:36:47)
โพสต์ที่ 9
ขอขอบคุณทุกท่านที่ไว้วางใจ และสนับสนุนเสมอมา หากโหวตให้ด้วยก็ขอขอบคุณมากครับ

ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
https://www.facebook.com/SmartVintage

ของที่ขายทุกชิ้นชอบเป็นการส่วนตัว พยายามคัดเลือกรุ่น-สภาพที่ดีมาสะสม
ของบางรุ่นเป็นรุ่นที่คุ้มค่าเมื่อเทียบกับรุ่นอื่นในราคาเดียวกัน
บางรุ่นเป็นรุ่น Top ที่ท่านไม่ต้องลองผิดลองถูก ไม่ต้องซื้อๆ-ขายๆ Short Cut ในการเล่นได้เลย
ของที่ฝากขาย ส่วนมากผู้ฝากจะขายราคาต่ำกว่าที่ซื้อมา ผมได้เทสว่าสมบูรณ์แล้วจึงลงขายให้ครับ
สนใจติดต่อ ชยธร 091-194-5555 เฉพาะเวลา 10.00-23.00 น. เท่านั้น (นอกเวลารบกวน sms)
**ของทุกชิ้นไม่ได้บอกราคามากๆเพื่อมาลดเยอะๆ ดังนั้นหากท่านจะมารับของเองแล้วต่อราคาเยอะๆ กรุณาอย่ามา เพราะจะเสียเวลา - ของชิ้นไหนระบุว่าไม่ลด-งดต่อ ก็กรุณาอย่าต่อ **
***ภาพจริงทุกภาพ ไม่มีการตกแต่งภาพให้สวยเกินจริง ภาพไหนเป็นภาพแทนจะระบุไว้ให้ทราบ***
****สำหรับนักเล่นที่ซื้อของผมไปหากต้องการช่างผู้ชำนาญการในการบำรุงรักษายินดีแนะนำให้ครับ****
ของ Vintage อาจจุกจิกเรื่องการดูแลบ้าง แต่ทุกเครื่องหากรักษาและใช้แบบถนอมก็อยู่ได้ยาวนาน อาจมีต้องซ่อมบำรุงบ้างเป็นธรรมดาของใหม่ก็มีโอกาสเสีย
แต่สิ่งที่ท่านจะหาไม่ได้จากของใหม่ๆก็คือ "คุณค่า" ที่แม้ท่านมีเงินมากแค่ไหน ก็กำเงินเข้าร้านทั่วๆไปหาซื้อไม่ได้ "ถ้าไม่มีคนขาย"

*****ยินดีรับแลกเปลี่ยนเครื่องเสียง เพื่อแบ่งปันประสบการณ์ในการฟัง ตามตกลงครับ*****

เงื่อนไขการเทิร์น
- ของที่มาเทิร์นต้องสภาพสมบูรณ์ ไม่เสีย สภาพสวยจะดีมาก และมาส่งให้ที่บ้านผมเท่านั้น
- ของที่ซื้อไปเอามาเทิร์นได้โดยหักค่าเสื่อม 30% ของราคาที่ซื้อไป และคิดราคาของที่ท่านอยากมาเทิร์นในราคาเต็ม
- ทั้งหมดอยู่ที่ความพอใจ ขอสงวนสิทธิ์ไม่รับเทิร์นได้ทุกรณี
- ท่านที่เทิร์นของเปลี่ยนไปมา ขอความกรุณาอย่าทำ
chayatorn (04/02/2566 19:37:20)
โพสต์ที่ 10

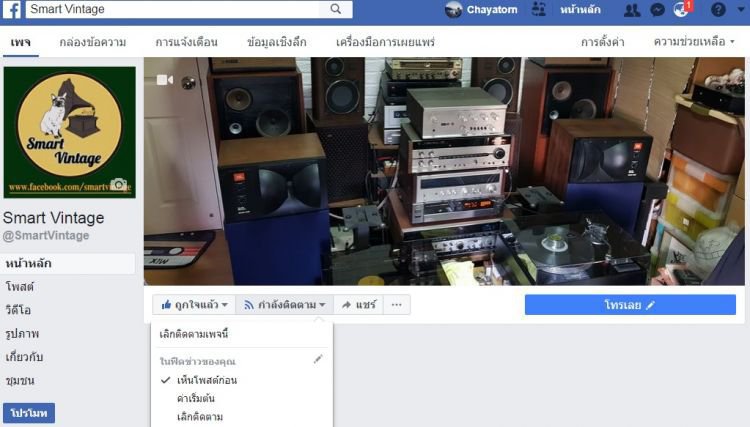

ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
https://www.facebook.com/SmartVintage
chayatorn (04/02/2566 19:37:48)
โพสต์ที่ 11
พบเครื่องเสียงอีกหลายรายการครับ
http://www.hifi55.com/index.php?cat=2&id=20740
chayatorn (04/02/2566 19:38:07)
โพสต์ที่ 12
ตัวอย่างคลิป เทสระบบ ลองชมและฟังประกอบการตัดสินใจครับ
*คลิปจากมือถือ ไม่สามารถเก็บรายละเอียด-ความถี่เสียงได้ครบ สู้การฟังจากหูไม่ได้ครับ*

https://www.facebook.com/SmartVintage/videos/452334560423597
chayatorn (04/02/2566 19:40:40)
โพสต์ที่ 13
=== รายการนี้ ขายแล้วครับ SOLD OUT ===
