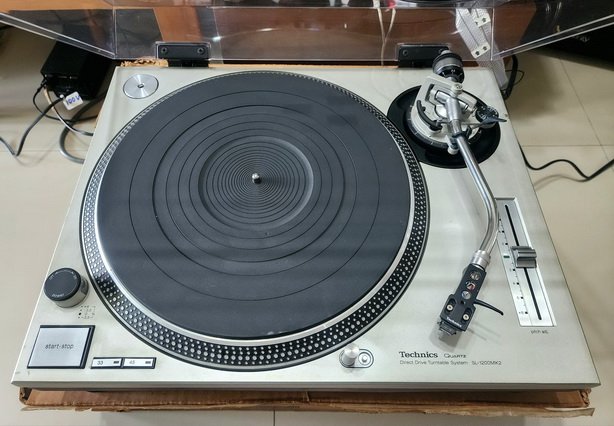

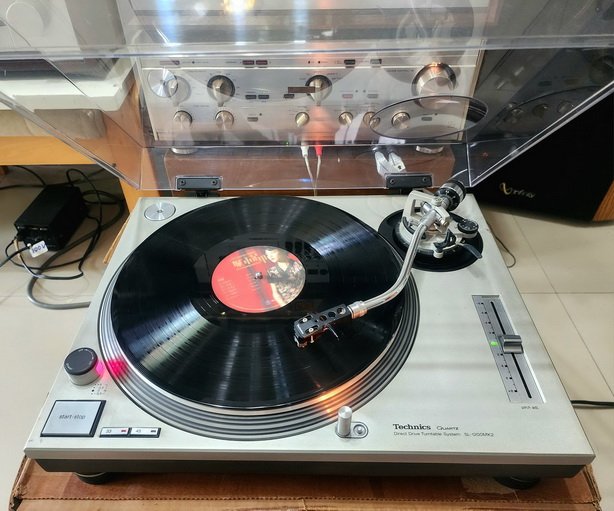

A direct drive player that uses a quartz synthesizer continuous pitch control method.
The quartz synthesizer continuous pitch control method allows the pitch to be continuously
changed in the range of ± 8% while the quartz lock is applied.
The all-round detection FG is adopted, and the detection signal is more accurate than the
single-point detection method because detection is performed around the entire circumference
of the rotation axis.
In addition, the motor adopts a one-piece structure D.D. motor.

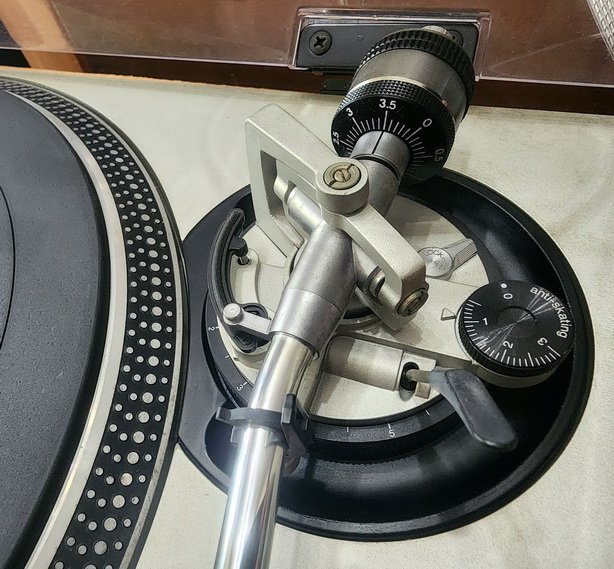

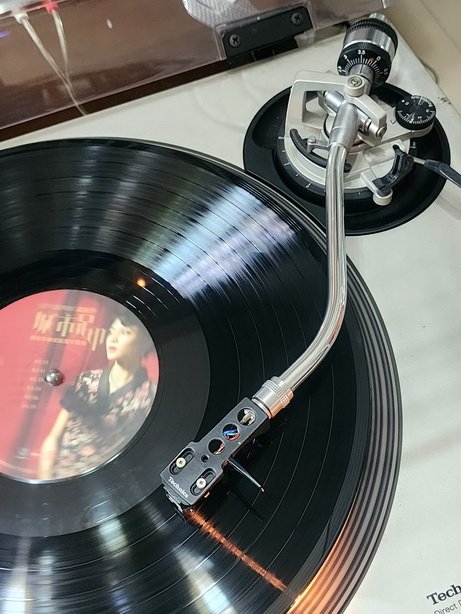

It uses a gimbal suspension system to achieve an excellent initial sensitivity of 7 mg
both horizontally and vertically.
It is equipped with an arm height adjustment mechanism with a locking mechanism and
a height adjustment cylinder with a precision helicoid finish that allows fine adjustment within
a range of 6 mm.

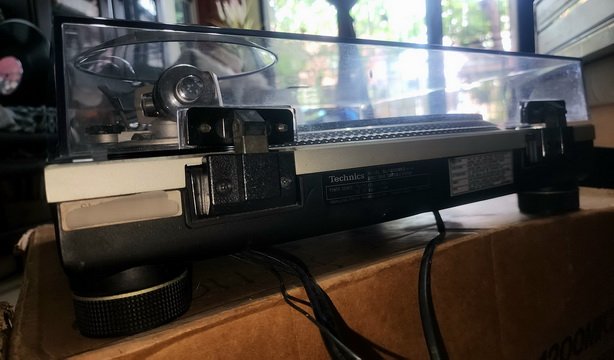

The upper part of the cabinet is made of die-cast aluminum, and the lower part is integrally
molded of heavy-weight special rubber with high vibration damping rate and excellent
vibration isolation characteristics, providing excellent vibration isolation performance.

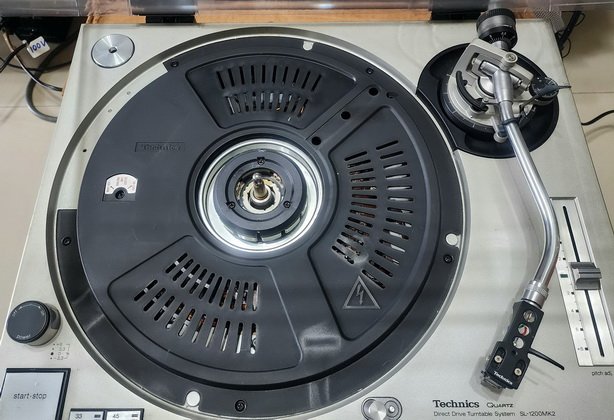

In addition, the D.D. motor, tonearm, and dust cover mounting parts are connected to
special rubber, and thorough anti-vibration measures are adopted to isolate each part
separately. In addition, the turntable has a rubber sheet and deadening rubber attached to
the back of the turntable to further improve vibration resistance.

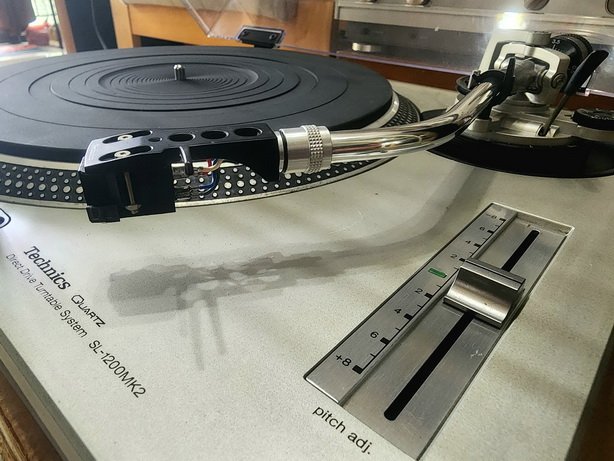

A slide lever system is used to adjust the pitch.
The display board can be read directly in 1% increments, and the green LED lights up at
0 points (rated speed).
It is equipped with a purely electronic braking mechanism, which brakes quickly with a single touch.
It is equipped with a pop-up stylus illuminator and can be stored in a cabinet when not needed.

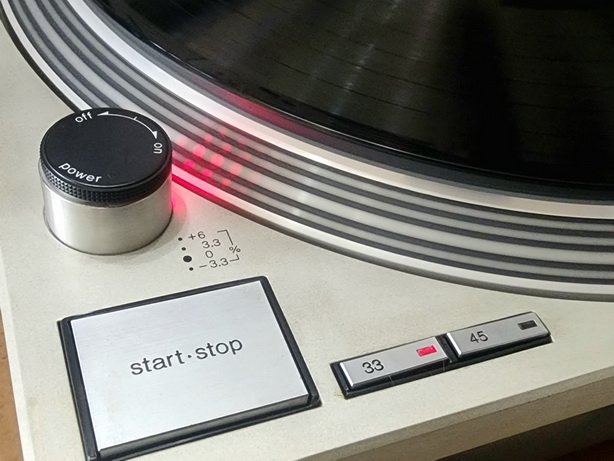

It is equipped with a strobe illuminator integrated with a power ON/OFF switch.
cross-section view Image of Sub-Weight SH-1200W
Model Ratings
Model Direct Drive Player System
< turntable part>
Drive system Direct-drive
Drive motor Brushless DC motor
Control method Quartz Phase Locked Control
turntable Made of 33.2cm die-cast aluminum, 2kg (including rubber sheet)
Rotation speed 33·1/3, 45rpm
Rotation speed fine-tuning method ±8% (continuously variable)
Starting torque 1.5kg·cm
Startup characteristics Constant speed rotation in 0.7 seconds (at 33 1/3 rpm)
Brake mechanism Electronic brakes
Wow Flutter 0.025%W.R.M.S(JIS C5521)
0.01%W.R.M.S(rotated part only)
signal-to-noise ratio 78dB(IEC98A weighted)
< tonearm section>
format Universal S-shaped static balance
gimbal suspension system
Rotation axis sensitivity 7 mg or less (horizontal and vertical initial sensitivity)
Arm Height Adjustment Range 6mm
Needle pressure adjustment range 0～2.5g
Shell weight 7.5g
Applicable Cartridge Weight 6g~10g
9.5g~13g(with auxiliary weight)
3.5g~6.5g(with shellweight)
< Comprehensive >

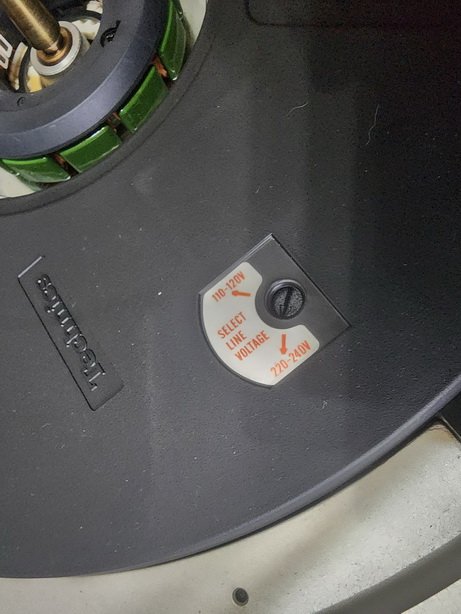

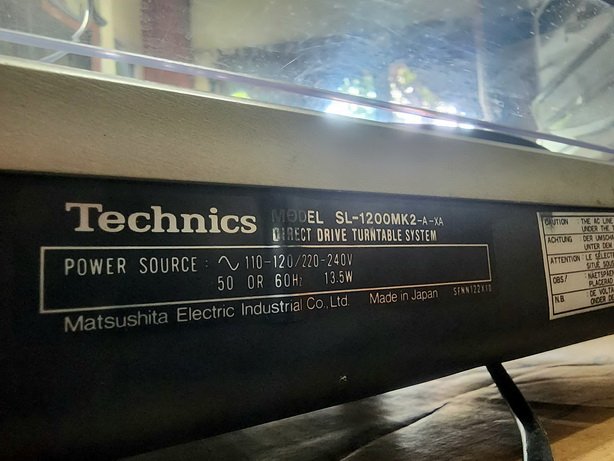

power AC100V、50Hz/60Hz
Power Consumption 13.5W
External dimensions Width 453 x Height 162 x Depth 360mm
weight 12.5kg
sold separately Sub weight set SH-1200W (¥10,000)
