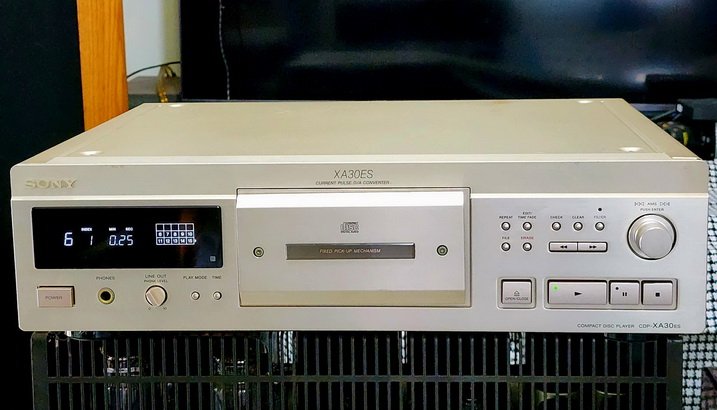

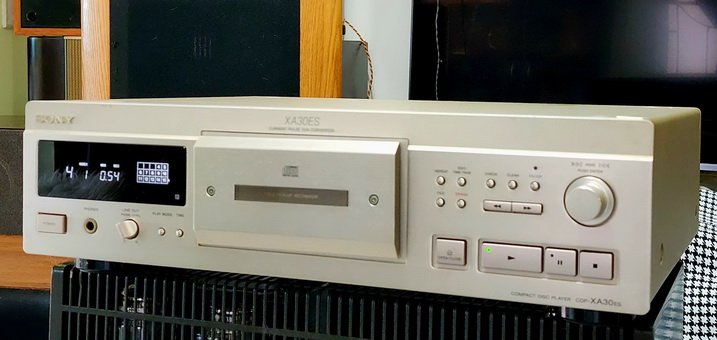

ขายเครื่องเล่น CD SONY CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan

อ่านรีวิวร์-เสปคเครื่องจากต่างประเทศก่อนครับ ...

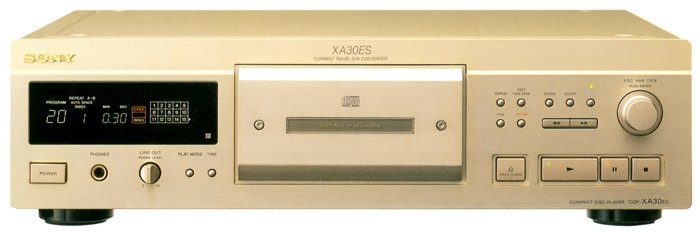

SONY CDP-XA30ES
¥66,000
(released in November 1996)

explanation

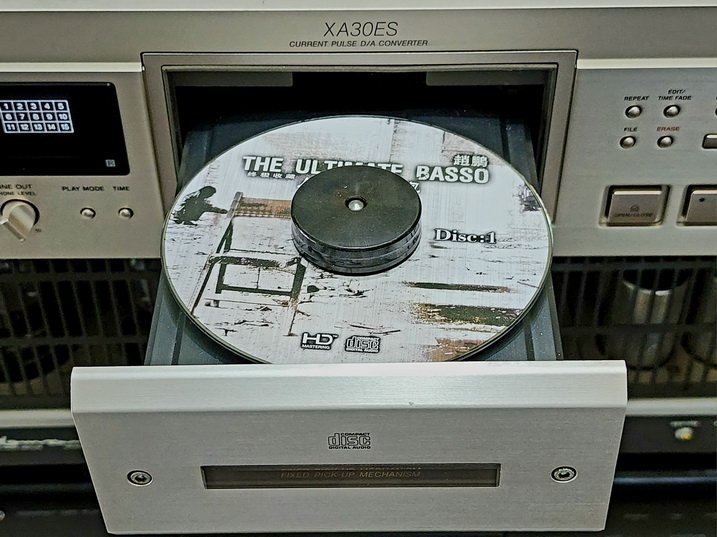

An ES series CD player equipped with an optical fixing mechanism and a variable digital filter.

The mechanism uses an optical system fixing mechanism, in which the optical pickup is fixed
to a strong base and the disc side is moved. This greatly reduces the vibration subjected to
the pickup, and the current required for the servo is limited to relatively slow movement that
compensates for the distortion and eccentricity of the disc, thereby reducing the fluctuation of
the servo current.
In this method, the disc is fixed from above using a stabilizer, which eliminates the vibration of
the disc. In addition, the disc drive motor uses a BSL motor with low rotational unevenness.

The digital filter is equipped with a newly developed variable (V.C.) digital filter.
The blocking characteristics and phase characteristics of a digital filter can be set by
a calculation formula, and if these characteristics are changed, the sound quality will change.
Therefore, multiple calculation formulas are registered in the newly developed digital filter IC,
and you can select the desired position according to your audio equipment, room environment,
 and song.
In the ES series, in addition to the standard position of the sharp roll-off characteristic, No. 1, 2, 3,
and 4 are equipped with the slow roll-off characteristic. In addition, Nos 3 and 4 can be selected
from three levels each, for a total of 9 positions.

The standard and spline positions of the variable digital filter use a full feed-forward digital filter.

This digital filter uses a three-step method of connecting a double-type digital filter, in which
the complementary data is first generated at the intermediate point between the data obtained
 from the disk and the data, and the resulting data is used to create the next complementary
data. In conventional digital filters, the lower bits of the calculation result obtained here are rounded and only the upper bits are used, but the error due to this rounding causes
requantization noise.
In a full-feedforward digital filter, the rounded low-order bits are transmitted and stored by
a separate route, and an FF (full feedforward) operation is performed to synthesize the results
of the next stage, thereby realizing Mr./Ms.an overpulling operation that also reflects the data
of the low-order bits. As a result, requantization noise in the audible band can be almost
completely eliminated, greatly improving the quality of small signals.

The D/A converter uses a current pulse D/A converter.
In this method, a stable and clean current source is prepared, and a current pulse is generated
by switching using the output of a pulse generator. As a result, the effects of voltage fluctuations,
which have become a problem with conventional pulsed D/A converters that use voltage, and
the effects of voltage noise in arithmetic circuits have been eliminated.

In addition, a complementary PLM is used to differentially synthesize the output of the pulsed
D/A converter to reduce harmonic distortion.

The line amplifier uses a DC servo amplifier configuration that eliminates the coupling
capacitor from the signal path. As a result, the coloration peculiar to capacitors is eliminated
and stable amplification is achieved down to the ultra-low frequency.

The servo circuit uses a high-precision digital servo, and by adjusting the amount of servo in
the optical pickup for each disc to be played, servo control that more accurately reflects the
 condition of the disc is possible.

A fine drive circuit is used in the drive circuit of the disc rotation system and optical pickup, and it
 is composed of a balanced push-pull that can cancel out common-mode noise. This prevents
noise from entering the ground line.
In addition, the impact on the audio section is reduced by separating the digital circuit board
from the audio circuit board after reducing the volume to a minimum, and placing it on the mechanical deck.

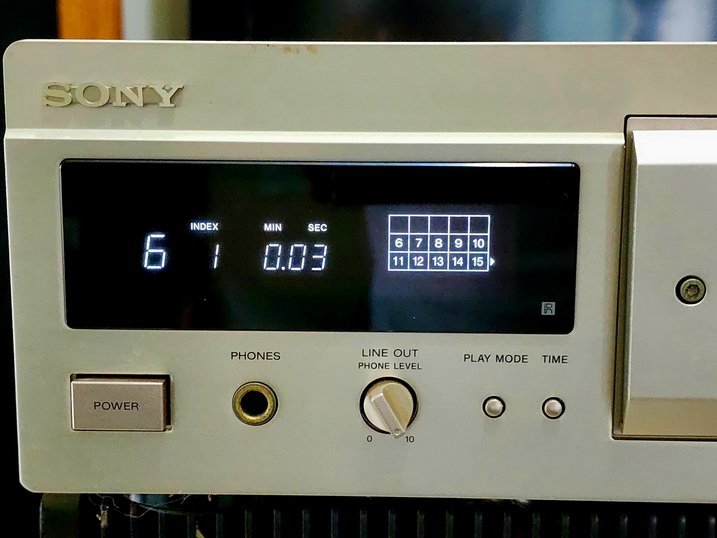

The display unit uses a static FL tube that does not blink in the part where the display does
not change.
This reduces the noise generated in the display and reduces the impact on the audio circuitry.

The power supply section uses an R-core transformer.
The R-core transformer has a donut-shaped shape with a circular cross-section without
a broken iron core, which greatly reduces magnetic flux leakage and vibration.

The internal layout uses a center mechanical mounting system, and the mechanical deck, which
is also the only mechanical movement section of the CD player, is placed in the center of the
chassis to minimize the rotational moment applied to the chassis and increase stability
against vibration.

The FB chassis is used for the chassis, and the entire chassis is strongly solidified as a single
box with a frame (Frame = frame) that surrounds the outer perimeter and beams (Beam = beam)
passed back and forth. By combining members of different shapes and sizes, natural vibrations
are mutually canceled out, and vibration of the chassis as a whole is greatly reduced.

In addition, the top plate is equipped with a double-layered top plate.

The legs are equipped with eccentric insulators.
The insulator is designed with the mounting holes offset from the center, canceling out
external vibrations to each other and reducing vibration propagation to the chassis.
The position and diameter of the holes are determined by repeated prototyping and audition,
and they are particularly effective in attenuating vibration components in the mid and high frequencies that affect hearing.

AMS, which starts a few songs before or after, is a rotary song selection method using a jog
dial.
As a result, it is possible to select songs that make use of the sensation of fingertips, such
as rapidly until near the target song, and slowly after that.

It is equipped with a custom edit function that allows you to operate functions such as peak
search, time edit, just edit, program edit, time fade, manual fader, and variable fade.

It is equipped with a custom file function, which allows for custom indexes and delete bank
 memory.
The maximum number of sheets that can be supported is 224.

It is equipped with functions such as delete play, shuffle play, delete shuffle, autospace, timer
play (auto start), 8 mode repeat, index search, etc.

It is equipped with two digital outputs, optical and coaxial.

It is equipped with two analog outputs, fixed and variable.
In addition, it has a headphone jack with volume that doubles as a line-out.

It comes with a wireless remote control.

Model Ratings
Model CD player
D/A converter Current Pulse D/A Converter
Digital Filters Variable digital filter
Frequency response 2Hz~20kHz ±0.3dB
Dynamic Range 100 dB or more (EIAJ)
Total Harmonic Distortion 0.0018% or less (EIAJ)
Wow Flutter Measurement limit (±0.001% W.peak) or less (EIAJ)
Digital Output Light: -18dBm (emission wavelength 660nm) Coaxial
: 0.5Vp-p/75Ω
Analog Output Fixed: 2 Vrms
Adjustable: 2 Vrms ~ 0 V
Headphone output 28mW (32Ω load)
power AC100V、50Hz/60Hz
Power Consumption 18W
External dimensions Width 430 x Height 125 x Depth 350 mm
weight Approx. 9.2kg
belonging wireless remote control RM-DM950
chayatorn (เข้าชม 430 | โพสต์ 20 | ตอบ 0 ) (29/07/2567 13:57:50)
โพสต์ที่ 2

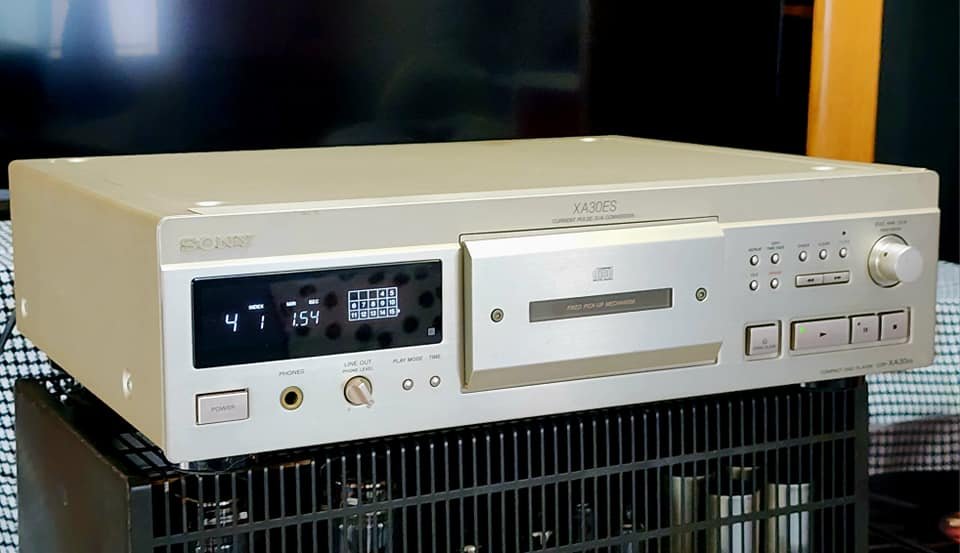

ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan

เครื่องเล่นซีดี ตระกูล ES รุ่นใหญ่ ของยี่ห้อดังที่นักเล่นเครื่องเสียงทั่วโลกต่างให้การยอมรับในคุณภาพ
การออกแบบตัวเครื่องสวยงาม ตัวเครื่องสีทองแชมเปญ อุปกรณ์ระดับ Audio Grade เป็นรุ่นล่าสุดของ ES
DAC-chip เกรดสูงเอกสิทธิ์เฉพาะของของ SONY ตระกูล ES รุ่น CXD8505BQ และ ชิป CXA8042AS 2 ตัว
คุณภาพเสียงการถอดรหัสสัญาณจากภาคอนาลอคมาเป็นดิจิทัลดีมากๆ น้ำเสียงที่ได้จึงมีรายละเอียดสูง ทุกย่านเสียง
แต่ยังคงความเป็นอนาลอค เนื้อเสียงหนานุ่มนวล (ชิปเซ็ทรุ่นนี้ เป็นตัวเดียวกันกับรุ่น 50ES)
รุ่นนี้ใส่เทคโนโลยีการประมวลผลแบบ Variable Digital Filter ทำให้การอ่านแผ่นซีดีถ่ายทอดเรนจ์เสียงที่ละเอียด
ในทุกสภาวพก่ีบันทึกเสียงมาจากต้นฉบับบแผ่นซีดีที่แตกต่างกัน ค่า Gain เครื่องสูงถึง 100dB. หรือมากกว่า
มี Out PutอนาลอคRCA.2ชุด คือ Fixed และVariable ในภาคนี้ท่านสามารถเพิ่มลดเสียงได้จากวอลลุ่มหน้าเครื่อง
โดยท่านสามารถใช้ซีดีเครื่องนี้ต่อ Power Ampได้โดยไม่ต้องใช้ Pre และมีภาค Digital Optical และ Coaxial
ตัวเครื่องสภาพสวย มีิ้วรอยใช้งานทั่วไป น้ำหนักมากถึง 9.2 กิโลกรัม หน้าปัดสวย ปุ่มกดต่างๆ ทำงานดี
อ่านแผ่นซีดีต่าง ๆ ได้ดี หัวอ่านยังสวยใสวิ้ง ใช้ไฟ 220V. (เลือกปรับไฟได้ทั่วโลก จากโรงงาน)
ราคา 17,500 บาท  (ค่าส่งทั่วไทย +300 บ.)

สะดวกให้มาฟัง เฉพาะ ส-อา. (จ.นนทบุรี)
สะดวกส่งของแค่วัน ส.,อา.,จันทร์ เท่านั้น

สนใจ สอบถามรายละเอียดเพิ่มเติมที่ คุณชยธร
โทร.&Line :: 0911945555
(add Line id : 0899231177)

การส่ง
โทรคุยตกลงกัน รับกับมือจะดีที่สุด ทดลองฟังเสียงที่บ้านได้ (ต้องนัดล่วงหน้า)
ตจว.ส่งให้ได้ ระบบขนส่งเอกชน (นิ่มฯ/เคอรี่  ส่งถึงบ้าน ค่าแพค+ส่ง 300 บาท)
แต่ผมไม่รับรองความเสียหายทุกกรณี เพราะอุบัติเหตุเกิดขึ้นได้เสมอ
ค่าส่งผู้ซื้อจ่ายเอง หากไม่แน่ใจให้หาทางมารับกับมือ
** ของที่ขายเป็นของ VINTAGE ไม่ใช่ของใหม่ "ไม่มีประกัน"**
***ไม่รับเปลี่ยน - คืนของ ***

การจอง โอนเงินซื้อ/จอง
- ธ.ไทยพาณิชย์ บัญชีออมทรัพย์ เลขที่ 2022174366
- ธ.กสิกรไทย บัญชีออมทรัพย์ เลขที่ 6972123666

ขอสงวนสิทธิ์ให้ท่านที่ซื้อสด / จองด้วยการโอนมัดจำ ก่อนจองด้วยวาจาทุกกรณีครับ
ไม่รับจองโดยวาจา ขายให้ผู้พร้อมซื้อ,โอนซื้อ - ไม่ยกไปให้ลอง อยากลองมาลองที่บ้านเท่านั้น

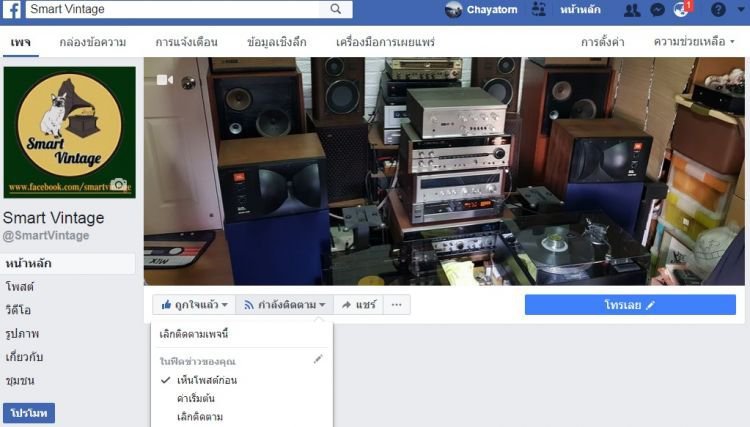

Fan page >>> www.facebook.com/SmartVintage

#เครื่องเล่นซีดี #ซีดี #CD #SONY #โซนี่ #XA30ES #HiFi #SmartVintage
chayatorn (29/07/2567 14:28:54)
โพสต์ที่ 3

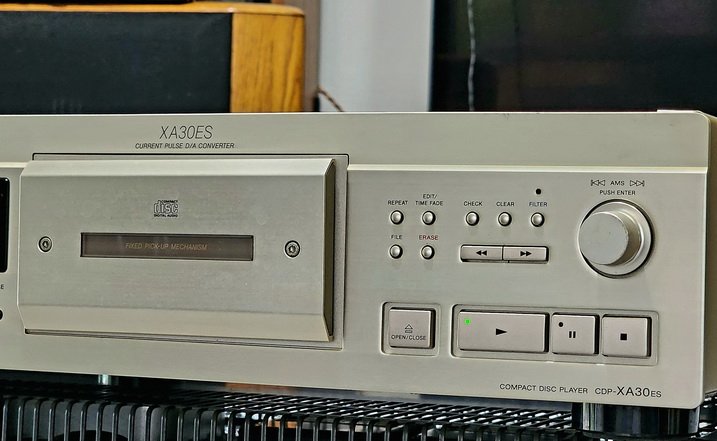

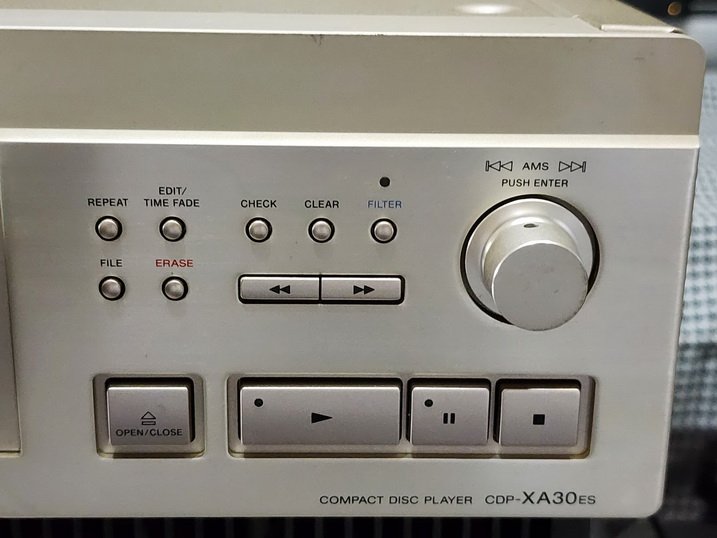

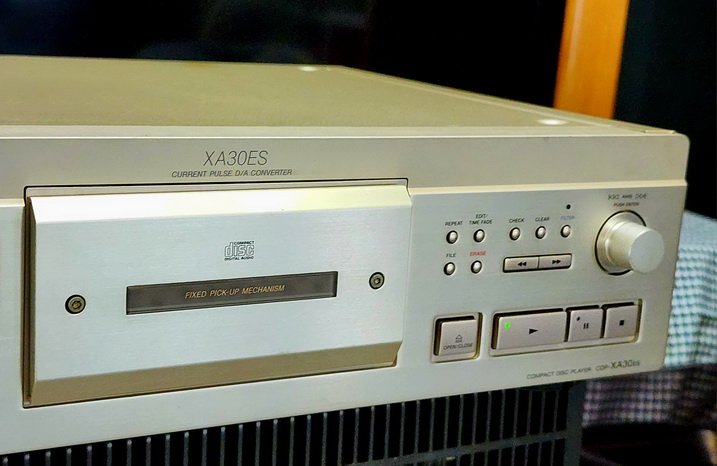

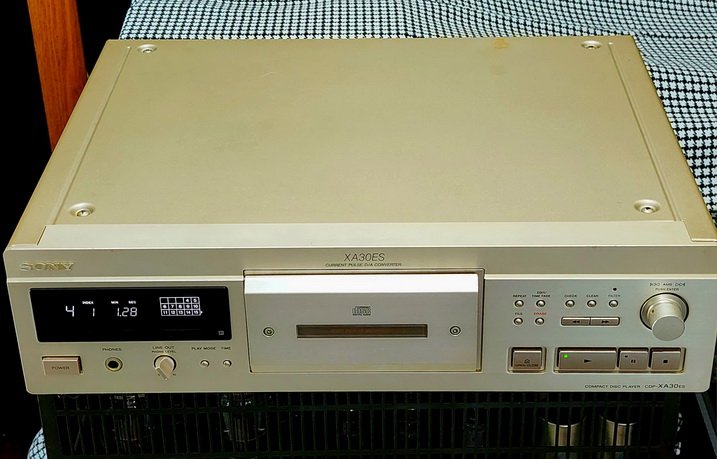

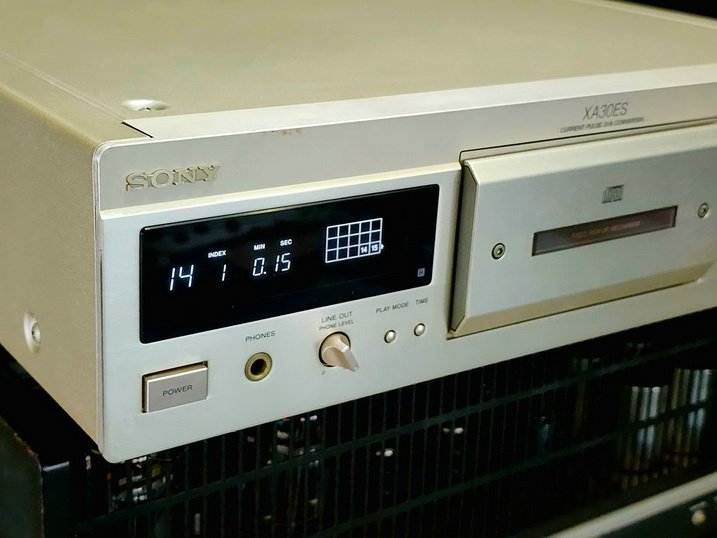

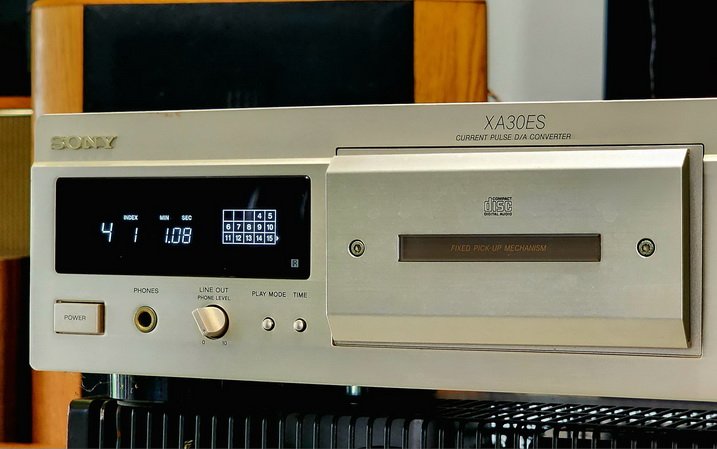

ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:30:07)
โพสต์ที่ 4
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:30:16)
โพสต์ที่ 5
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:30:23)
โพสต์ที่ 6
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:30:34)
โพสต์ที่ 7
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:30:42)
โพสต์ที่ 8
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:30:51)
โพสต์ที่ 9
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:31:00)
โพสต์ที่ 10
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:31:08)
โพสต์ที่ 11
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan

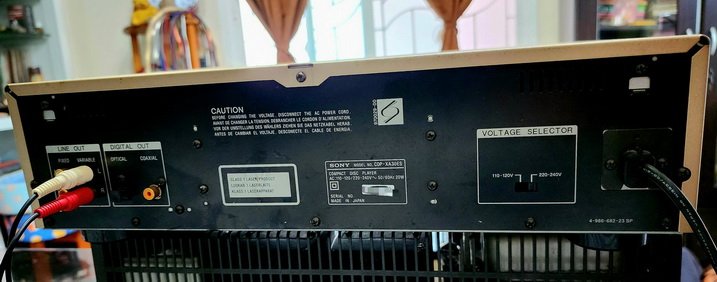

ด้านหลังเครื่องก็สวย
chayatorn (29/07/2567 14:31:28)
โพสต์ที่ 12
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan

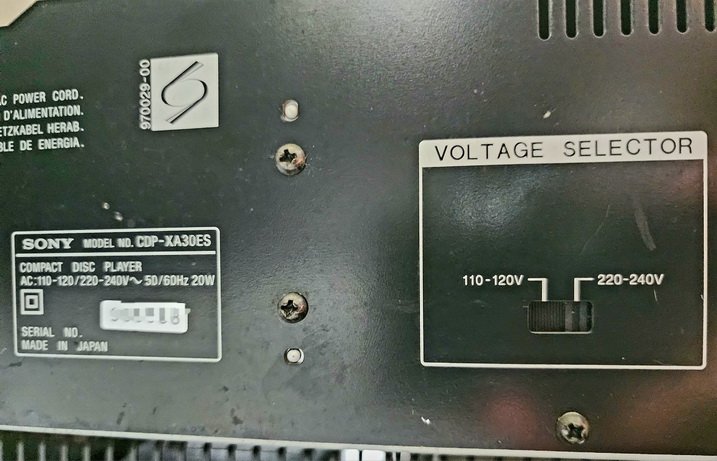

ปรับไฟได้ทั่วโลก ใช้ไฟ 220V. ไม่ต้องพึ่งหม้อแปลง
chayatorn (29/07/2567 14:31:57)
โพสต์ที่ 13
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan

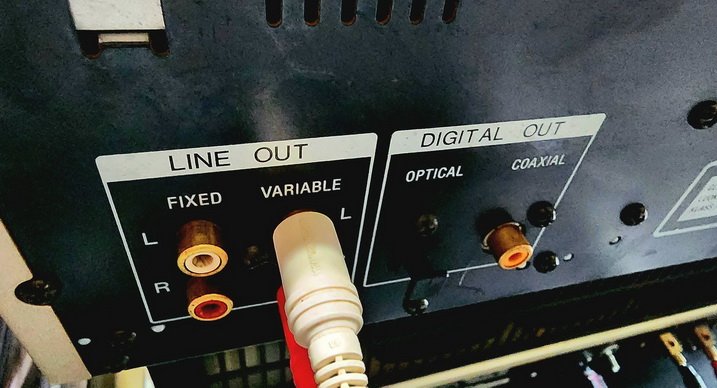

มี Out PutอนาลอคRCA.2ชุด คือ Fixed และVariable ขั้วชุบทองงานเกรดออดิโอ
ในภาค Variable ท่านสามารถเพิ่มลดเสียงได้จากวอลลุ่มหน้าเครื่อง
โดยท่านสามารถใช้ซีดีเครื่องนี้ต่อ Power Ampได้โดยไม่ต้องใช้ Pre

และมีภาค Digital Optical และ Coaxial ครบครัน
chayatorn (29/07/2567 14:32:58)
โพสต์ที่ 14
ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan
chayatorn (29/07/2567 14:33:17)
โพสต์ที่ 15

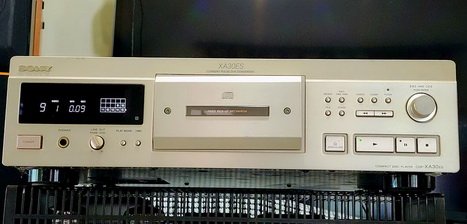

ขาย เครื่องเล่น CD SONY รุ่น CDP-XA30ES รุ่นใหญ่ตระกูล ES อ่านดี เสียงดีมาก หายาก สภาพสวย Made in Japan

สวย เสียงดี ทำงานสมบูรณ์ หายากครับ
chayatorn (29/07/2567 14:33:45)
โพสต์ที่ 16
ขอขอบคุณทุกท่านที่ไว้วางใจ และสนับสนุนเสมอมา หากโหวตให้ด้วยก็ขอขอบคุณมากครับ

ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
https://www.facebook.com/SmartVintage

ของที่ขายทุกชิ้นชอบเป็นการส่วนตัว พยายามคัดเลือกรุ่น-สภาพที่ดีมาสะสม
ของบางรุ่นเป็นรุ่นที่คุ้มค่าเมื่อเทียบกับรุ่นอื่นในราคาเดียวกัน
บางรุ่นเป็นรุ่น Top ที่ท่านไม่ต้องลองผิดลองถูก ไม่ต้องซื้อๆ-ขายๆ Short Cut ในการเล่นได้เลย
ของที่ฝากขาย ส่วนมากผู้ฝากจะขายราคาต่ำกว่าที่ซื้อมา ผมได้เทสว่าสมบูรณ์แล้วจึงลงขายให้ครับ
สนใจติดต่อ ชยธร 091-194-5555 เฉพาะเวลา 10.00-23.00 น. เท่านั้น (นอกเวลารบกวน sms)
**ของทุกชิ้นไม่ได้บอกราคามากๆเพื่อมาลดเยอะๆ ดังนั้นหากท่านจะมารับของเองแล้วต่อราคาเยอะๆ กรุณาอย่ามา เพราะจะเสียเวลา - ของชิ้นไหนระบุว่าไม่ลด-งดต่อ ก็กรุณาอย่าต่อ **
***ภาพจริงทุกภาพ ไม่มีการตกแต่งภาพให้สวยเกินจริง ภาพไหนเป็นภาพแทนจะระบุไว้ให้ทราบ***
****สำหรับนักเล่นที่ซื้อของผมไปหากต้องการช่างผู้ชำนาญการในการบำรุงรักษายินดีแนะนำให้ครับ****
ของ Vintage อาจจุกจิกเรื่องการดูแลบ้าง แต่ทุกเครื่องหากรักษาและใช้แบบถนอมก็อยู่ได้ยาวนาน อาจมีต้องซ่อมบำรุงบ้างเป็นธรรมดาของใหม่ก็มีโอกาสเสีย
แต่สิ่งที่ท่านจะหาไม่ได้จากของใหม่ๆก็คือ "คุณค่า" ที่แม้ท่านมีเงินมากแค่ไหน ก็กำเงินเข้าร้านทั่วๆไปหาซื้อไม่ได้ "ถ้าไม่มีคนขาย"

*****ยินดีรับแลกเปลี่ยนเครื่องเสียง เพื่อแบ่งปันประสบการณ์ในการฟัง ตามตกลงครับ*****

เงื่อนไขการเทิร์น
- ของที่มาเทิร์นต้องสภาพสมบูรณ์ ไม่เสีย สภาพสวยจะดีมาก และมาส่งให้ที่บ้านผมเท่านั้น
- ของที่ซื้อไปเอามาเทิร์นได้โดยหักค่าเสื่อม 30% ของราคาที่ซื้อไป และคิดราคาของที่ท่านอยากมาเทิร์นในราคาเต็ม
- ทั้งหมดอยู่ที่ความพอใจ ขอสงวนสิทธิ์ไม่รับเทิร์นได้ทุกรณี
- ท่านที่เทิร์นของเปลี่ยนไปมา ขอความกรุณาอย่าทำ
chayatorn (29/07/2567 14:34:25)
โพสต์ที่ 17
ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
https://www.facebook.com/SmartVintage
chayatorn (29/07/2567 14:34:51)
โพสต์ที่ 18
พบเครื่องเสียงอีกหลายรายการครับ
http://www.hifi55.com/index.php?cat=2&id=20740
chayatorn (29/07/2567 14:35:07)
โพสต์ที่ 19
ตัวอย่างคลิป เทสระบบ ลองชมและฟังประกอบการตัดสินใจครับ
*คลิปจากมือถือ ไม่สามารถเก็บรายละเอียด-ความถี่เสียงได้ครบ สู้การฟังจากหูไม่ได้ครับ*

https://www.facebook.com/SmartVintage/videos/1859723401182765

https://www.facebook.com/SmartVintage/videos/1162257078197838
chayatorn (29/07/2567 14:35:42)
โพสต์ที่ 20
ขายแล้วครับ
chayatorn (29/07/2567 17:31:34)
www.hifi55.com Copyright
