D-99: ¥99,800 (released in 1982)
D-99MB: 105,000 (released in 1982)
explanation

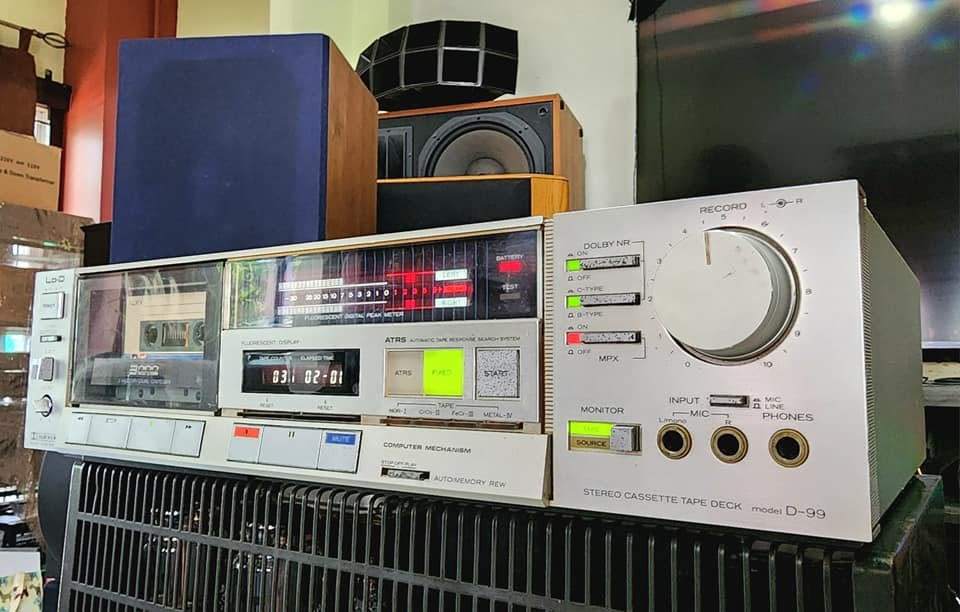

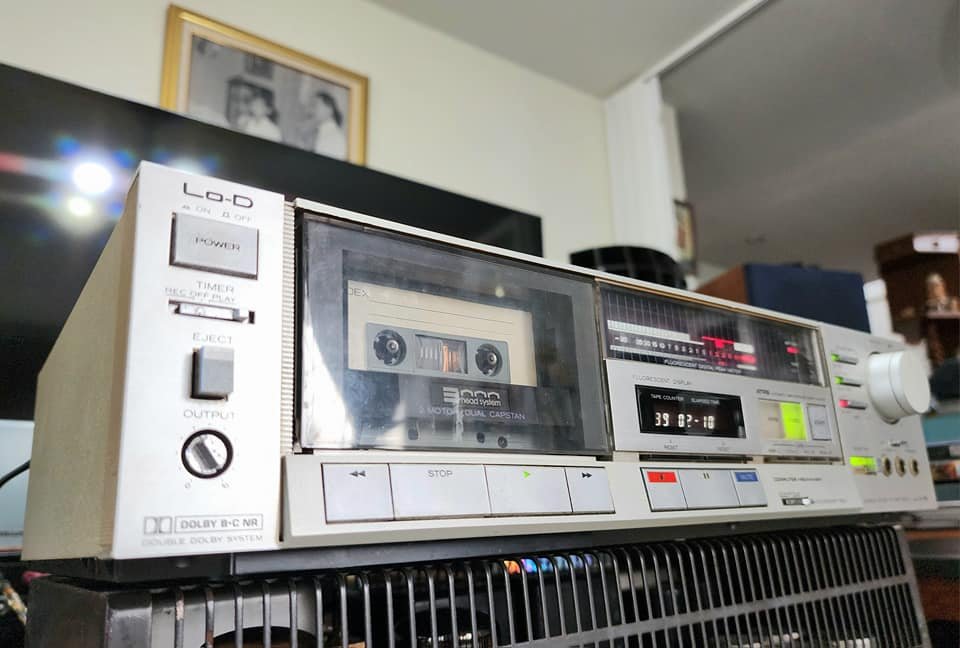

Three-head cassette deck with Dolby C and ATRS.
It is equipped with an ATRS (Automatic Frequency Response Correction) system, which can
automatically detect the bias, recording sensitivity, and compensation amount suitable for
the tape to be used in about 10 seconds.
In addition, the timer recording is equipped with functions such as a mechanism that allows you
to select between ATRS and FIXED, a fast-forward re-ATRS test mechanism for the leader
tape section, a four-stage tape selector that allows you to select between test data and manual
data, and an ATRS error warning display.

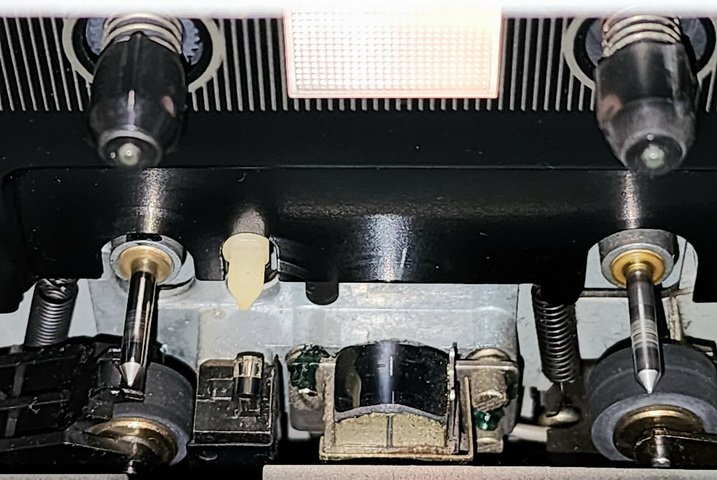

The head uses a new-shaped titanium spray R&P combination head to reduce level fluctuation
and sliding noise.
As a noise reduction system, it is equipped with Dolby C type and B type.

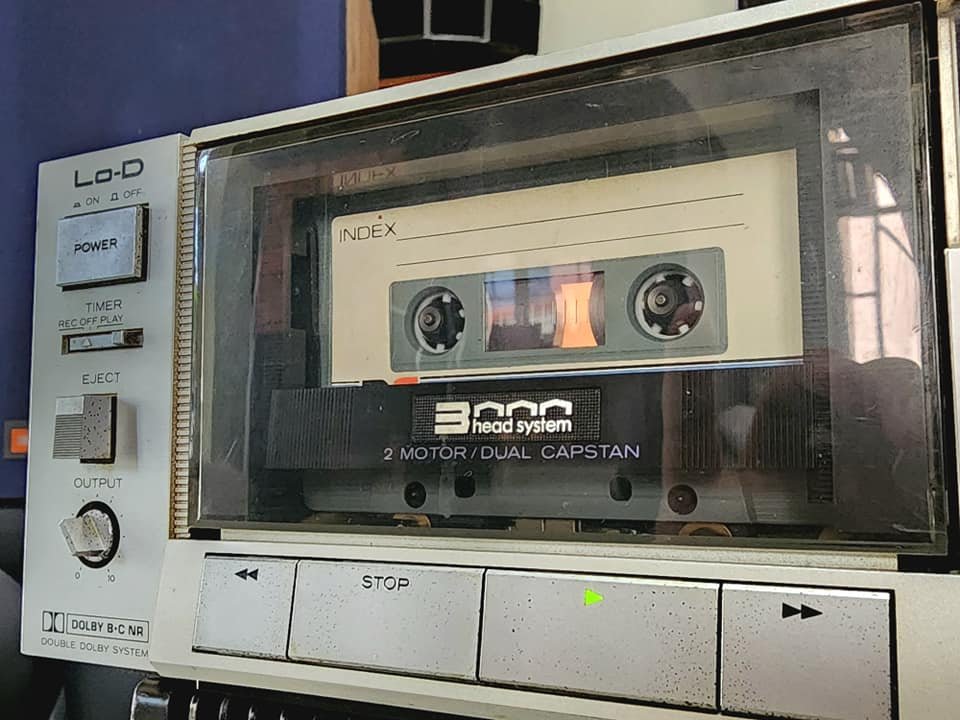

The mechanism uses a dual-capstan system and a two-motor mechanism.
Stable tape running is achieved by the dual-capstan system, which secures the tape firmly by
arranging a capstan and a pinch roller on each side of the winding and unwinding sides of the
tape, a two-motor mechanism that clearly divides the running system, and a large precision
machining flywheel.
By adopting a first-stage FET amplifier, the characteristics are improved. amplifier
It is equipped with an Elapsed-Time function that displays the elapsed time of the tape
run in minutes and seconds.

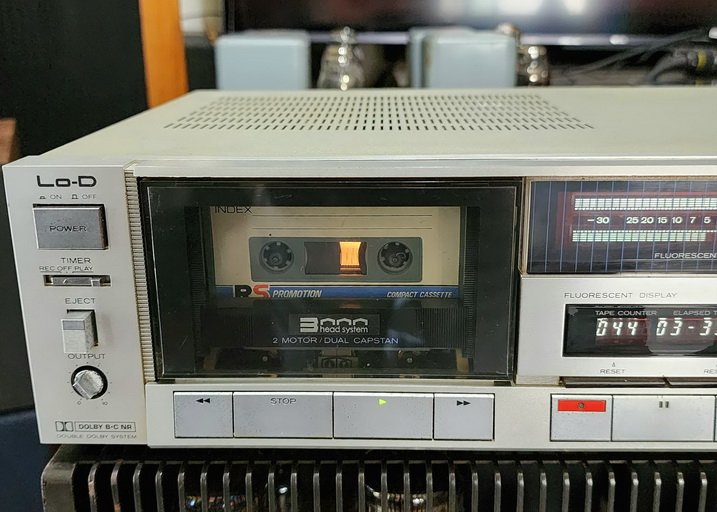

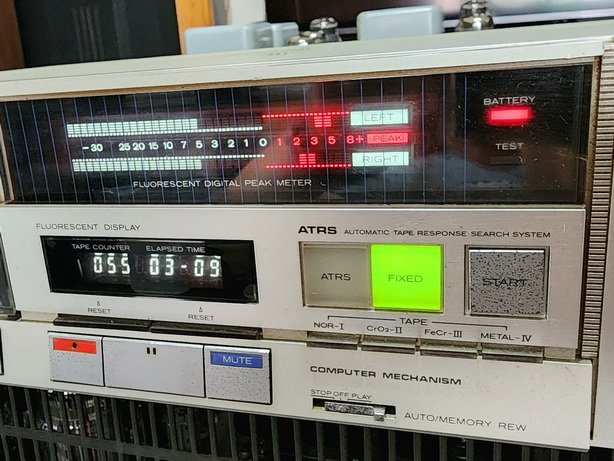

It is equipped with a 16-point two-color FL digital peak meter.

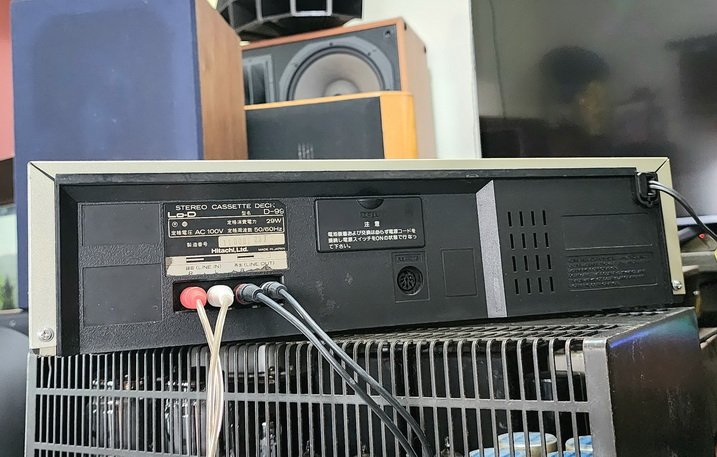

It is equipped with a remote control terminal.

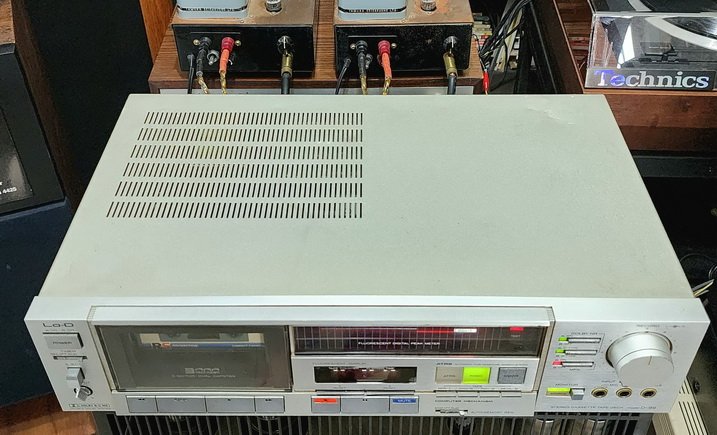

It was available in two color variants: the silver type D-99 and the black type D-99MB.
Model Ratings
Model Cassette Deck
head Re-recording: New Shape Titanium Spray R&P Combination Head
Erasure: Double Gap Erasing Head with Ferrite Guard
motor For capstan: DC servo motor For
reels: DC motor
Wow Flutter 0.032%(WRMS)
±0.065(W・peak)
Frequency response 20Hz~21kHz/25Hz~20kHz ±3dB (Metal)
20Hz~21kHz/25Hz~19kHz ±3dB (Chrome)
20Hz~19kHz/25Hz~18kHz ±3dB (Normal, Ferrichrome)
SNR (Metal Tape)
3% distortion level, hearing correction: 75dB(Dolby C NR on)
69dB(Dolby B NR on)
61dB(Dolby NR off)
EIAJ: 71dB(Dolby C NR on)
65dB(Dolby B NR on)
57dB(Dolby NR off)
Input sensitivity/impedance Line in: 100mV/50kΩ or more
Mic: 0.4mV/300Ω~5kΩ
Output impedance (load) Line out: 50kΩ or more
Headphone: 8Ω~2kΩ
<ATRS Division>
microcomputer 4-bit 1-chip microcomputer
Bias Variable Step 16
Gain Variable Step 16
Equalizer Variable Step 16
< Other>
Power supply voltage AC100V、50Hz/60Hz
Power Consumption 29W
External dimensions Width 435 x Height 110 x Depth 282 mm
weight 6.3kg
