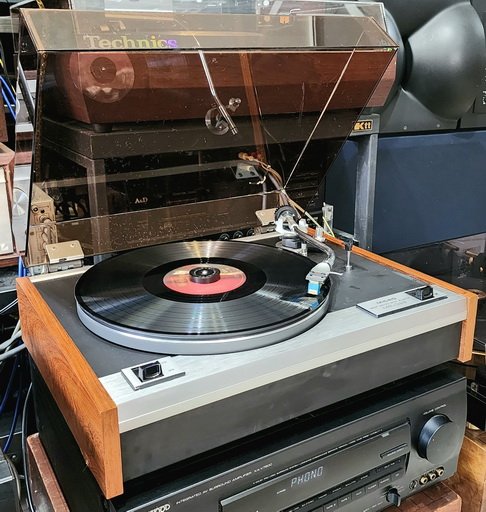

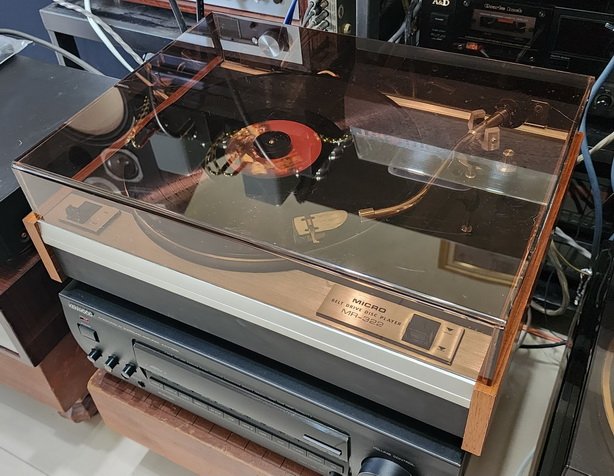

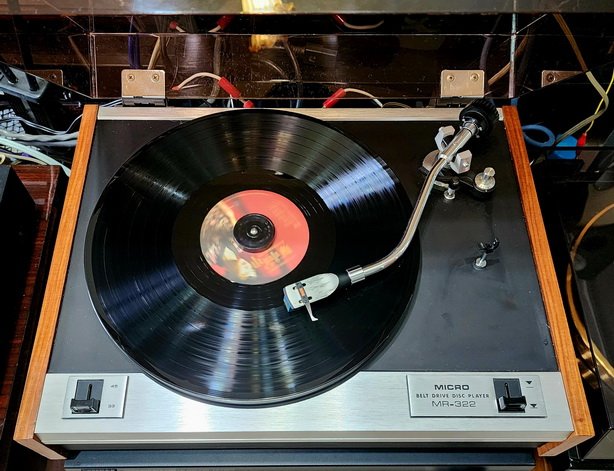

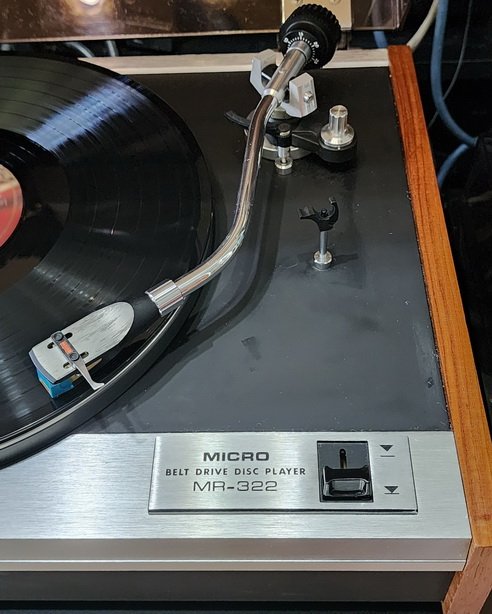

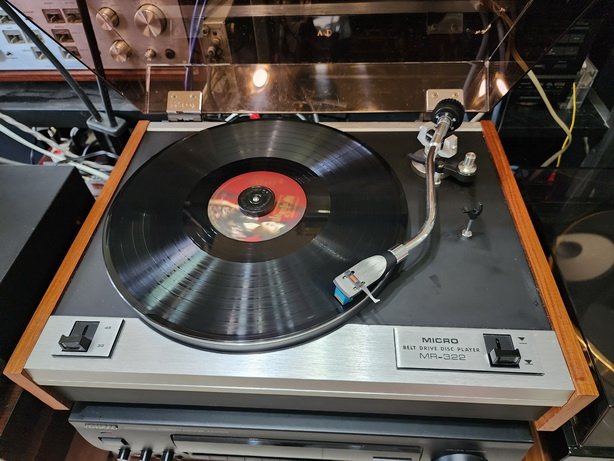

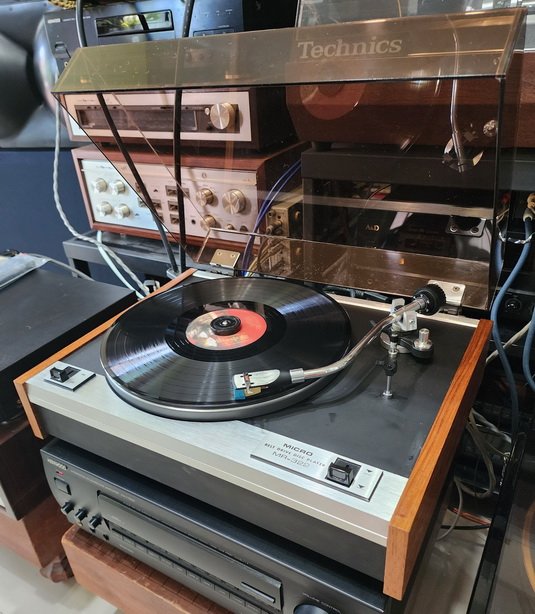

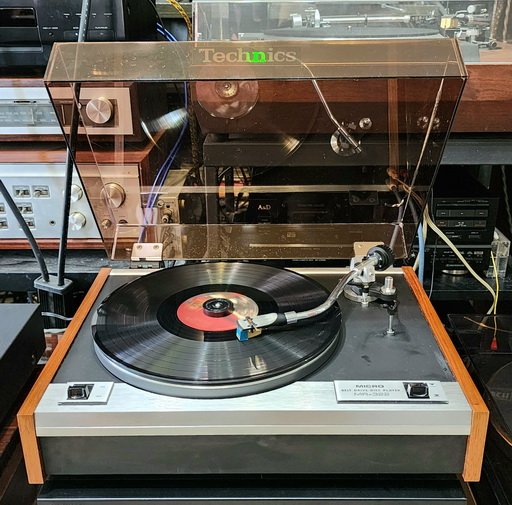

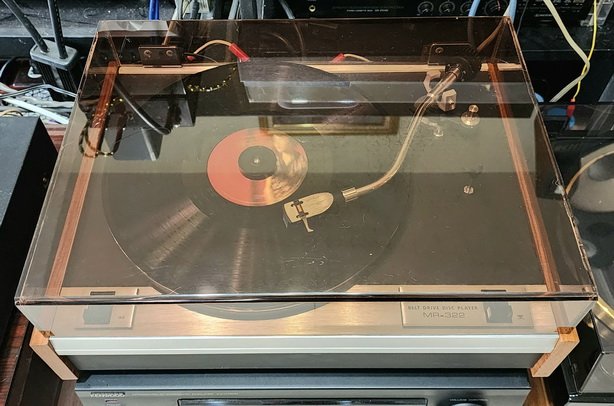

A belt drive player with the highest class tone arm.
An aluminum die cast turntable is used as the turntable, and the drive system is a belt drive
system using a four pole outer rotor type motor with a die cast radiator.
The die-cast radiator improves heat radiation and reduces motor vibration, resulting in improved
durability.

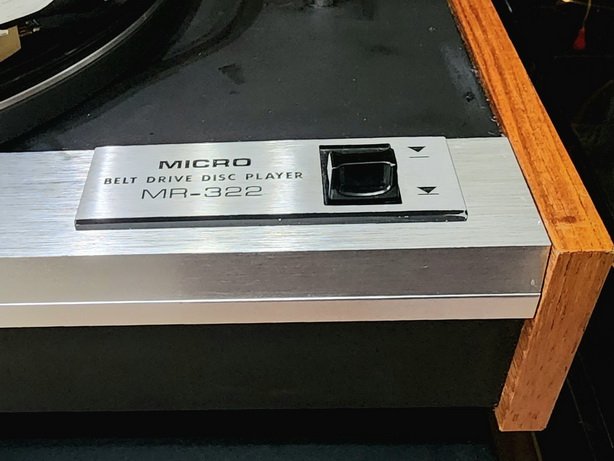

The power switch is built into the arm rest and is interlocked with the belt lock mechanism which
is highly effective for belt maintenance.

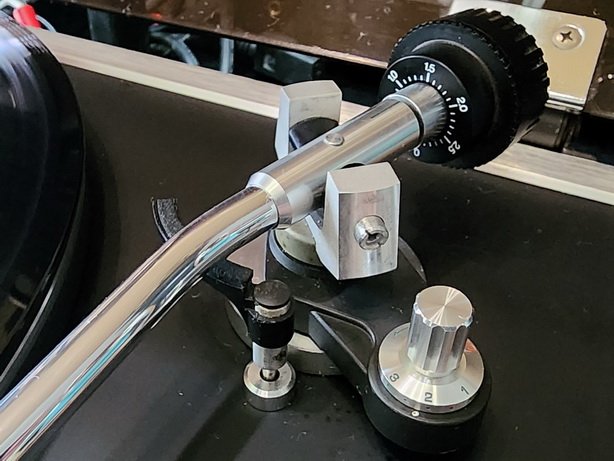

Fixed bearing is used for the rotating part of the tone arm, and special alloy pipe and high
composite die cast shell are adopted.
In addition, it is equipped with Micro's own spring tension type inside four scan cellar to enhance
tracing ability.

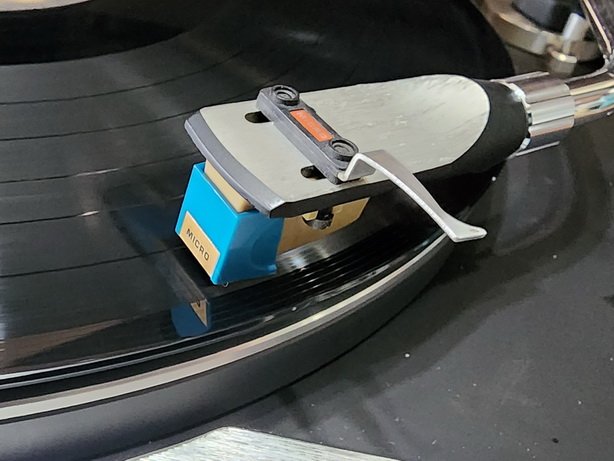

Uses MM type cartridge M-2100/6.
An oil dump type arm lifter is adopted.
It uses a newly designed insulator with adjustable height.
Model Rating
Type Record player
<Turntable portion>
Drive system Belt drive system
Motor 4-pole hysteresis synchronous outer rotor motor

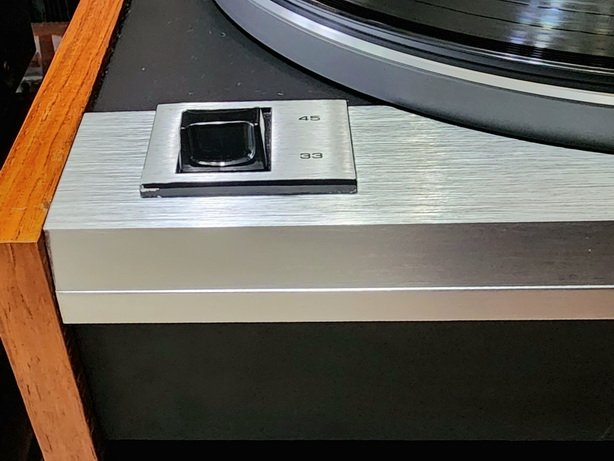

Number of revolutions 33 1/3, 45 rpm
Turntable 30 cm aluminum die-cast, 1 kg
Uneven rotation Not more than 0.08%
Signal-to-noise ratio 48 dB or more
Tone Arm Section
Type Static balance type
Total Length 300mm
Effective length 222mm
Overhang 15mm
Offset angle 21 ゜
Maximum tracking error 1.5 degrees or less
Inside for scan seller Needle pressure response type
Applicable Cartridge Dead Weight 4g ~ 11g
Needle pressure variable range 0 ~ 3g (1 Rotation)
Cartridge Section
Type MM Type (M-2100/6)
Frequency characteristic range 10 Hz to 28 kHz
Output balance ± 0.5 dB at 1 kHz
Channel separation 30dB(1kHz)
Output voltage 6 mv (1 khz, 3.54cm/s)
Load resistance 50k Ω ~ 100k Ω
Optimum needle pressure 2g
Needle tip 0.6 mil diamond needle
Compliance 25x10-6cm/dyne
Dead weight 4g
Exchange needle V-2100/6(¥3,600)
V-2100/5(¥3,600)
V-2100/e(¥5,600)
<General>
Pwer 100 VAC, 50Hz/60Hz
Power consumption 12W
External dimensions Width 459x Height 171x Depth 365 mm
Weight 8.5kg.
