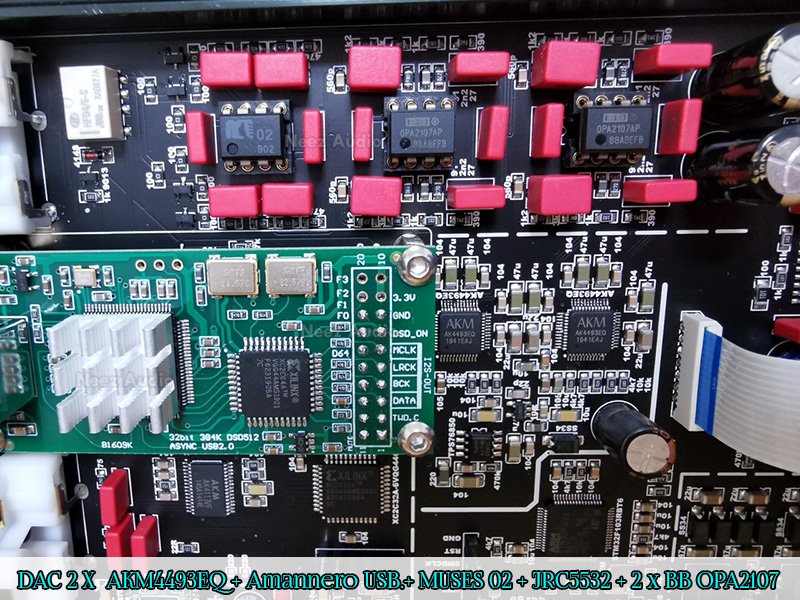

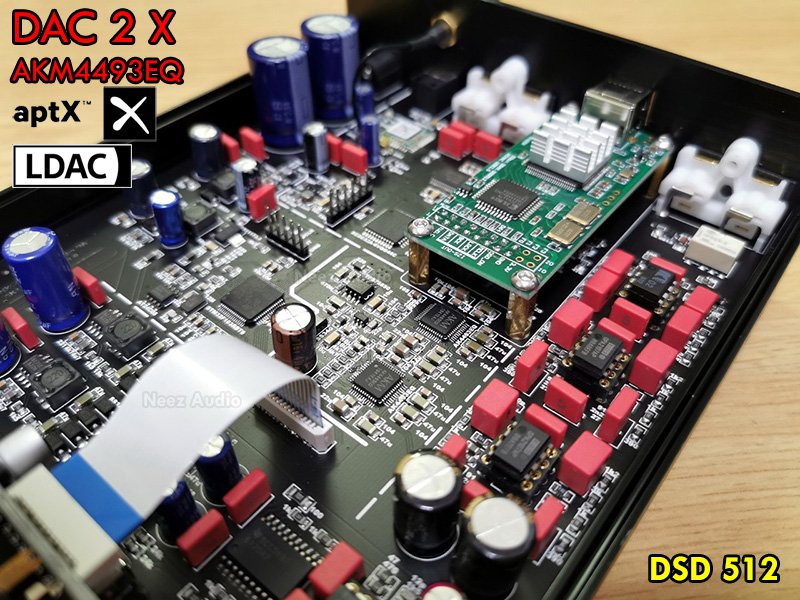

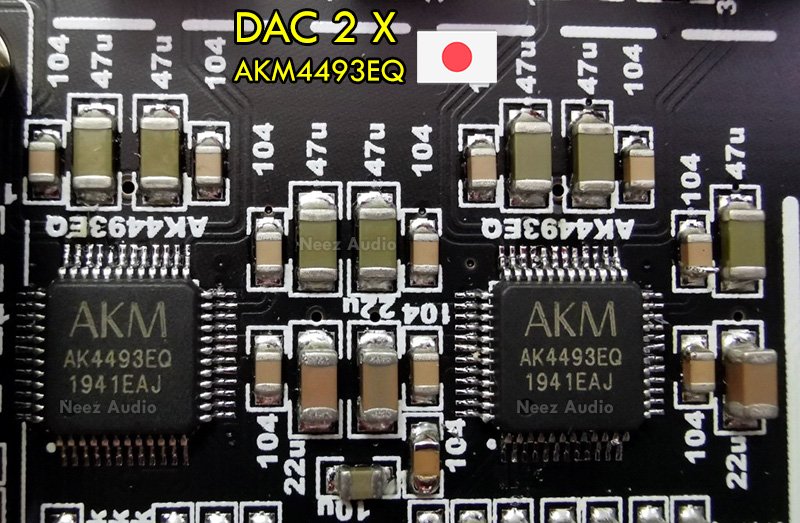

DAC Chipset : 2 X AKM 4493EQ (32bit/384kHz)
USB Chip : Amannero (32bit/384kHz , DSD512/Native)

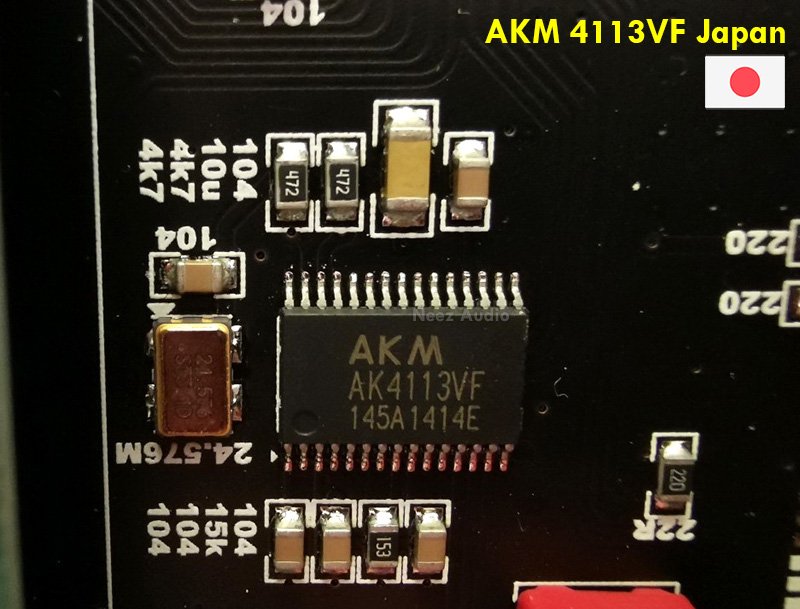

Digital audio transceiver : AK4113VF
Control Chip : ARM STM32F103
Op-Amp :
-1 X Muses 02
-2 X BB OPA 2107AP
- 1 X 5532 JRC
Support File : DSD512 - DSD64 /DOP/ Native, FLAC, APE, WAV,WMA,MP3....
Digital filter MENU
Capacitor for Audio : Panasonic FC , WIMA , ELNA , ….

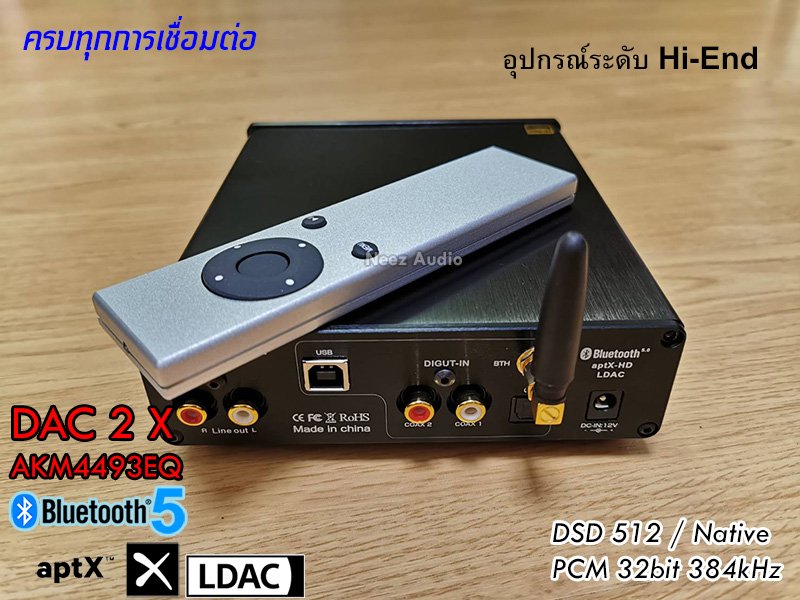

Output :
RCA. (L, R)
Head Phone 3.5 mm. : 700mW@32Ohm. // 156mW@300Ohm
Head phone chip : TI 6120A2 USA.
Volume can be adjusted.

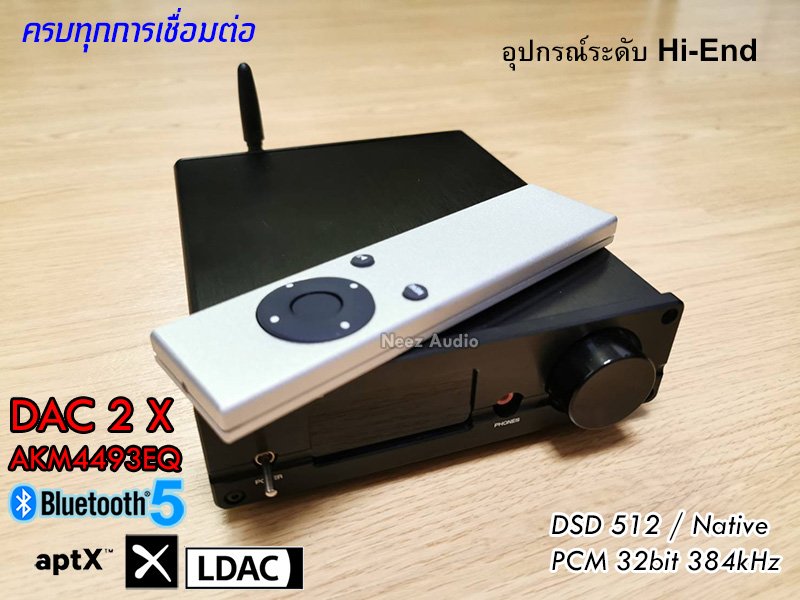

Remote can control
Case : Back Aluminium CNC.
Size : 169 x 148 x 50 mm.
Weight : Approx. 1 kg
Package
1 x DAC Dual AKM 4493EQ
1 x Power Adapter
1 x Remote Control
