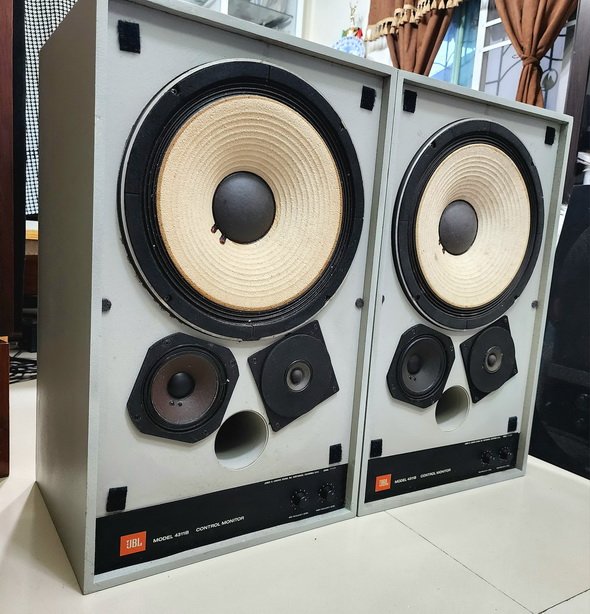

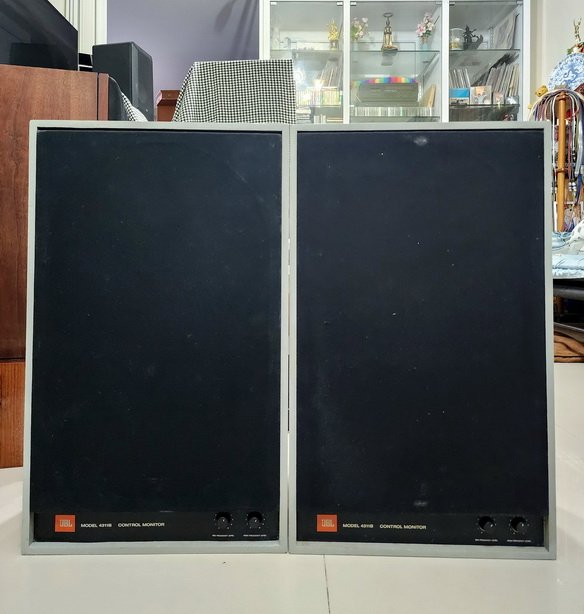

ขายลำโพง JBL 4311B สวย เสียงดี หายากมาก Made in USA.
ขายลำโพง JBL 4311B สวย เสียงดี หายากมาก Made in USA.
เสปคลำโพง และ รีวิวร์จากต่างประเทศครับ ....

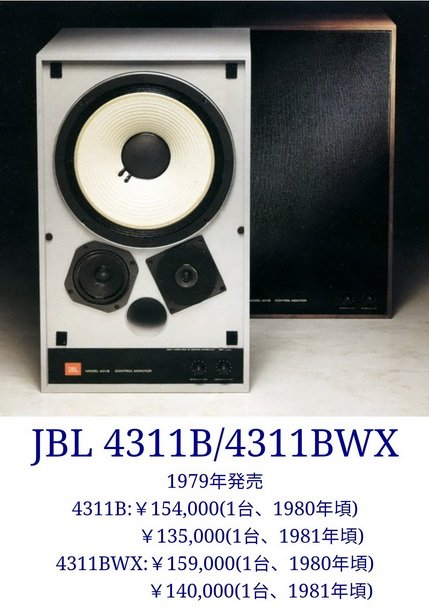

JBL 4311B/4311BWX Released in 1979
4311B: ¥154,000 (1 unit, circa 1980)
¥135,000 (1 unit, circa 1981)
4311BWX: ¥159,000 (1 unit, circa 1980)
¥140,000 (1 unit, circa 1981)
explanation

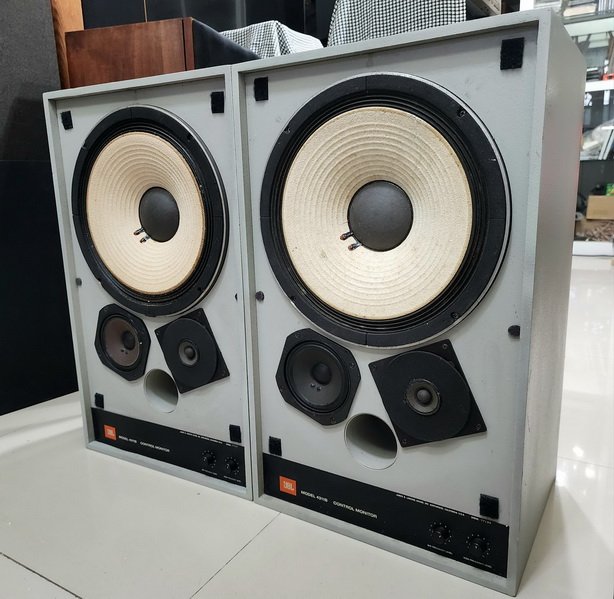

This is the third generation of the 4311 speaker system used in studios and broadcasters
around the world.

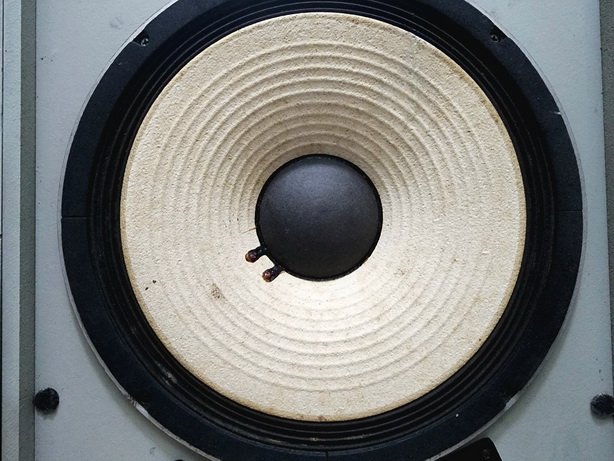

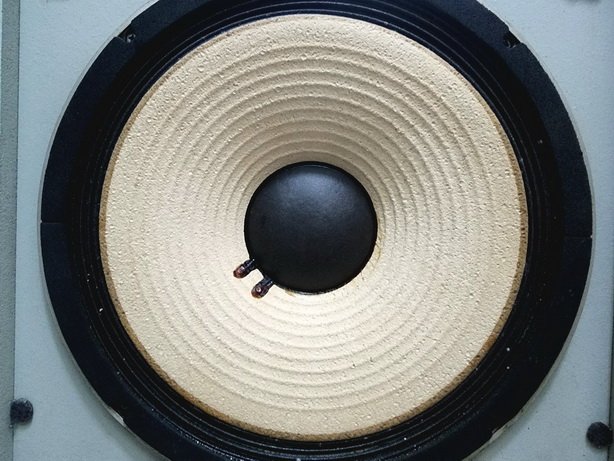

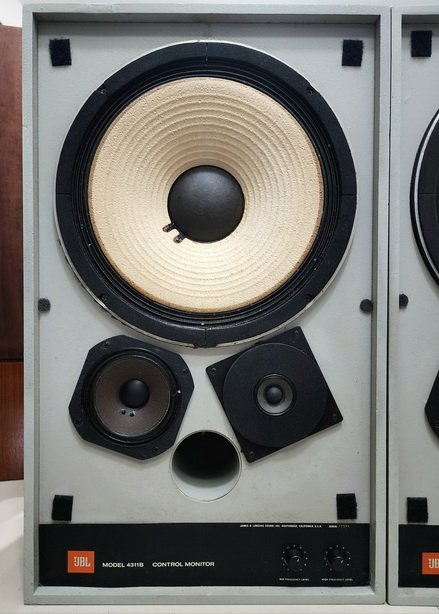

The low frequency range is equipped with a 30cm cone-type woofer 2213H.
The unit uses white cone paper coated with JBL's proprietary white dumping agent,
a 7.5cm diameter copper ribbon wire edgewise voice coil, and a 4.7kg low-distortion magnetic
circuit to achieve a minimum resonant frequency of 22Hz.

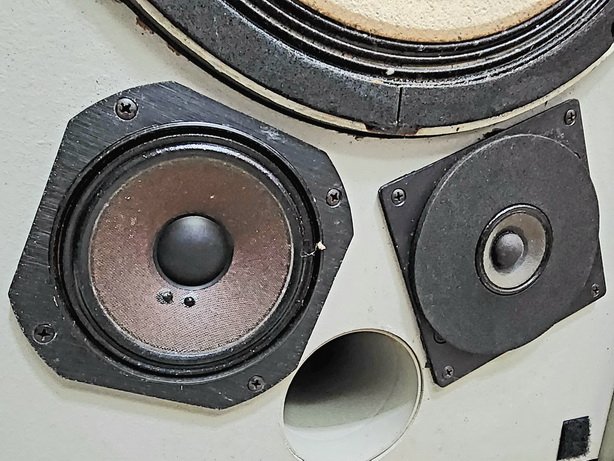

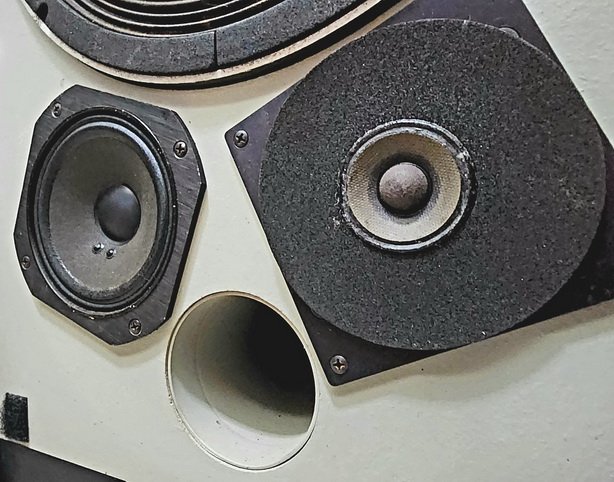

The midrange is equipped with a 13cm cone-shaped squawker LE5-10.
By driving a 15,000 gauss magnetic circuit and a 2.2 cm diameter voice coil on hard cone paper,
it achieves a smooth frequency response and a wide directivity.
For high frequencies, it is equipped with a 3.6cm cone-type tweeter LE25-2.

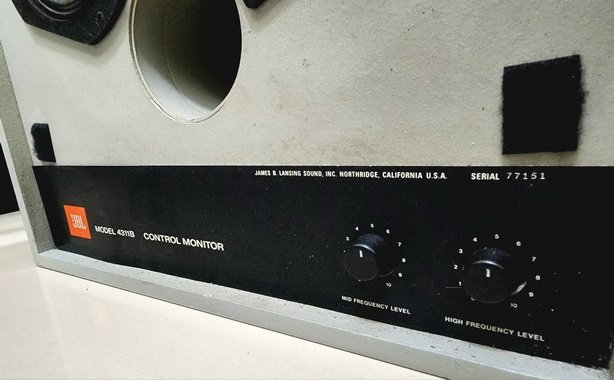

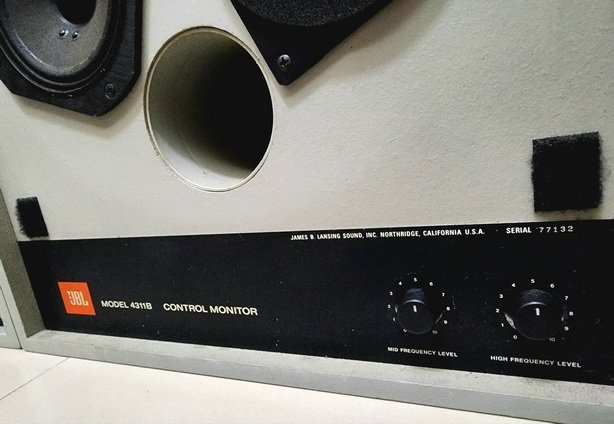

It is equipped with independent level controls for mid and high frequencies.
This level control is designed to be adjustable even with the front grille installed.

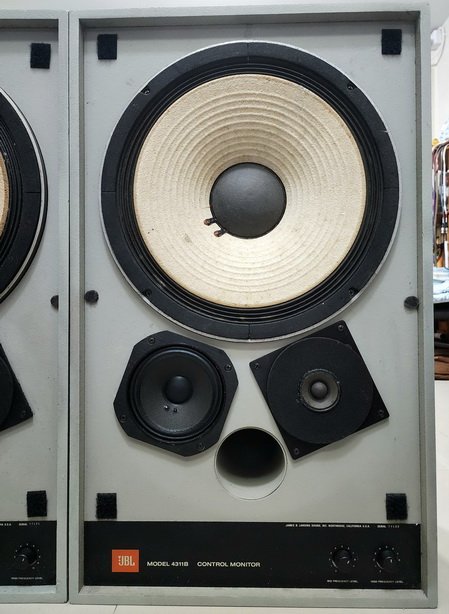

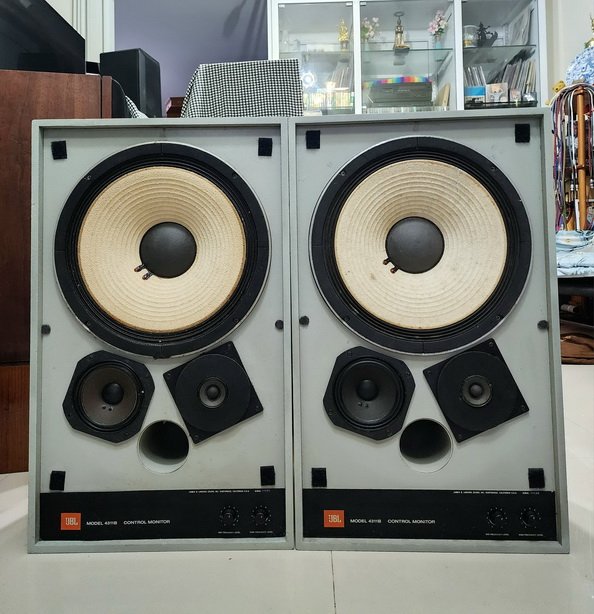

The front baffle is designed for hanging use in small studios and control rooms, and has a unit
layout with a squawker and tweeter at the bottom.

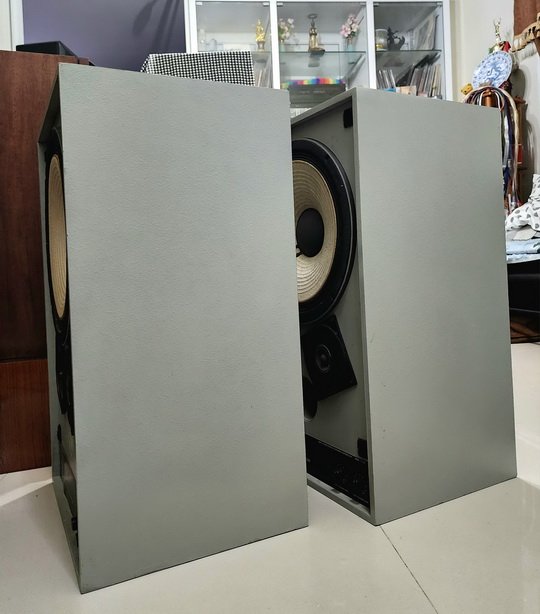

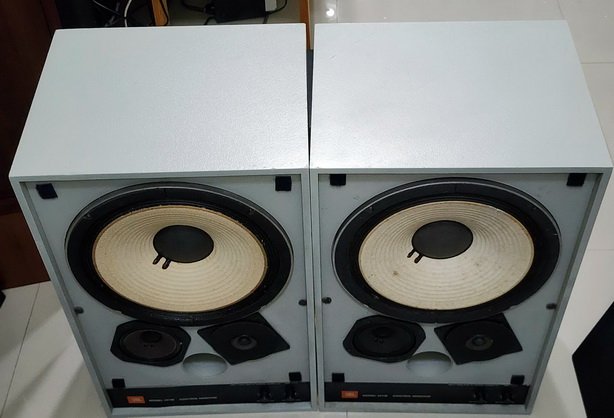

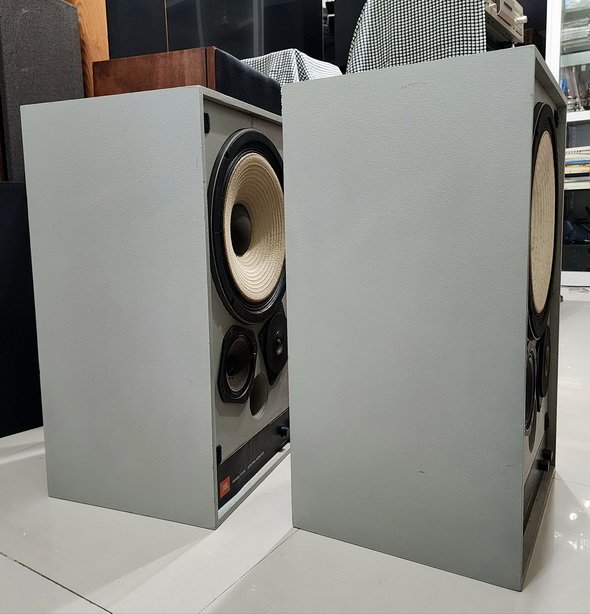

There were two types of exteriors: gray finish and walnut finish.
Units used
Model Ratings
method 3-way, 3-speaker, bass-reflex, bookshelf
unit For low range: 30cm cone type (2213H)
For midrange: 13cm cone type (LE5-10)
For high range: 3.6cm cone type (LE25-2)
Frequency Playback Band 45Hz～15kHz ±3dB
Directional characteristics 90 °
impedance 8Ω
Output sound pressure level 91dB/W/m
Allowable Input 40W(RMS)
Crossover Frequency 1.5kHz、6kHz
Enclosure volume 40L
External dimensions Width 362 x Height 597 x Depth 298 mm
weight 20kg.
